MP15A (WITH GX160)

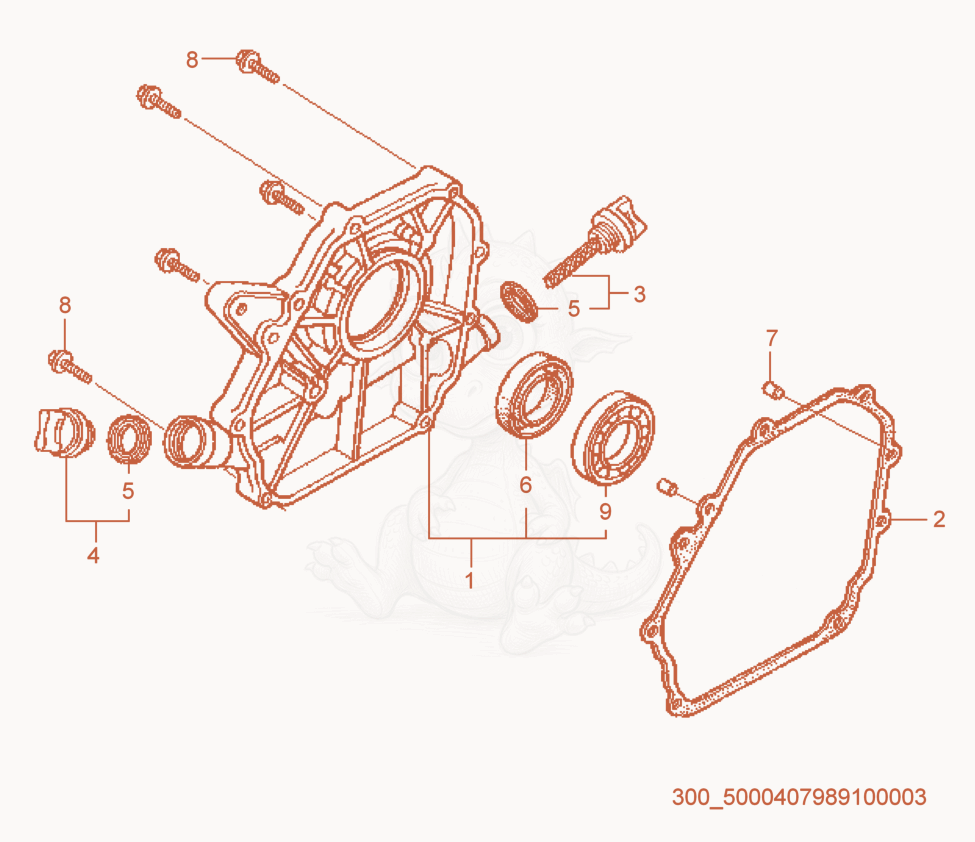

MP15A Crankcase Cover Diagram

Exploded parts diagram of the Crankcase Cover of a Wacker Neuson MP15A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000408199Not stocked
    Crankcase cover cpl.×1
  • 25000082000
    $8.84
    GASKET-CRANKCASE COVER - 5000082000×1
  • 35000408201Not stocked
    Dipstick cpl.×1
  • 45000408202Not stocked
    Oil filler cap×1
  • 55000408203Not stocked
    Oil filler gasket×2
  • 65000408196Not stocked
    Shaft seal×1
  • 75000053995
    $3.39
    PIN A8 X 14,DOWEL - 5000053995×2
  • 85000071630
    $2.07
    SCREW M8 X 32,HX.FLANGE - 5000071630×6
  • 95000053984
    $42.02
    BEARING-RADIAL BALL,6205 - 5000053984×1
