VIB. PLATE MP20-CE

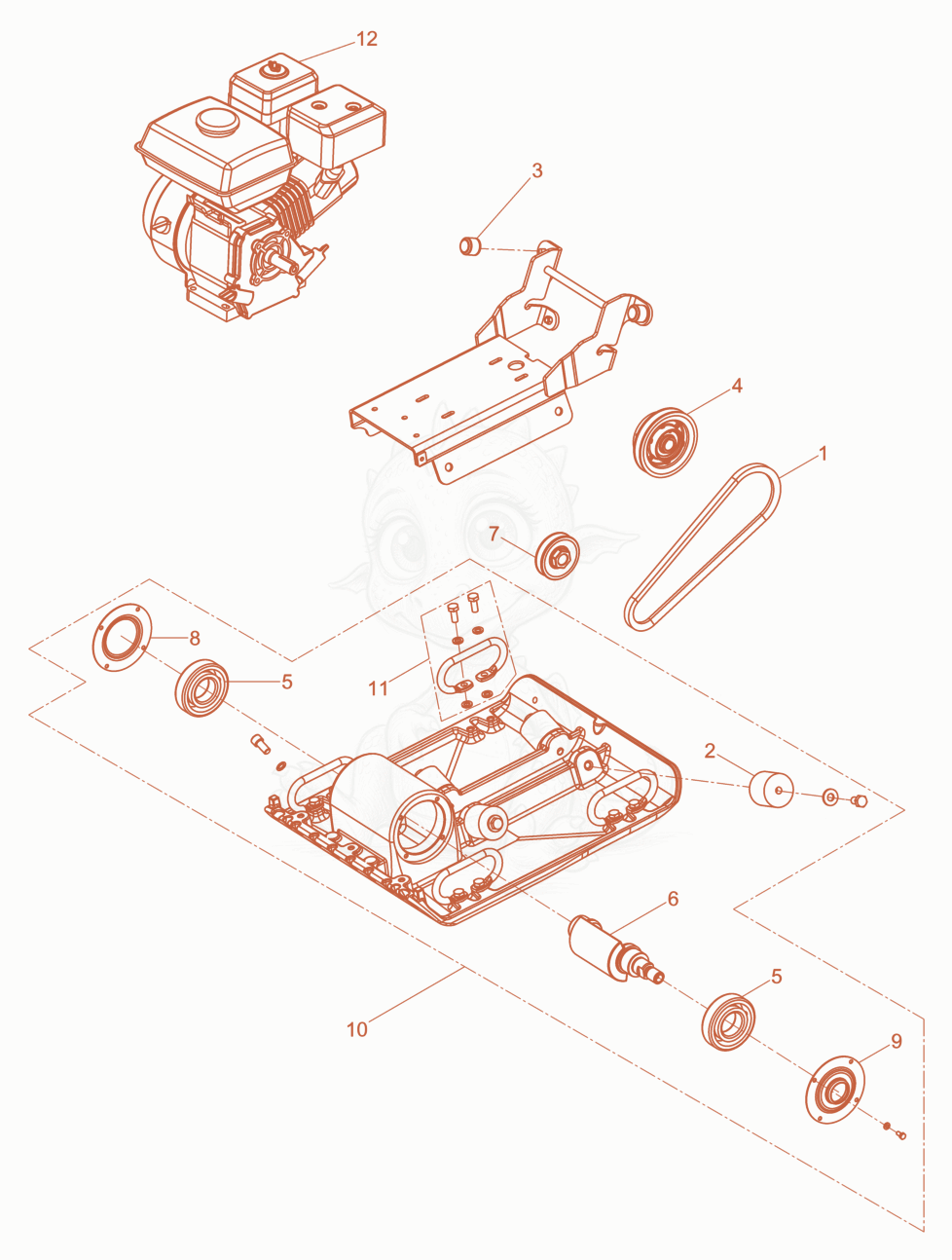

MP20 Vibration Plate cpl. Diagram

Exploded parts diagram of the Vibration Plate cpl. of a Wacker Neuson MP20, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000409281
    $23.83
    V Belt - RPF 3330 - 5000409281×1
  • 25000400506
    $26.35
    Shockmount - 5000400506×4
  • 35000401835
    $15.68
    Shockmount - 5000401835×2
  • 45000130031
    $281.87
    CLUTCH-CENTRIFUGAL - 5000130031×2
  • 55000403573
    $46.26
    Bearing-Radial Ball - 5000403573×1
  • 65000409291
    $120.20
    Exciter Shaft Machined - 5000409291×1
  • 75000403567
    $39.13
    Pulley-machined - 5000403567×1
  • 85000408263
    $11.62
    Cap end w/out hole - 5000408263×1
  • 95000409295
    $46.06
    Cap end cpl. - 5000409295×1
  • 105000409302
    $3,386.53
    Baseplate Kit (gray) - 5000409302×1
  • 115000130881
    $69.08
    HANDLE LIFTING KIT - 5000130881×4
  • 125000408409
    $790.38
    Engine Loncin G210FA-CE - 5000408409×1
