MPU29A

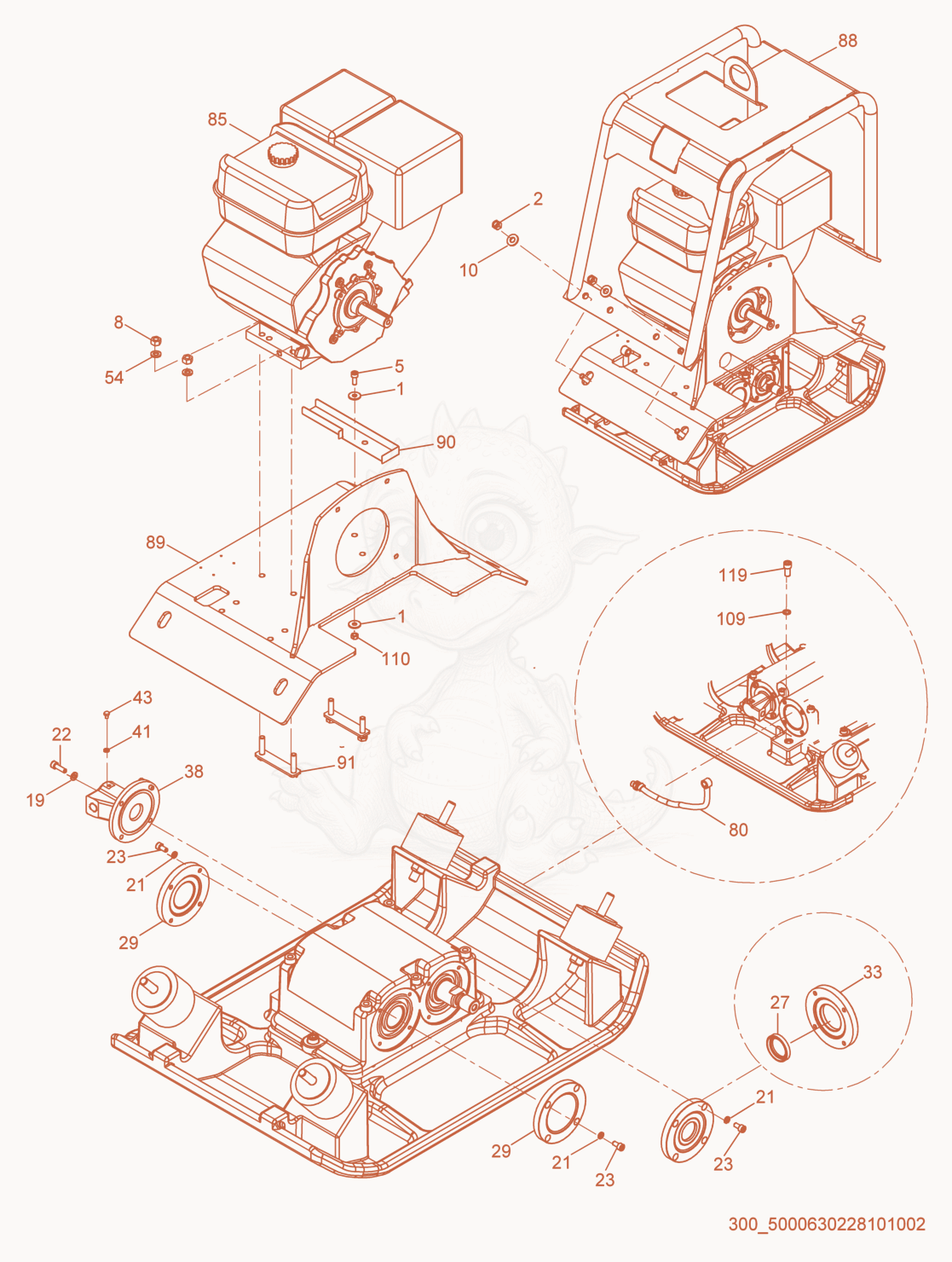

MPU29A Baseplate Diagram

Exploded parts diagram of the Baseplate of a Wacker Neuson MPU29A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×2
  • 25000010884
    $0.26
    NUT M12 8,HEX - 5000010884×4
  • 55000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×1
  • 85000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×4
  • 105000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×4
  • 195000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×4
  • 215000401000
    $0.21
    WASHER-LOCK - 5000401000×12
  • 225000011551
    $0.20
    SCREW M6 X 20 SOC.HD. - 5000011551×4
  • 235000011554
    $0.13
    SCREW M6 X 12 SOC.HD. - 5000011554×11
  • 275000088846
    $28.58
    SEAL-SHAFT 30X42X7,2B NITRILE X-0406265 - 5000088846×1
  • 295000130970
    $42.47
    END CAP W/HOLE MACHINED - 5000130970×2
  • 335000130968Not stocked
    Cover×1
  • 385000404483Not stocked
    Cylinder Cover×1
  • 415000048988
    $0.13
    SEAL-RING 4 X 8 CU - 5000048988×1
  • 435000058331
    $0.08
    SCREW M4 X 6 HX.HD. - 5000058331×1
  • 545000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×4
  • 805000404522Not stocked
    Hydraulic hose×1
  • 855000112134
    $1,452.75
    ENGINE HONDA GX240UT2X QA2 - 5000112134×1
  • 885000404376Not stocked
    Protective frame×1
  • 895000404505Not stocked
    Console×1
  • 905000404520Not stocked
    Oil drain cpl.×1
  • 915000106957
    $90.28
    PLATE-MOUNTING - 5000106957×2
  • 1095000013444
    $3.06
    SEAL-RING 12 X 18 - 5000013444×1
  • 1105000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×1
  • 1195000011530Not stocked
    Cheese head screw×1
