MS52 RAMMER,11 PL SHOE (24MM) NR

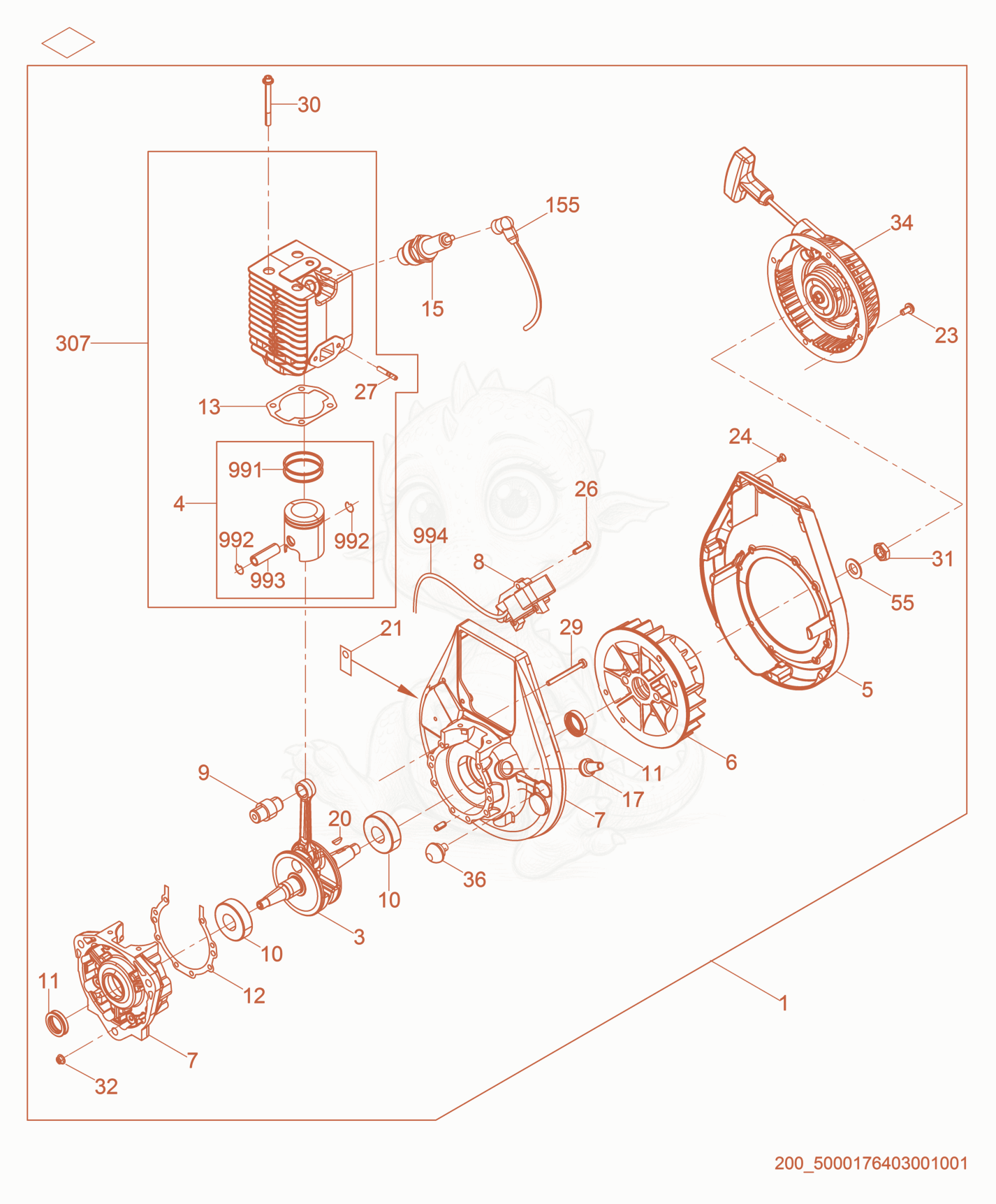

MS52 Engine-WM 80 Diagram
- ENGINE-MINI BLOCK,S/P - 5000176403×1
- Crankshaft - 5000045036×1
- PISTON COMPLETE,S/P X-5000115324 - 5000045908×1
- COVER-FAN HOUSING - 5000045037×1
- FAN-ENGINE - 5000045041×1
- 75000069706Not stockedFan housing×1
- MODULE-IGNITION X-5000103302 - 5000152419×1
- BEARING-NEEDLE,CAGE,KBK121515 - 5000034835×1
- BEARING - 5002001645×1
- SEAL-SHAFT 20X30X7TG NB X-5100006052 - 5000154699×2
- GASKET-CRANKCASE 0.25MM X-5100025322 - 5000045034×1
- X-5100025323 GASKET-CYL.HEAD 0.25MM - 5000045910×1
- Spark Plug - 5000114802×1
- Cable-Entry - 5200003079×1
- KEY-WOODRUFF 3 X 5 - 5000010388×1
- RETAINER - 5000045906×1
- screw M6x12 W/THDLK,202 - 5000153273×4
- SCREW M5X25 W/THDLK,202 - 5000153272×7
- SCREW M5X20 4.8 W/THDLK - 5000153271×3
- STUD M5 X 20 8.8 - 5000013499×2
- SCREW M5X60,TORX HD,10.9 - 5000215365×8
- SCREW M6 X 60,FLANGED SOC.HD. - 5000095917×4
- NUT M12 X 1.5 HEX,FRM B - 5000045914×1
- X-5000183750 NUT M5,HEX,FLANGED - 5000047488×8
- STARTER-REWIND - 5000046098×1
- SWITCH-PUSH BUTTON,ENGINE STOP - 5002007007×1
- WASHER B13 FLAT - 5000010620×1
- CAP-SPARK PLUG TERMINAL - 5000153125×1
- KIT-CYLINDER W/PISTON R-5000099336 - 5000176400×1
- RING-PISTON 45 X 1.5 - 5000045904×1
- RET.RING 13MM,73123,FORM A - 5000012257×2
- PIN-PISTON MOUNT - 5000012199×1
- SLEEVE-PROTECTIVE HOSE - 5000047348×1
