P31A-POWER UNIT

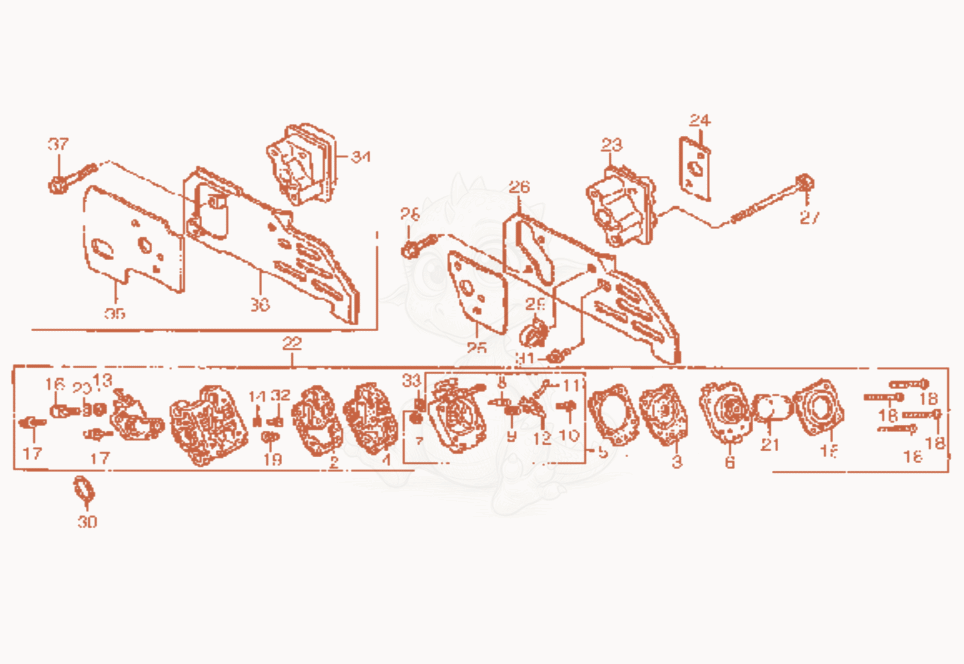

P31A Carburetor cpl. Diagram
- GASKET-METERING DIAPHRAGM - 5000157490×1
- GASKET-PUMP - 5000157491×1
- DIAPHRAGM ASSEMBLY - 5000157492×1
- DIAPHRAGM-PUMP - 5000157493×1
- BODY ASSEMBLY-PUMP - 5000157494×1
- BODY ASSEMBLY-AIR PURGE - 5000157495×1
- SCREEN-INLET - 5000157496×1
- VALVE-INTAKE NEEDLE - 5000157497×1
- SPRING-METERING LEVER - 5000157498×1
- SCREW-METERING LEVER PIN - 5000157499×1
- PIN-METERING LEVER - 5000157500×1
- LEVER-METERING - 5000157501×1
- RING-SPRING RETAINING - 5000157502×1
- O-Ring - 5000157503×1
- COVER-PRIMER PUMP - 5000157504×1
- PIN-SWIVEL - 5000157505×1
- SCREW-THROTTLE COLLAR - 5000157506×2
- SCREW-PUMP COVER - 5000157507×4
- SPRING-PUMP - 5000157508×1
- Washer - 5000157509×1
- PUMP-PRIMER - 5000157510×1
- CARBURETOR ASSEMBLY - 5000157511×1
- INSULATOR-CARBURETOR - 5000157512×1
- GASKET-INSULATOR - 5000157513×1
- GUIDE-AIR INTAKE - 5000157514×1
- BOLT-HEX (5X75) - 5000157515×2
- BOLT-FLANGE (5X22) - 5000157535×2
- CLIP-WIRE HARNESS - 5000157517×1
- O-Ring - 5000157518×1
- SCREW-WASHER (5X10) - 5000157519×1
- JET #33 - 5000157520×1
- JET #34 - 5000157521×1
- JET #35 - 5000157522×1
- FILTER-FUEL INLET - 5000157523×1
- INSULATOR-CARBURETOR - 5000157524×1
- GASKET-CARBURETOR - 5000157525×1
- GUIDE-AIR INTAKE - 5000157526×1
- BOLT-FLANGE (5X32) - 5000157527×2
