P35A Power Unit

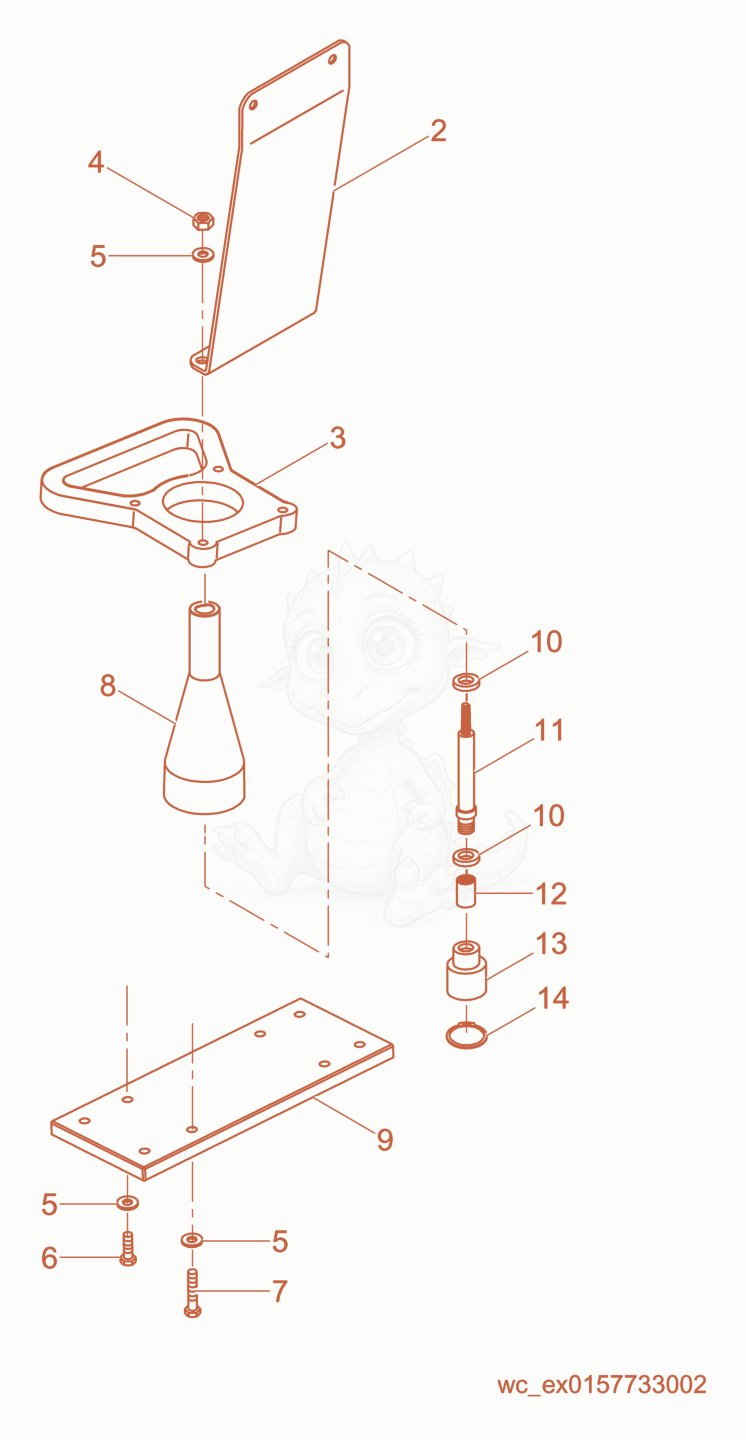

P35A Drive cpl. Diagram
- 25000172813Not stockedEngine bracket×1
- X-5000183759 HOUSING-DRIVE SHAFT, MA - 5000157771×1
- NUT-LOCK M8 HEX - 5000010367×2
- WASHER-LOCK B8 - 5000012397×6
- SCREW M8 X 20 HX.HD. - 5000012362×2
- SCREW M8 X 40 HX.HD. - 5000011341×2
- 85000160398Not stockedHousing×1
- 95000160399Not stockedMounting plate×1
- 105000160400Not stockedBearing×2
- 115000160734Not stockedDrive shaft×1
- 125000160402Not stockedCoupling×1
- X-5000183964 SPACER-BEARING - 5000160403×1
- 145000160404Not stockedRetaining ring×1
