PD3B(I)-PUMP, DIAPHRAGM

PD3B Gearbox Diagram

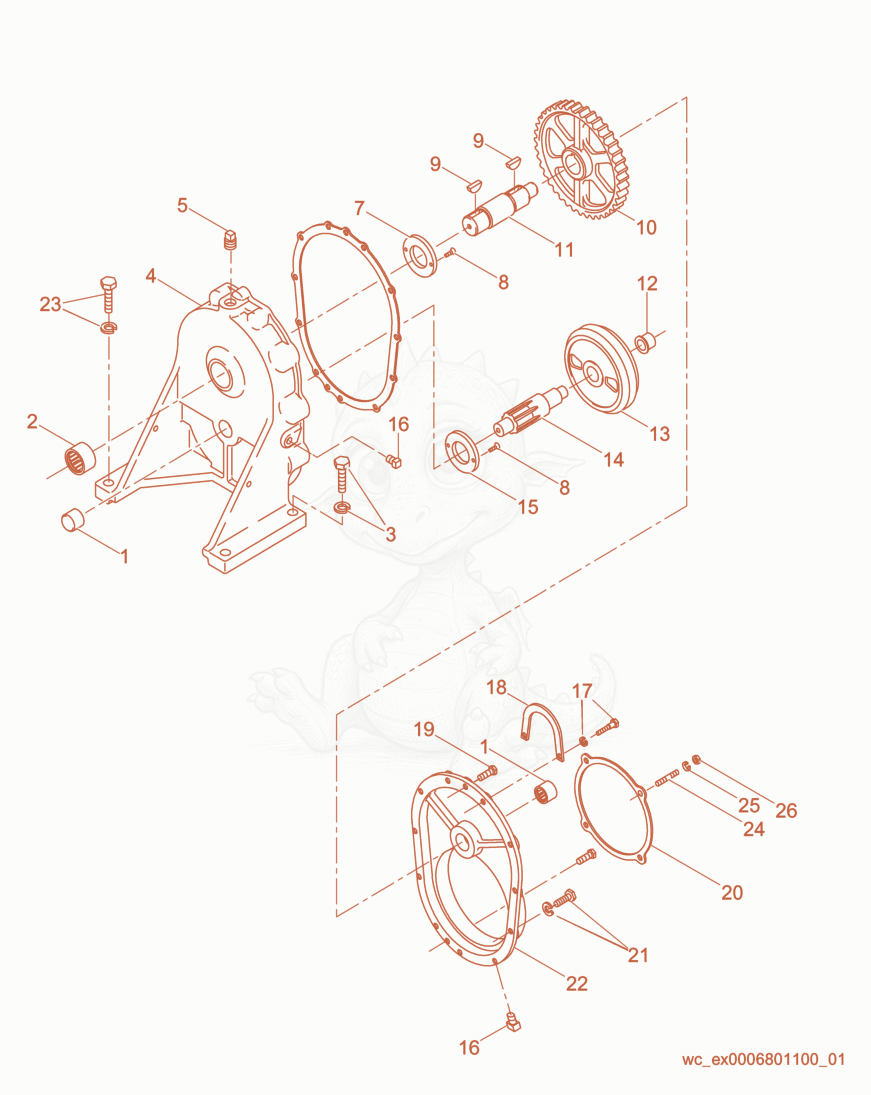

Exploded parts diagram of the Gearbox of a Wacker Neuson PD3B, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000051323Not stocked
    Bearing cup×2
  • 25000051322Not stocked
    Needle bearing×1
  • 35000025562
    $2.60
    SCREW 1/2-13 X 1-3/4,HX.HD. - 5000025562×2
  • 35000025650
    $0.50
    WASHER-LOCK 1/2,MED. - 5000025650×2
  • 45000051321
    $751.27
    GEARCASE - 5000051321×1
  • 55000051324
    $8.50
    PLUG 3/8-18,SQ.HD. - 5000051324×1
  • 75000051328Not stocked
    Thrust washer×1
  • 85000051330Not stocked
    Flat head screw×4
  • 95000051333
    $35.44
    KEY-WOODRUFF 1/4 X 7/8,#115 - 5000051333×2
  • 105000051332
    $639.50
    GEAR 79T - 5000051332×1
  • 115000051331Not stocked
    Shaft×1
  • 125000051339Not stocked
    Bushing×1
  • 135000051338
    $389.13
    GEAR 85T - 5000051338×1
  • 145000051337
    $279.18
    GEAR-PINION 11T - 5000051337×1
  • 155000051329
    $39.06
    WASHER-THRUST - 5000051329×1
  • 165002005901
    $1.95
    PLUG 1/8-27,SOC.HD.PIPE - 5002005901×2
  • 175000025650
    $0.50
    WASHER-LOCK 1/2,MED. - 5000025650×2
  • 175000051326
    $4.69
    SCREW 1/4 X 1-1/4,W/LW - 5000051326×2
  • 185000051325Not stocked
    Lifting eye hook×1
  • 195000051336
    $1.30
    PIN 1/4 X 3/4,DOWEL - 5000051336×2
  • 205000051340Not stocked
    Gasket×1
  • 215000025647
    $0.03
    WASHER-LOCK 1/4,MED. - 5000025647×9
  • 215000051335
    $0.09
    SCREW 1/4-20 X 1 GR5,HX.HD. - 5000051335×9
  • 225000051334Not stocked
    Cover×1
  • 235000025650
    $0.50
    WASHER-LOCK 1/2,MED. - 5000025650Unknown×2
  • 235000051312Not stocked
    Hexagonal head cap screw×2
  • 245000088493Not stocked
    Stud×4
  • 255000088495Not stocked
    Lock washer×4
  • 265000088494Not stocked
    Nut×4
