PDI3A(I)

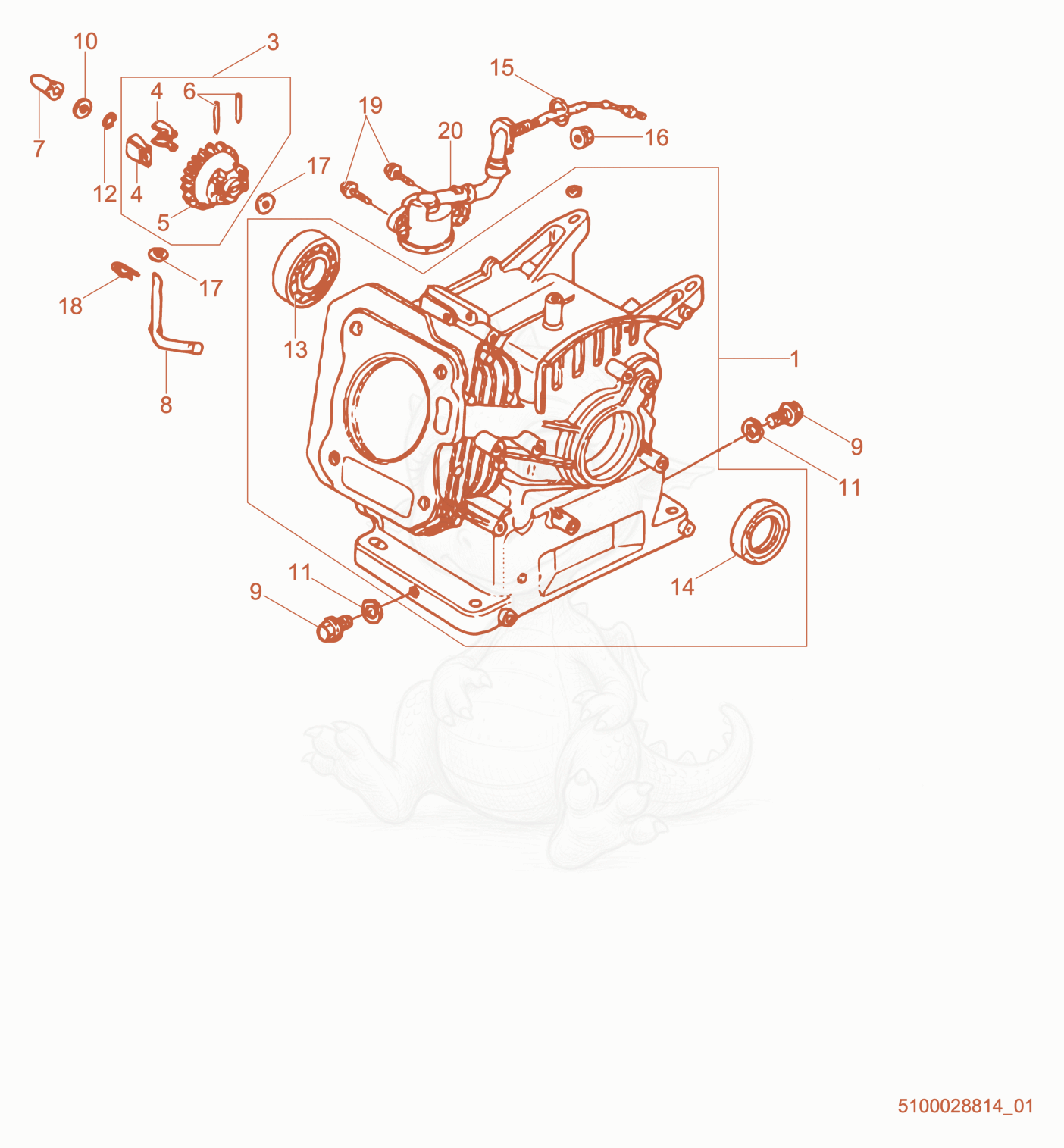

PDI3A(I) Engine Block Diagram

Exploded parts diagram of the Engine Block of a Wacker Neuson PDI3A(I), with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000209782
$293.16
Cylinder - 5000209782×1
35000076934
$20.54
GOVERNOR-COMPLETE - 5000076934×1
45000151694
$4.71
WEIGHT-GOVERNOR - 5000151694×2
55000151695
$46.52
HOLDER-WEIGHT,GOVERNOR - 5000151695×1
65000156689
$2.74
PIN-GOVERNOR WEIGHT - 5000156689×2
75000070953
$4.37
SLIDER - 5000070953×1
85000107060
$15.47
GOVERNOR ARM - 5000107060×1
95000070964
$3.65
PLUG - 5000070964×2
105000070959
$2.35
Washer - 5000070959×1
115000070963
$1.63
Washer - 5000070963×2
125000081615
$2.07
RET.RING 7.7MM,FORM C - 5000081615×1
135000070961
$45.34
BEARING-RADIAL BALL,6222 - 5000070961×1
145000070962
$12.00
SEAL-SHAFT 22 X 35 X 6,4B - 5000070962×1
155000071082
$4.75
O-RING 14 X 1.3 - 5000071082×1
165000072332
$4.18
NUT M10,HEX.FLANGE - 5000072332×1
175000071639
$0.98
WASHER 6MM,PLAIN - 5000071639×2
185000054033
$1.84
PIN - 5000054033×1
195000072333
$2.43
SCREW M6 X 12,HX.FLANGE - 5000072333×2
205000216513
$91.52
SWITCH - 5000216513×1
