PDT3A

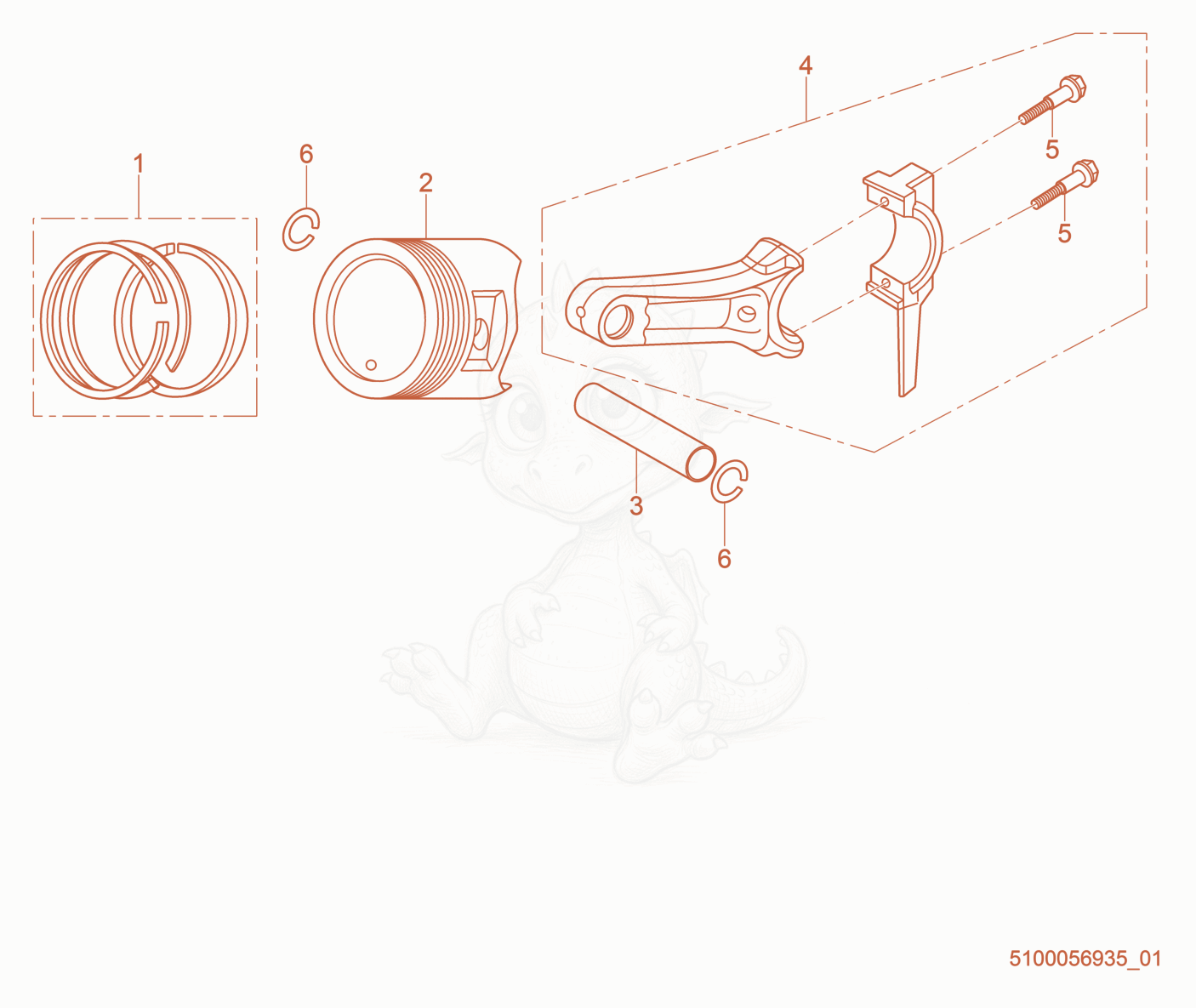

PDT3A Piston cpl. Diagram

Exploded parts diagram of the Piston cpl. of a Wacker Neuson PDT3A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100056846
    $55.56
    RING SET-PISTON (STD) - 5100056846×1
  • 15100056639
    $43.63
    RING SET-PISTON (STD) - 5100056639×1
  • 25100056870
    $45.71
    PIN-PISTON - 5100056870×1
  • 35000071008
    $8.85
    PIN-PISTON MOUNT - 5000071008×1
  • 45000209799
    $44.86
    Connecting rod - 5000209799×1
  • 55000071007
    $4.53
    SCREW M7 X 35,ACORN HD,CL.12 - 5000071007×2
  • 65000081751
    $2.01
    CLIP-PISTON PIN,13MM - 5000081751×2
