PG2A

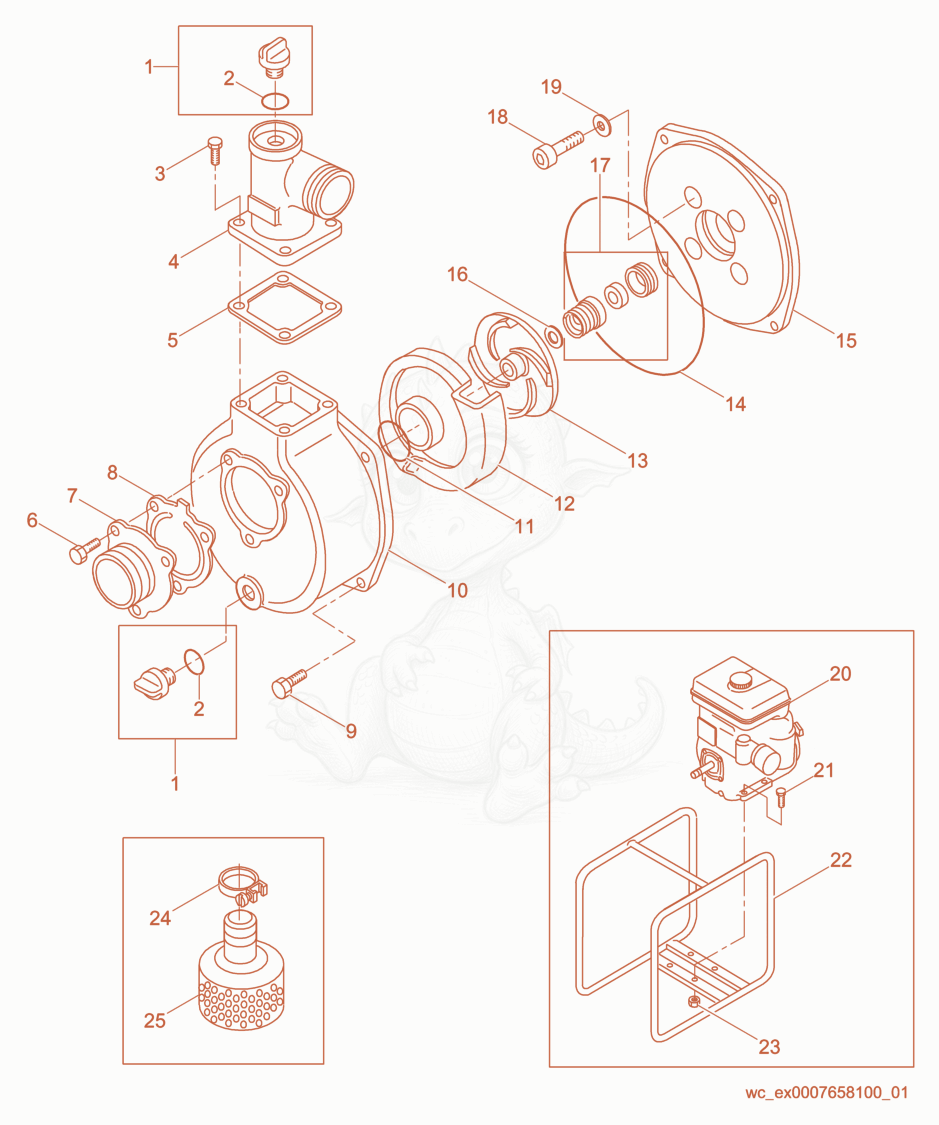

PG2A Pump Components Diagram

Exploded parts diagram of the Pump Components of a Wacker Neuson PG2A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000054956
    $8.23
    SET-DRAIN PLUG - 5000054956×2
  • 25000054958
    $1.84
    O-RING 25 X 2.8 (G-25) - 5000054958×1
  • 35000054967
    $2.52
    SCREW M8 X 25 W/LW,HX.HD. - 5000054967×4
  • 45000072997
    $65.65
    PORT-DISCHARGE,NPT THREAD - 5000072997×1
  • 55000054947
    $7.48
    PACKING-DELIVERY FLANGE - 5000054947×1
  • 65000110732
    $2.52
    SCREW M8 X 20 - 5000110732×3
  • 75000110497
    $18.82
    PORT-SUCTION - 5000110497×1
  • 85000110498
    $18.69
    GASKET-FLAPPER VALVE - 5000110498×1
  • 95000110505
    $1.10
    SCREW M8 X 22 - 5000110505×4
  • 105000110496
    $86.64
    HOUSING-PUMP CASING - 5000110496×1
  • 115000110504
    $4.81
    O-ring - 5000110504×1
  • 125000110500
    $74.38
    VOLUTE - 5000110500×1
  • 135000110501
    $47.82
    IMPELLER - 5000110501×1
  • 145000113800
    $11.01
    O-RING 1517-42.5 - 5000113800×1
  • 155000110499
    $81.39
    FLANGE-MOUNTING - 5000110499×1
  • 165000054955
    $2.52
    WASHER 0.3MM THICK,SHIM - 5000054955×3
  • 175000054960
    $68.13
    SEAL-MECHANICAL,CARBON/CERAMIC - 5000054960×1
  • 185000054969
    $2.43
    SCREW M8 X 60 SOC.HD. - 5000054969×4
  • 195000072996
    $2.45
    WASHER-PLASTIC - 5000072996×4
  • 205000086662
    $1,540.47
    ENGINE-PG-2,HONDA GX120-WKT2 - 5000086662×1
  • 215000054968
    $0.88
    SCREW M8 X 40 W/LW,HX.HD. - 5000054968×4
  • 225000154383
    $154.00
    FRAME-PG2 - 5000154383×1
  • 235000070014
    $0.88
    NUT M8,HEX - 5000070014×4
  • 245000077657
    $2.64
    CLAMP-STRAINER SECURING - 5000077657×3
  • 255000117979Not stocked
    Suction strainer×1
