PG3A

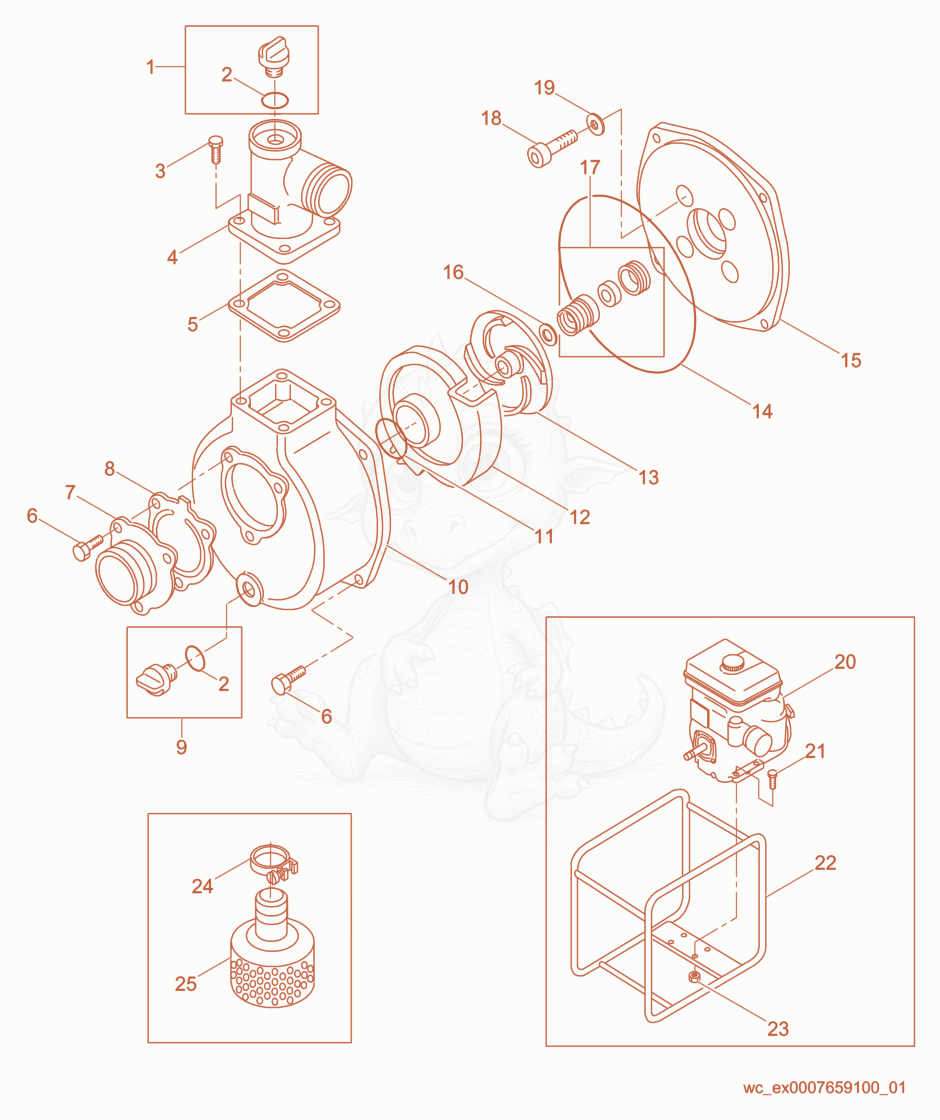

PG3A Pump Components Diagram

Exploded parts diagram of the Pump Components of a Wacker Neuson PG3A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000070000
    $12.32
    SET-DRAIN PLUG - 5000070000×1
  • 25000070002
    $1.10
    O-RING 32 X 3 (P-32) - 5000070002×1
  • 35000070010
    $1.10
    SCREW M10 X 30,HX.HD. - 5000070010×4
  • 45000110512
    $37.83
    PORT-DISCHARGE - 5000110512×1
  • 55000054992
    $3.74
    PACKING-DELIVERY FLANGE - 5000054992×1
  • 65000054966
    $1.10
    SCREW M10 X 25 W/LW,HX.HD. - 5000054966×7
  • 75000110507
    $27.38
    PORT-SUCTION - 5000110507×1
  • 85000110508
    $10.56
    GASKET-FLAPPER VALVE - 5000110508×1
  • 95000054956
    $8.23
    SET-DRAIN PLUG - 5000054956×1
  • 105000110506
    $109.52
    HOUSING-PUMP CASING - 5000110506×1
  • 115000110515
    $4.81
    O-ring - 5000110515×1
  • 125000110510
    $96.23
    VOLUTE - 5000110510×1
  • 135000110511
    $55.75
    IMPELLER - 5000110511×1
  • 145000113801
    $13.72
    O-RING 1517-46.5 - 5000113801×1
  • 155000110509
    $147.72
    FLANGE-MOUNTING - 5000110509×1
  • 165000054999
    $1.10
    WASHER 0.3MM THICK,SHIM - 5000054999×3
  • 175000070004
    $71.78
    SEAL-MECHANICAL - 5000070004×1
  • 185000054969
    $2.43
    SCREW M8 X 60 SOC.HD. - 5000054969×4
  • 195000072996
    $2.45
    WASHER-PLASTIC - 5000072996×4
  • 205000086663Not stocked
    Honda engine×1
  • 215000054968
    $0.88
    SCREW M8 X 40 W/LW,HX.HD. - 5000054968×4
  • 225000154384
    $188.22
    FRAME-PG3 - 5000154384×1
  • 235000070014
    $0.88
    NUT M8,HEX - 5000070014×4
  • 245000077657
    $2.64
    CLAMP-STRAINER SECURING - 5000077657×3
  • 255000117980Not stocked
    Suction strainer×1
