PS2 1503 Sub. Pump, 220V/60hz, 2hp, 6.1A

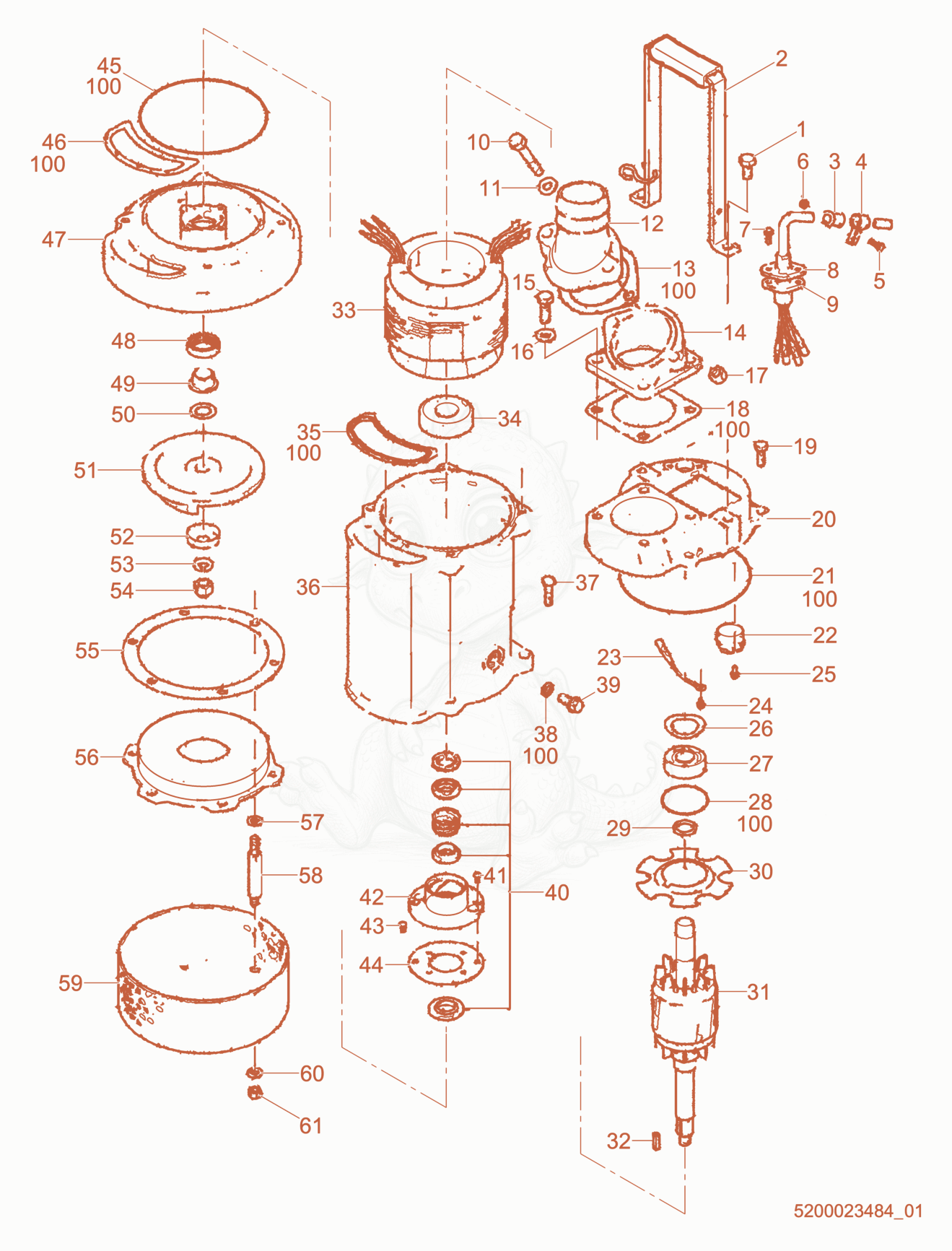

PS21503 Pump Components Diagram
- 15200023019Not stockedBolt×2
- 25200023020Not stockedLifting handle×1
- sleeve - 5000150454×1
- CLIP-CABLE - 5000150449×1
- BOLT-M5 X 15 - 5000150713×1
- NUT-M5 - 5000150743×1
- BOLT-M5 X 15 - 5000150741×2
- cover - 5000150418×1
- CABLE-POWER w/GLAND 50' - 5000150405×1
- BOLT-M10 X 45 - 5000150731×4
- WASHER-PLAIN,M10 - 5000150761×4
- 125200023022Not stockedHose coupling×1
- 135200023030Not stockedGasket×1
- 145200023029Not stockedAttachment×1
- 155200023021Not stockedBolt×2
- WASHER-PLAIN,M10 - 5000150761×2
- NUT-M12 - 5000176969×2
- GASKET - 5000150674×1
- BOLT W/WASHER - 5000162524×4
- 205200023035Not stockedHousing×1
- O-ring - 5000150698×1
- SWITCH-THERMAL, 220V 60Hz - 5000150569×1
- WIRE-GROUNDING - 5000152410×1
- SCREW-M4 X 6 - 5000150779×1
- SCREW-M4 X 12 - 5000150783×2
- WASHER-SPRING - 5000150772×1
- 275200025249Not stockedBall bearing×1
- O-ring - 5000150704×1
- ring - 5000150622×1
- PLATE-PROTECTIVE - 5000162526×1
- ROTOR - 5000150585×1
- KEY-IMPELLER - 5100028179×1
- STATOR 220V-60Hz - 5000163024×1
- BEARING-BALL - 5000150559×1
- GASKET - 5000150690×1
- FRAME-MOTOR - 5100028210×1
- BOLT W/WASHER - 5000162524×4
- GASKET - 5000150676×1
- PLUG-OIL - 5000150536×1
- SEAL-MECHANICAL - 5000150503×1
- SCREW-M5 X 6 - 5000150776×2
- PLATE-OIL LIFTER - 5000150518×1
- SCREW-M5 X 6 - 5100028211×4
- PLATE-RETAINING - 5000150521×1
- O-ring - 5000150697×1
- GASKET - 5000150686×1
- VOLUTE - 5000150464×1
- SEAL-OIL - 5000150509×1
- sleeve - 5000150652×1
- shim - 5000150538×1
- IMPELLER,2 1.5 60Hz - 5000150473×1
- COVER-THREAD - 5000150544×1
- WASHER-LOCK - 5000150852×1
- NUT-ACORN - 5000150754×1
- GASKET - 5000150668×1
- COVER-SUCTION 2" 1.5/2.2 - 5000150487×1
- WASHER-PLAIN,M8 - 5000150760×3
- BOLT-STUD - 5000150789×3
- STRAINER - 5000150498×1
- WASHER-PLAIN,M8 - 5000150760×3
- NUT, M8 - 5000150746×3
- SET-GASKET & O-RING - 5100028212×1
