PS2 750-PUMP SUB. 220V/60HZ

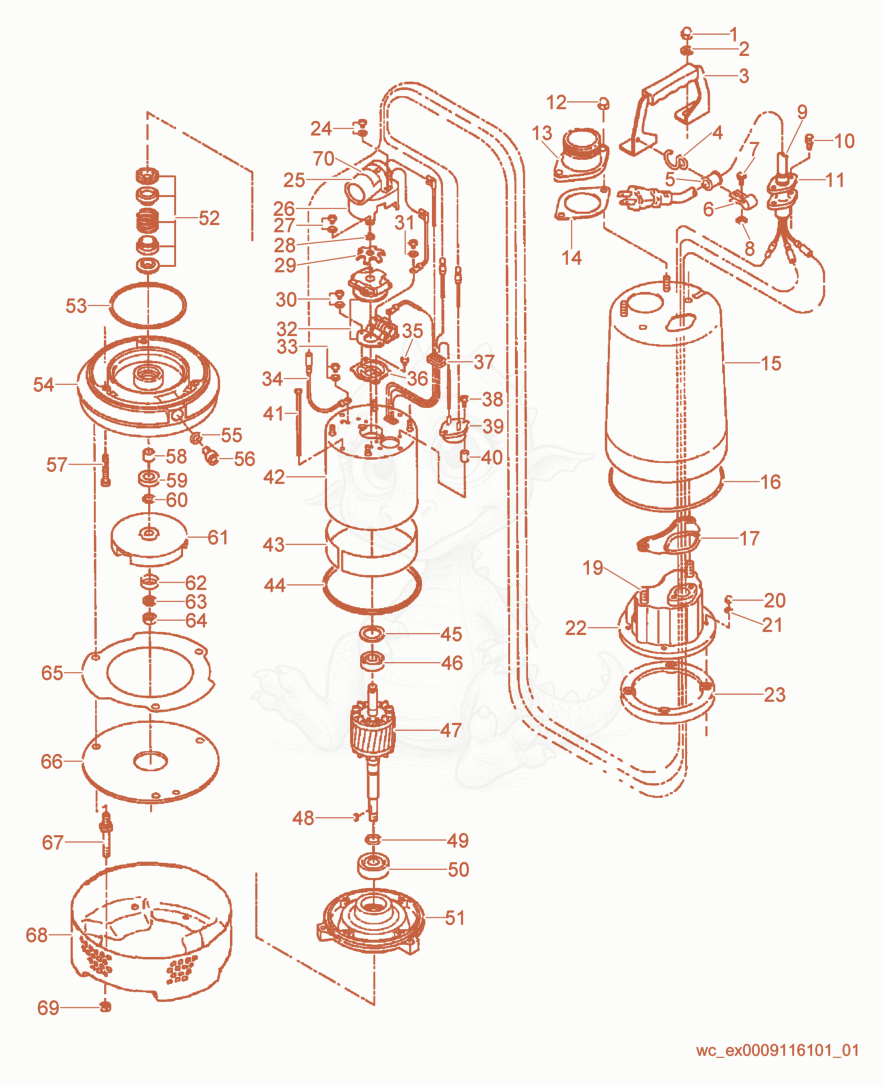

PS2750 Pump Components Diagram
- 5000150812$91.49GASKET-ORING SET - 5000150812×1
- 5000151035$6.24LABEL-WARNING - 5000151035×1
- NUT-ACORN - 5000150753×2
- WASHER-PLAIN,M8 - 5000150760×2
- HANDLE-LIFTING - 5000150640×1
- hook - 5000150457×1
- sleeve - 5000150454×1
- CLIP-CABLE - 5000150449×1
- BOLT-M5 X 15 - 5000150713×1
- NUT-M5 - 5000150750×1
- CABLE-POWER - 5000150398×1
- BOLT-M5 X 15 - 5000150741×2
- cover - 5000150418×1
- NUT-ACORN - 5000150753×2
- COUPLING-HOSE - 5000150531×1
- GASKET - 5000150672×1
- COVER-9 OUTER - 5000150635×1
- O-ring - 5000150700×1
- GASKET - 5000150682×1
- BOLT-STUD,M8 X 25 - 5000150787×2
- NUT-ACORN,M5 - 5000150751×4
- WASHER-PLAIN,M5 - 5000150758×4
- HOUSING-COVER - 5000163015×1
- GASKET - 5000150678×1
- SCREW-M4 X 6 - 5000150782×1
- 255000162707Not stockedCapacitor×1
- cover - 5000150662×1
- SCREW-M4 X 6 - 5000150782×2
- pin - 5000150793×1
- WASHER-SPRING - 5000150770×1
- SCREW-M4 X 6 - 5000150782×2
- SCREW-M3 X 6 - 5000150778×2
- SWITCH-CENTRIFUGAL - 5000150660×1
- SCREW-M4 X 6 - 5000150779×1
- WIRE-GROUNDING - 5000150434×1
- SCREW-M4 X 6 - 5000150782×2
- COVER-BEARING - 5000150624×1
- BUSHING - 5000150459×1
- SCREW-M4 X 16 - 5000150780×2
- SWITCH-THERMAL - 5000150573×1
- SPACER - 5000150647×2
- SCREW-M5 X 127 - 5000150781×4
- STATOR-220V - 5000163013×1
- ring - 5000150649×1
- GASKET - 5000150675×1
- WASHER-SPRING - 5000150766×1
- BEARING-BALL - 5000150555×1
- ROTOR - 5000150583×1
- KEY - 5000150800×1
- ring - 5000150620×1
- BEARING-BALL - 5000150563×1
- HOUSING-BEARING - 5000150616×1
- SEAL-MECHANICAL - 5000150504×1
- O-ring - 5000150693×1
- VOLUTE - 5000150469×1
- GASKET - 5000150676×1
- PLUG-OIL - 5000150535×1
- BOLT-STUD - 5000150734×3
- Sleeve - 5000150646×1
- SEAL-OIL - 5000150508×1
- shim - 5000150537×1
- Impeller - 5000150476×1
- COVER-THREAD - 5000150543×1
- WASHER-LOCK,M10 - 5000150764×1
- NUT-M10 - 5000150747×1
- GASKET - 5000150670×1
- COVER-SUCTION - 5000150493×1
- BOLT-STUD,M8 X 65 - 5000150792×3
- STRAINER - 5000150500×1
- NUT-M8 - 5000150745×3
- SPACER-CAPACITOR - 5000162708×1
