PS3-2203

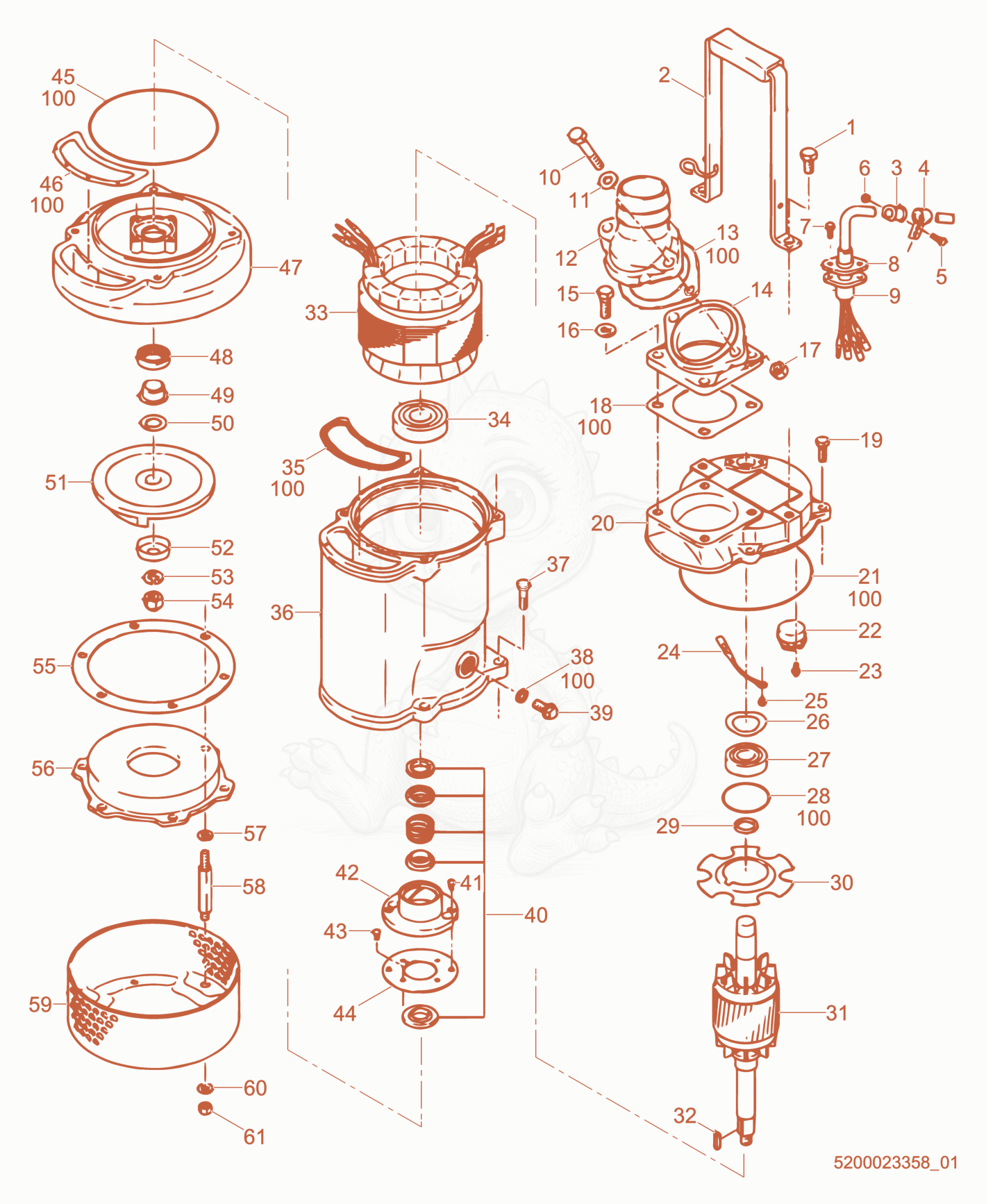

PS32203 Pump Components Diagram
- BOLT-M10 X 20 - 5000150726×2
- HANDLE-LIFTING - 5100028654×1
- SPACER - 5000150456×1
- CLIP-CABLE - 5000150449×1
- BOLT-M5 X 15 - 5000150713×1
- NUT-M5 - 5000150743×1
- BOLT-M5 X 15 - 5000150741×1
- cover - 5000150418×1
- CABLE-POWER - 5100028655×1
- BOLT-M10 X 45 - 5000150731×2
- WASHER-PLAIN,M10 - 5000150761×2
- 125200023026Not stockedBarbed hose coupling×1
- 135200023030Not stockedGasket×1
- 145200023029Not stockedAttachment×1
- 155200023021Not stockedBolt×4
- WASHER-PLAIN,M10 - 5100028656×4
- NUT-M12 - 5000176969×2
- GASKET - 5000150674×1
- BOLT W/WASHER - 5000162524×4
- HOUSING-COVER - 5000150550×1
- O-ring - 5000150698×1
- SWITCH-THERMAL, 400/440V 50/60Hz - 5000150577×1
- WIRE-GROUNDING - 5000152410×1
- SCREW-M4 X 6 - 5000150779×1
- SCREW-M4 X 12 - 5000150783×2
- WASHER-SPRING - 5000150772×1
- 275200025249Not stockedBall bearing×1
- O-ring - 5000150704×1
- ring - 5000150622×1
- PLATE-PROTECTIVE - 5000162526×1
- 315100077028Not stockedRotor×1
- KEY-IMPELLER - 5100028179×1
- 335100077029Not stockedSTATOR 400/440V-50/60Hz×1
- BEARING-BALL - 5000150559×1
- GASKET - 5000150690×1
- HOUSING-MOTOR - 5000162525×1
- BOLT W/WASHER - 5000162524×4
- GASKET - 5000150676×1
- PLUG-OIL - 5000150536×1
- SEAL-MECHANICAL - 5000150503×1
- SCREW-M5 X 6 - 5000150776×2
- PLATE-OIL LIFTER - 5000150518×1
- SCREW-M5 X 6 - 5100028211×4
- PLATE-RETAINING - 5000150521×1
- O-ring - 5000150697×1
- GASKET - 5000150686×1
- VOLUTE - 5000150464×1
- SEAL-OIL - 5000150509×1
- sleeve - 5000150652×1
- shim - 5000150538×1
- IMPELLER-3in 2.2 50Hz - 5000150470×1
- COVER-THREAD - 5000150544×1
- WASHER-LOCK - 5000150852×1
- NUT-ACORN - 5000150754×1
- GASKET - 5000150668×1
- COVER-SUCTION 3in 1.5/2.2 - 5000150488×1
- WASHER-PLAIN,M8 - 5000150760×3
- BOLT-STUD - 5000150789×3
- STRAINER - 5000150498×3
- WASHER-PLAIN,M8 - 5000150760×3
- NUT, M8 - 5000150746×3
- SET-GASKET & O-RING - 5100028212×1
