PS4 7503HF-PUMP SUB. 220V/60HZ

PS47503HF Pump Components Diagram

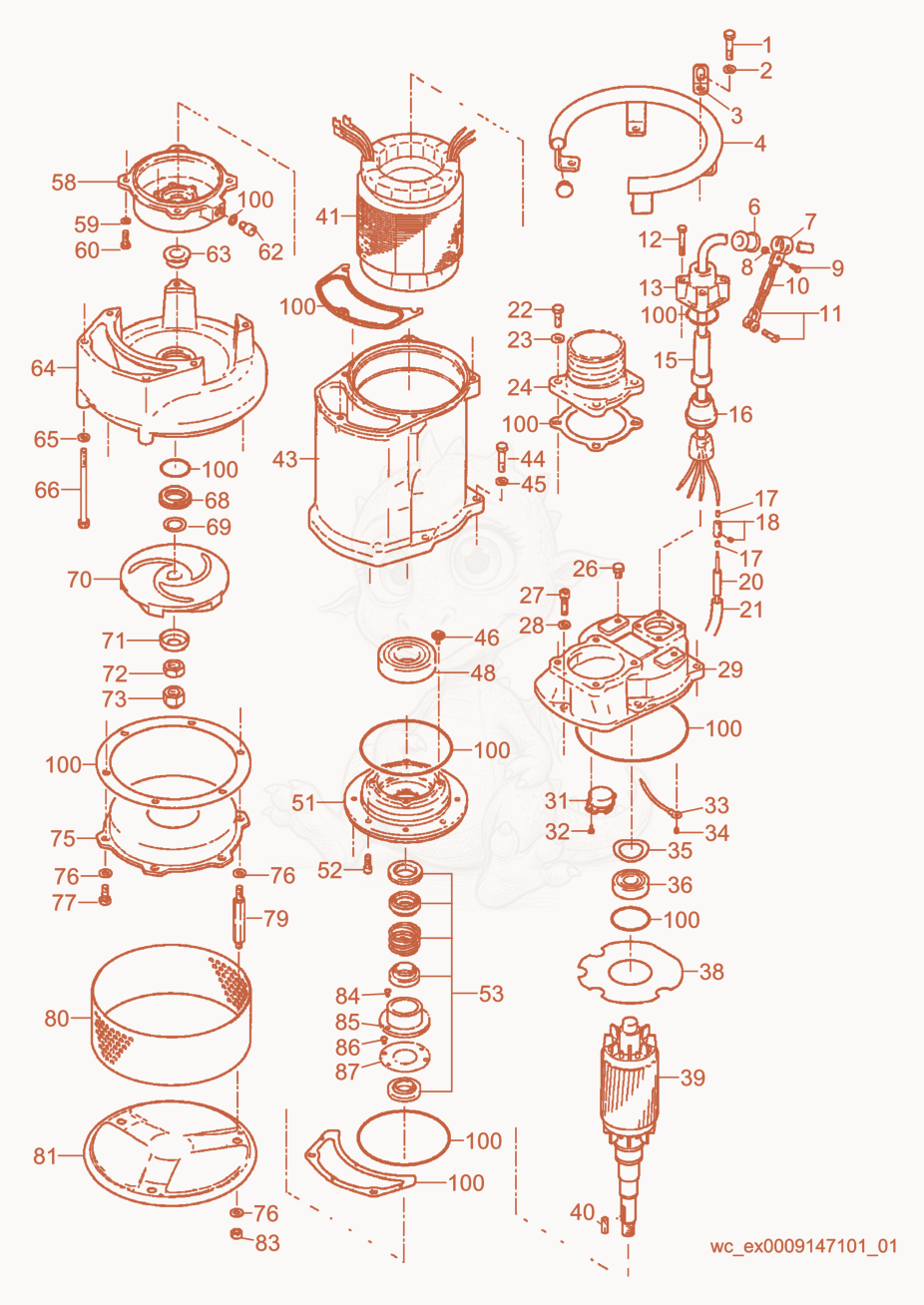

Exploded parts diagram of the Pump Components of a Wacker Neuson PS47503HF, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

5000152282
$5.63
PLATE-WARNING - 5000152282×1
15000150731
$5.05
BOLT-M10 X 45 - 5000150731×4
25000150764
$1.03
WASHER-LOCK,M10 - 5000150764×4
35000150645
$14.69
BRACKET - 5000150645×1
45000162542Not stocked
Handle×1
55000150409
$1,972.15
CABLE-POWER 60Hz 50' - 5000150409×1
65000150452
$2.85
sleeve - 5000150452×1
75000150450
$9.05
CLIP-CABLE - 5000150450×1
85000150744
$0.65
NUT-M6 - 5000150744×1
95000150715
$1.03
BOLT-M6 X 15 - 5000150715×1
105000150665
$3.82
chain - 5000150665×1
115000150458
$5.69
hook - 5000150458×1
125000150722
$4.02
BOLT-M8 X 50 - 5000150722×4
135000150423
$99.79
CASING-CABLE - 5000150423×1
155000150422
$25.87
BUSHING-CORD, NON-CE - 5000150422×1
165000150427
$31.59
cover - 5000150427×1
175000150820
$1.43
TERMINAL POST - 5000150820×8
185000150428
$12.55
terminal-splice - 5000150428×4
205000150412
$33.50
TUBE-HEAT SHRINK - 5000150412×1
215000150415
$36.21
TUBE-HEAT SHRINK - 5000150415×1
225000150728
$4.53
BOLT-M10 X 30 - 5000150728×4
235000150761
$0.65
WASHER-PLAIN,M10 - 5000150761×4
245000150529
$323.13
COUPLING-HOSE - 5000150529×1
265000150725
$4.02
BOLT-M10 X 15 - 5000150725×2
275000150737
$12.03
BOLT-HEX,SOCKET - 5000150737×1
285000150764
$1.03
WASHER-LOCK,M10 - 5000150764×1
295000162534
$1,042.61
HOUSING-MOTOR - 5000162534×1
315000163031
$670.46
SWITCH-TERMINAL, 220V 60Hz - 5000163031×1
325000150783
$0.90
SCREW-M4 X 12 - 5000150783×2
335000150448
$32.73
WIRE-GROUNDING - 5000150448×1
345000150779
$1.03
SCREW-M4 X 6 - 5000150779×1
355000150769
$6.08
WASHER-SPRING - 5000150769×1
365000150559
$42.03
BEARING-BALL - 5000150559×1
385000162537
$125.95
PLATE-PROTECTIVE - 5000162537×1
395000162544Not stocked
Rotor×1
405000150802
$30.49
KEY - 5000150802×1
415000163032
$2,770.09
Stator - 5000163032×1
435000162546Not stocked
Motor housing×1
445000150731
$5.05
BOLT-M10 X 45 - 5000150731×1
455000150764
$1.03
WASHER-LOCK,M10 - 5000150764×4
465000162547Not stocked
Bolt w/washer×4
485000150562
$102.05
BEARING-BALL - 5000150562×1
515000150617
$500.16
HOUSING-BEARING - 5000150617×1
525000150735
$2.72
SCREW-HEX,SOCKET - 5000150735×4
535000150507
$881.58
SEAL-MECHANICAL - 5000150507×1
585000150512
$264.57
HOUSING-OIL - 5000150512×1
595000150763
$0.65
WASHER-LOCK,M8 - 5000150763×4
605000150719
$2.72
BOLT-M8 X 25 - 5000150719×4
625000150885
$13.08
PLUG-OIL - 5000150885×1
635000150648
$129.34
sleeve - 5000150648×1
645000150465
$286.10
VOLUTE - 5000150465×1
655000150764
$1.03
WASHER-LOCK,M10 - 5000150764×2
665000150742
$23.67
BOLT-M10 X 150 - 5000150742×2
685000150511
$165.56
RING-SEALING - 5000150511×1
695000150540
$4.27
shim - 5000150540×1
705000150479
$573.82
IMPELLER,6 7.5 60Hz - 5000150479×1
715000150542
$12.07
COVER-THREAD - 5000150542×1
725000150749
$18.37
NUT-M20 - 5000150749×1
735000150756
$23.93
NUT-ACORN,M20 - 5000150756×1
755000150492
$352.90
COVER-SUCTION 6" 7.5 11 - 5000150492×1
765000150761
$0.65
WASHER-PLAIN,M10 - 5000150761×9
775000150727
$4.02
BOLT-M10 X 25 - 5000150727×3
795000150786
$23.28
BOLT-STUD - 5000150786×3
805000150494
$48.76
STRAINER 6" 7.5 11 - 5000150494×1
815000150545
$79.67
plate - 5000150545×1
835000150747
$0.52
NUT-M10 - 5000150747×3
845000150776
$0.52
SCREW-M5 X 6 - 5000150776×2
855000150516
$13.88
PLATE-OIL LIFTER - 5000150516×1
865000150775
$0.65
screw - 5000150775×6
875000150519
$16.90
PLATE-RETAINING - 5000150519×1
1005000163027
$133.90
GASKET/O-RING SET - 5000163027×1
