PS4 7503HH-PUMP SUB. 575V/60HZ

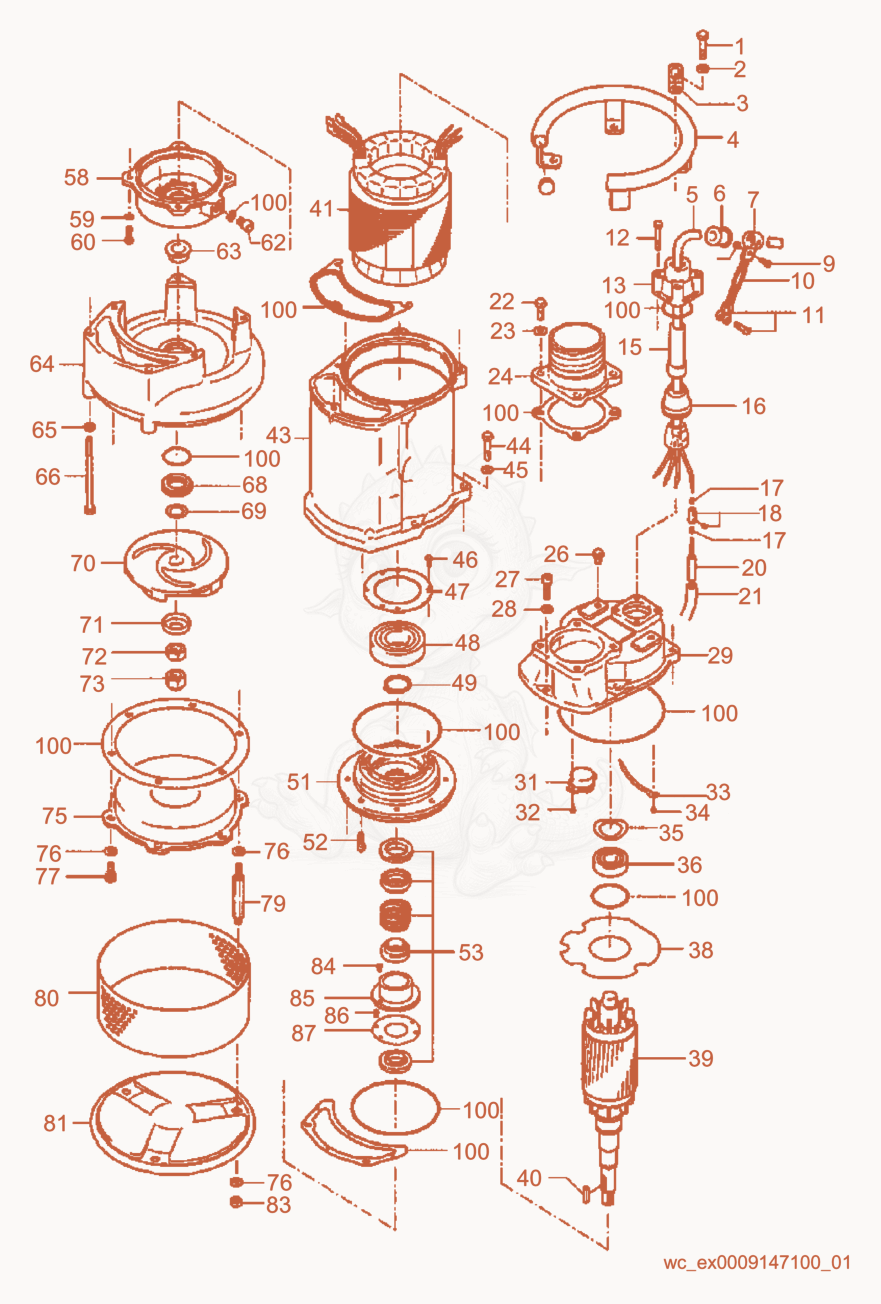

PS47503HH Pump Components Diagram
- 5000150809$119.60GASKET-ORING SET - 5000150809×1
- 5000151080Not stockedPuller×1
- 5000152282$5.63PLATE-WARNING - 5000152282×1
- BOLT-M10 X 45 - 5000150731×4
- WASHER-LOCK,M10 - 5000150764×4
- BRACKET - 5000150645×1
- handle-lifting - 5000150643×1
- CABLE-POWER 60Hz 50' - 5000150409×1
- sleeve - 5000150452×1
- CLIP-CABLE - 5000150450×1
- NUT-M6 - 5000150744×1
- BOLT-M6 X 15 - 5000150715×1
- chain - 5000150665×1
- hook - 5000150458×1
- BOLT-M8 X 50 - 5000150722×4
- CASING-CABLE - 5000150423×1
- 145000150692Not stockedO-Ring×1
- BUSHING-CORD, NON-CE - 5000150422×1
- cover - 5000150427×1
- 175000150429Not stockedTerminal post×4
- terminal-splice - 5000150428×4
- 195000150429Not stockedTerminal post×4
- TUBE-HEAT SHRINK - 5000150412×1
- TUBE-HEAT SHRINK - 5000150415×1
- BOLT-M10 X 30 - 5000150728×4
- WASHER-PLAIN,M10 - 5000150761×4
- COUPLING-HOSE - 5000150529×1
- GASKET - 5000150673×1
- BOLT-M10 X 15 - 5000150725×2
- BOLT-HEX,SOCKET - 5000150737×1
- WASHER-LOCK,M10 - 5000150764×1
- HOUSING-COVER - 5000150547×1
- O-ring - 5000150707×1
- SWITCH-THERMAL - 5000150570×1
- SCREW-M4 X 12 - 5000150783×2
- WIRE-GROUNDING - 5000150448×1
- SCREW-M4 X 6 - 5000150779×1
- WASHER-SPRING - 5000150769×1
- BEARING-BALL - 5000150559×1
- 375000150699Not stockedO-Ring×1
- PLATE-LEAD WIRE - 5000150614×1
- ROTOR - 5000150589×1
- KEY - 5000150802×1
- Stator - 5000150609×1
- GASKET - 5000150688×1
- HOUSING-MOTOR - 5000150629×1
- Housing Motor 5000150631×4
- WASHER-LOCK,M10 - 5000150764×4
- BOLT-M6 X 12 - 5000150714×4
- COVER-BEARING - 5000150627×1
- BEARING-BALL - 5000150562×1
- RING-LOCKING - 5000150799×1
- O-ring - 5000150703×1
- HOUSING-BEARING - 5000150617×1
- SCREW-HEX,SOCKET - 5000150735×4
- SEAL-MECHANICAL - 5000150507×1
- PLATE-OIL LIFTER - 5000150516×1
- PLATE-RETAINING - 5000150519×1
- screw - 5000150775×6
- SCREW-M5 X 6 - 5000150776×2
- O-ring - 5000150703×1
- Gasket - 5000150687×1
- HOUSING-OIL - 5000150512×1
- WASHER-LOCK,M8 - 5000150763×4
- BOLT-M8 X 25 - 5000150719×4
- BRACKET - 5000150644×1
- PLUG-OIL - 5000150885×1
- sleeve - 5000150648×1
- VOLUTE - 5000150465×1
- WASHER-LOCK,M10 - 5000150764×2
- BOLT-M10 X 150 - 5000150742×2
- O-ring - 5000150705×1
- RING-SEALING - 5000150511×1
- shim - 5000150540×1
- IMPELLER-4 7.5-60Hz - 5000150480×1
- COVER-THREAD - 5000150542×1
- NUT-M20 - 5000150749×1
- NUT-ACORN,M20 - 5000150756×1
- GASKET - 5000150669×1
- COVER-SUCTION, 4" 7.5/11 - 5000150486×1
- WASHER-PLAIN,M10 - 5000150761×3
- BOLT-M10 X 25 - 5000150727×3
- WASHER-PLAIN,M10 - 5000150761×3
- BOLT-STUD - 5000150786×3
- STRAINER 4" 7.5/11 - 5000150499×1
- plate - 5000150545×1
- WASHER-PLAIN,M10 - 5000150761×3
- NUT-M10 - 5000150747×3
