PSTF2 400

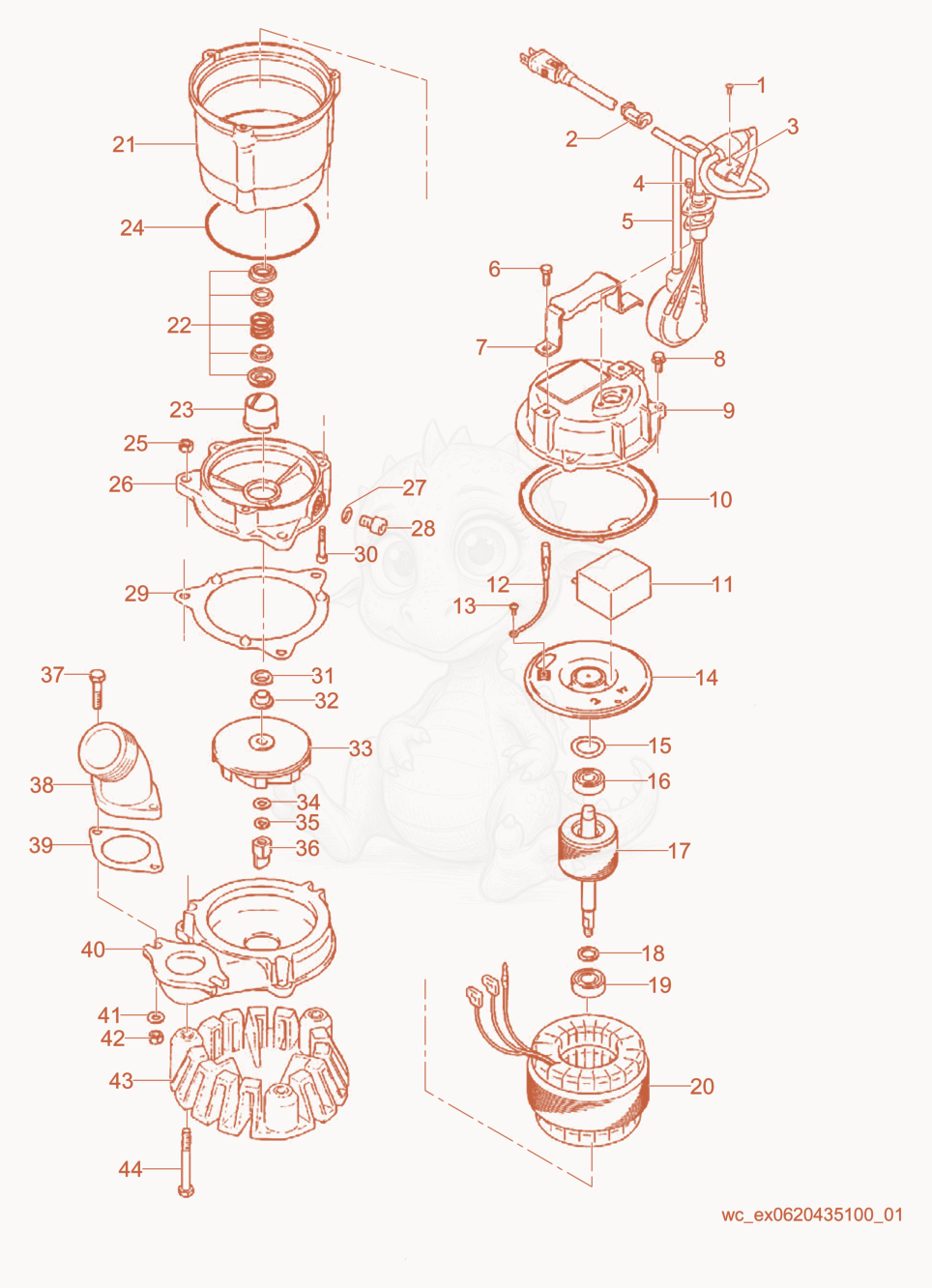

PSTF2400 Pump Components Diagram
- 5000150811$33.84GASKET-ORING SET - 5000150811×1
- SCREW-TAPPING,M4X16 - 5000178374×1
- 25000157362Not stockedCable clip×1
- SUPPORT-FLOAT - 5000176825×1
- BOLT-M5 X 15 - 5000150741×2
- CABLE-POWER - 5000177019×1
- BOLT-M6 X 15 - 5000150715×2
- handle-lifting - 5000150638×1
- Bolt - 5000175225×3
- HOUSING-COVER - 5000151021×1
- GASKET - 5000150691×1
- Capacitor - 5000157364×1
- WIRE-GROUNDING - 5000157365×1
- SCREW-M4 X 4 - 5000150777×1
- HOUSING-COVER - 5000150551×1
- WASHER-SPRING - 5000150766×1
- BEARING-BALL - 5000150555×1
- ROTOR - 5000157367×1
- 185000157368Not stockedBearing collar×1
- BEARING-BALL - 5000150556×1
- Stator - 5000157369×1
- HOUSING-MOTOR - 5000150634×1
- SEAL-MECHANICAL - 5000150505×1
- LIFTER-OIL - 5000157378×1
- O-ring - 5000150694×1
- NUT-M8 - 5000150745×3
- X-5000150514 HOUSING-OIL - 5000159225×1
- GASKET - 5000150676×1
- PLUG-OIL - 5000150535×1
- GASKET - 5000150685×1
- SCREW-HEX,SOCKET - 5000150733×3
- SEAL-DUST - 5000150708×1
- sleeve - 5000150650×1
- Impeller - 5000150484×1
- WASHER-PLAIN,M8 - 5000150759×1
- 355000151114Not stockedLock washer×1
- NUT-STIRRER - 5000150501×1
- Bolt - 5000157370×2
- COUPLING-HOSE - 5000150532×1
- GASKET - 5000150672×1
- VOLUTE - 5000150463×1
- WASHER-PLAIN,M8 - 5000150759×4
- NUT-M8 - 5000150745×2
- STRAINER - 5000150496×1
- BOLT-M8 X 70 - 5000150723×3
