PT2(I)-PUMP

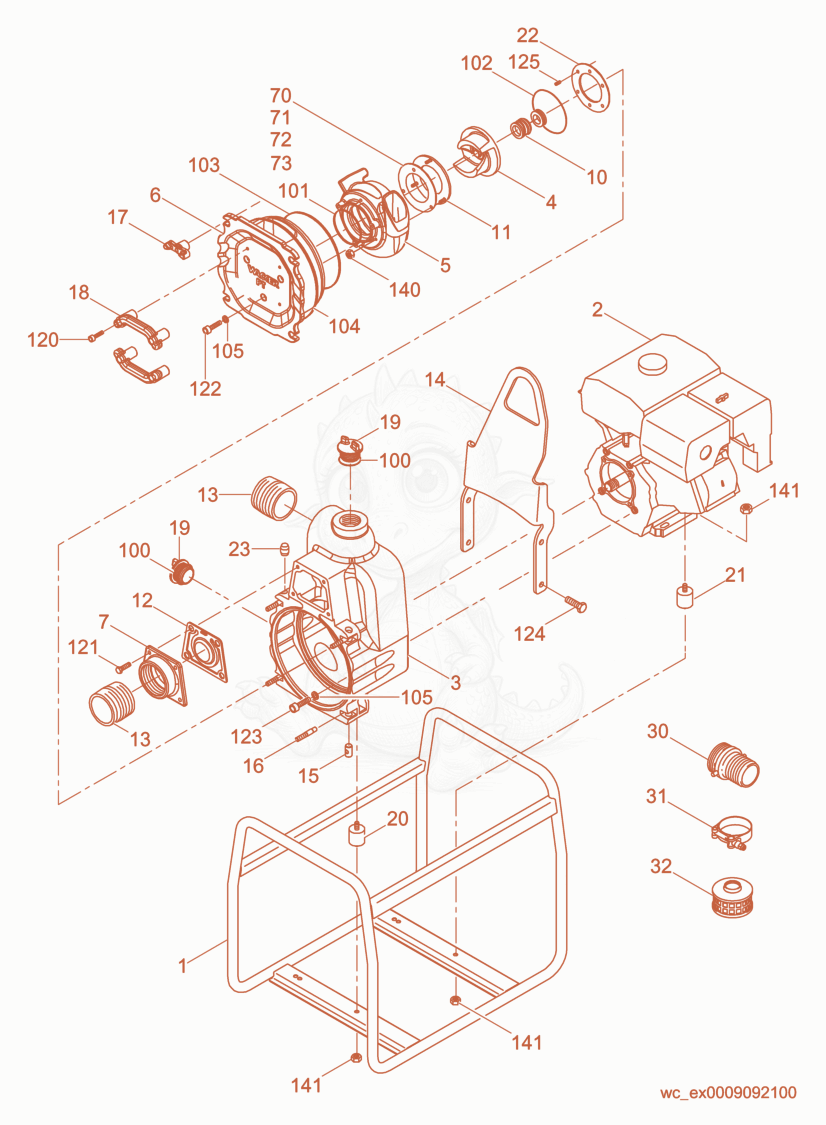

PT2 Pump Components Diagram

Exploded parts diagram of the Pump Components of a Wacker Neuson PT2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000119402
    $657.57
    FRAME-PT2 P-5000112006 - 5000119402×1
  • 25000156967
    $762.52
    ENGINE-WM170,6HP,PT2 - 5000156967×1
  • 35000119775
    $827.68
    HOUSING-PT2 - 5000119775×1
  • 45000119777
    $183.68
    IMPELLER-PT2 - 5000119777×1
  • 55000119779
    $88.33
    VOLUTE-PT2 - 5000119779×1
  • 65000119781
    $493.90
    COVER-PT2 - 5000119781×1
  • 75000119783
    $31.52
    FLANGE-INLET,PT2 - 5000119783×1
  • 105000119784
    $39.15
    SEAL-MECHANICAL,CRBN/CE,PT2 - 5000119784×1
  • 105000158125
    $119.13
    SEAL-MECHANICAL, SILLICON CARBITE - 5000158125×1
  • 115000119785
    $53.53
    INSERT-VOLUTE,PT2 - 5000119785×1
  • 125000119786
    $13.02
    VALVE-INLET GASKET,PT2 - 5000119786×1
  • 135000070519
    $99.28
    FITTING-NIPPLE 2 BSPT X 2.12 - 5000070519×2
  • 145000152600
    $173.03
    BRACKET-LIFT,PT2 P-5000112007 - 5000152600×1
  • 155000117817
    $16.17
    PIVOT-COVER CLAMP - 5000117817×4
  • 165000117816
    $21.29
    STUD-M10,COVER CLAMP - 5000117816×4
  • 175000119406
    $13.82
    KNOB-TEE P-5000112007 - 5000119406×4
  • 185000117815
    $11.08
    HANDLE-PUMP - 5000117815×2
  • 195000119626
    $11.21
    CAP-FILL DRAIN - 5000119626×2
  • 205000152399
    $8.29
    SHOCKMOUNT-PT2,38X25 - 5000152399×2
  • 215000152400
    $6.11
    SHOCKMOUNT-PT2,38X38 - 5000152400×2
  • 225000153973
    $57.05
    INSERT-HOUSING,PT2 - 5000153973×1
  • 235000150779
    $1.03
    SCREW-M4 X 6 - 5000150779×1
  • 305000026918Not stocked
    Hose coupling×1
  • 305000150801
    $15.65
    KEY - 5000150801×1
  • 315000028698Not stocked
    T-bolt clamp×1
  • 325000030550Not stocked
    Strainer×1
  • 705000152591
    $5.96
    SHIM 0.13MM,BLUE,PT2 - 5000152591×1
  • 715000152592
    $5.41
    SHIM 0.25MM,BROWN,PT2 - 5000152592×1
  • 725000152593
    $13.16
    SHIM 0.51MM,YELLOW,PT2 - 5000152593×1
  • 735000152594
    $11.44
    SHIM 1.02MM,CLEAR,PT2 - 5000152594×1
  • 1005000119412
    $0.36
    O-RING 43 X 3-70 SH,NBR - 5000119412×2
  • 1015000152595
    $0.99
    O-RING 59 X 4-70 SH,NBR - 5000152595×1
  • 1025000119410
    $2.37
    O-RING 123 X 5-70 SH,NBR - 5000119410×1
  • 1035000152596
    $5.74
    O-RING 213 X 4-70 SH,NBR - 5000152596×1
  • 1045000152597
    $5.95
    O-RING 235 X 5-70 SH,NBR - 5000152597×1
  • 1055000078884
    $0.30
    SEAL-RING A8 X 14 X 1,CU - 5000078884×3
  • 1205000119977
    $0.25
    SCREW M6X20 THD FRM - 5000119977×4
  • 1215000119978
    $0.23
    SCREW M8X30 HEX FLG - 5000119978×4
  • 1225000152598
    $0.75
    SCREW M8X65 SST,SHCS - 5000152598×3
  • 1235000152599
    $0.39
    SCREW 5/16-24X1.00,SST,SHCS - 5000152599×4
  • 1245000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×4
  • 1255000152303
    $0.06
    SCREW M4X10 SST A2 - 5000152303×6
  • 1405000119980
    $0.19
    NUT-LOCK M6 SST,HEX - 5000119980×3
  • 1415000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
