PT2A-PUMP

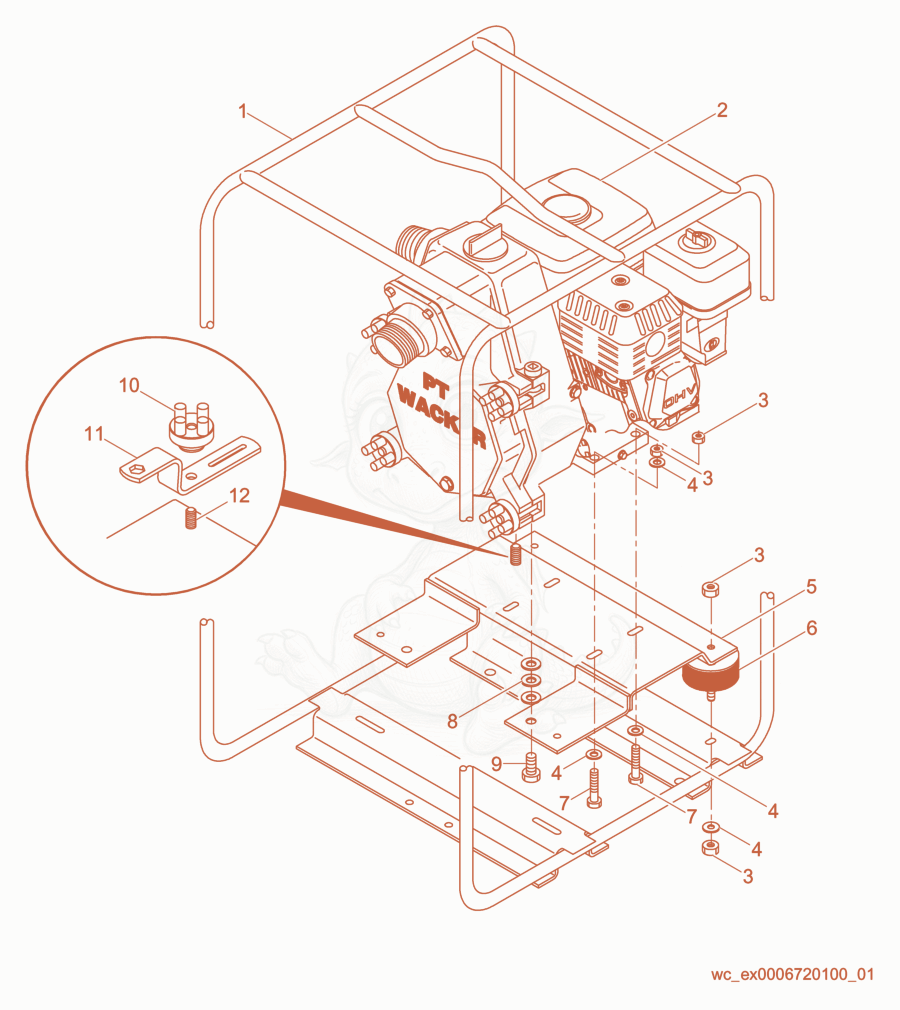

PT2A Frame cpl. Diagram

Exploded parts diagram of the Frame cpl. of a Wacker Neuson PT2A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000079179
    $636.93
    FRAME-PUMP - 5000079179×1
  • 25000089226Not stocked
    Honda engine×1
  • 35000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×8
  • 35000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 45000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×10
  • 55000085387
    $289.67
    CONSOLE-PUMP/ENGINE MOUNT - 5000085387×1
  • 65000029044
    $10.51
    SHOCKMOUNT 38 X 30-45SH, FRM A - 5000029044×4
  • 75000011341
    $0.36
    SCREW M8 X 40 HX.HD. - 5000011341×4
  • 85000010740
    $0.23
    WASHER 13 - 5000010740×6
  • 95000011301
    $0.85
    SCREW M12 X 50 HX.HD. - 5000011301×2
  • 105000030146
    $26.70
    KNOB P-5000112007 - 5000030146×1
  • 115000030476
    $64.09
    Wrench - 5000030476×1
  • 125000010620
    $0.26
    WASHER B13 FLAT - 5000010620×1
  • 125000013002
    $0.37
    SCREW M12 X 25 HX.HD. - 5000013002×1
