PT2R(IF)-PUMP

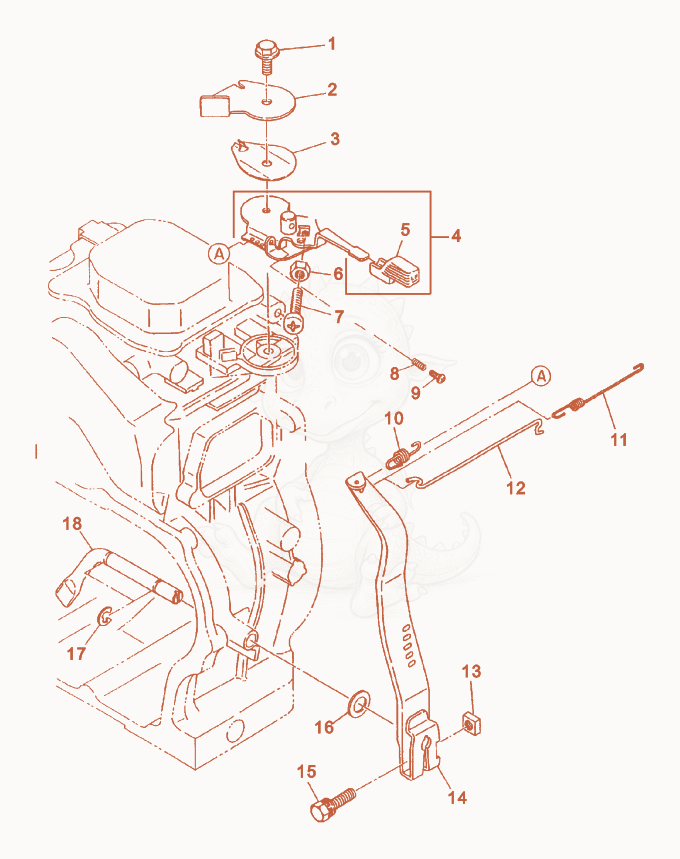

PT2R Governor Diagram
- SCREW M6 X 14,HEX.FLANGE - 5000053648×1
- PLATE-STOP - 5000117251×1
- WASHER-LOCK - 5000053646×1
- CONTROL-SPEED,ASSEMBLY - 5000117249×1
- KNOB - 5000053645×1
- NUT M6,HEX - 5000053650×1
- SCREW M6 X 30,PAN.HD. - 5000053649×1
- SPRING-IDLE SET - 5000117253×1
- SCREW-PAN HEAD - 5000117252×1
- SPRING-GOVERNER - 5000084367×1
- SPRING-ROD - 5000084365×1
- ROD-GOVERNER - 5000084364×1
- 135000077396Not stockedNut×1
- LEVER-GOVERNOR - 5000118041×1
- BOLT-W/WASHER - 5000084366×1
- Washer - 5000118042×1
- RET.RING-EXT 6MM,E-TYP - 5000053639×2
- SHAFT-GOVERNOR - 5000117247×1
