PT2Y(I)-PUMP

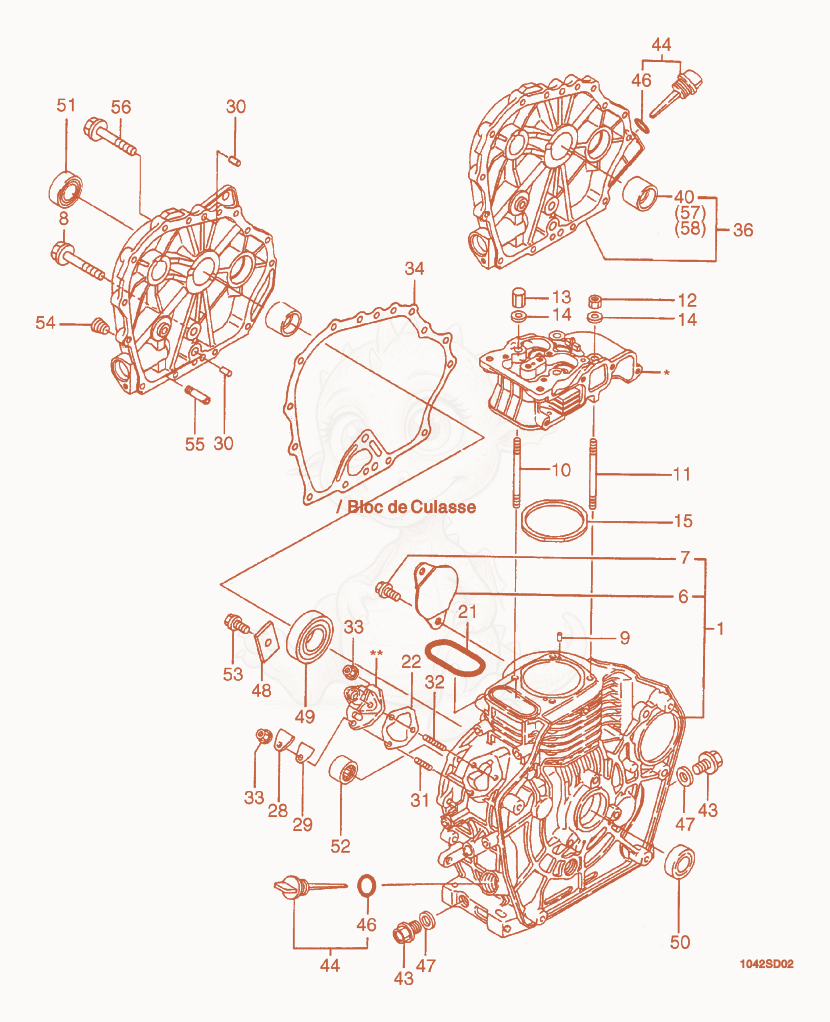

PT2Y Engine Block Diagram
- CYLINDER-BLOCK - 5000119712×1
- COVER-STARTER - 5000119713×1
- BOLT-M10 X 12 - 5000119714×2
- SCREW M8 X 35,HEX.FLANGE - 5000085522×1
- PIN-STRAIGHT 4 X 8 - 5000119715×2
- BOLT - 5000073597×2
- BOLT - 5000073598×2
- NUT - 5000119716×2
- cap - 5000119717×2
- Washer - 5000073601×4
- SET-GASKET,CYLINDER HEAD - 5000119718×1
- RING-RUBBER SEAL,RECT.X-SECT. - 5000073603×1
- SET-ENGINE SHIMS - 5000073610×1
- Cover - 5000073611×1
- GASKET - 5000073612×1
- PIN-8 X 12 - 5000119719×2
- STUD-M6 X 18 - 5000119720×1
- STUD-M6 X 22 - 5000119721×2
- NUT-M6 - 5000119722×3
- GASKET-HOUSING - 5000096707×1
- COVER-CRANKCASE - 5000119723×1
- BEARING-SLEEVE,30MM ID - 5000073619×1
- PLUG M16,HEX.HD. - 5000073606×2
- DIPSTICK - 5000096713×2
- O-RING 18 X 2.2 (P-18) - 5000073609×2
- WASHER-PLASTIC - 5000073608×2
- holder - 5000119726×1
- BEARING - 5000085599×1
- SEAL-OIL - 5000119727×1
- SEAL-SHAFT 25 X 41.2 X 8,4B - 5000073620×1
- BEARING-NEEDLE ROLLER,152112 - 5000073621×1
- SCREW M8 X 12,HX.FLANGE - 5000073622×1
- PLUG - 5000119728×1
- Pipe - 5000096706×1
- SCREW M6 X 25,HX.FLANGE - 5000073614×14
- BEARING-MAIN US=0.25 - 5000119729×1
- BEARING-MAIN US-0.50 - 5000119730×1
