PT3c

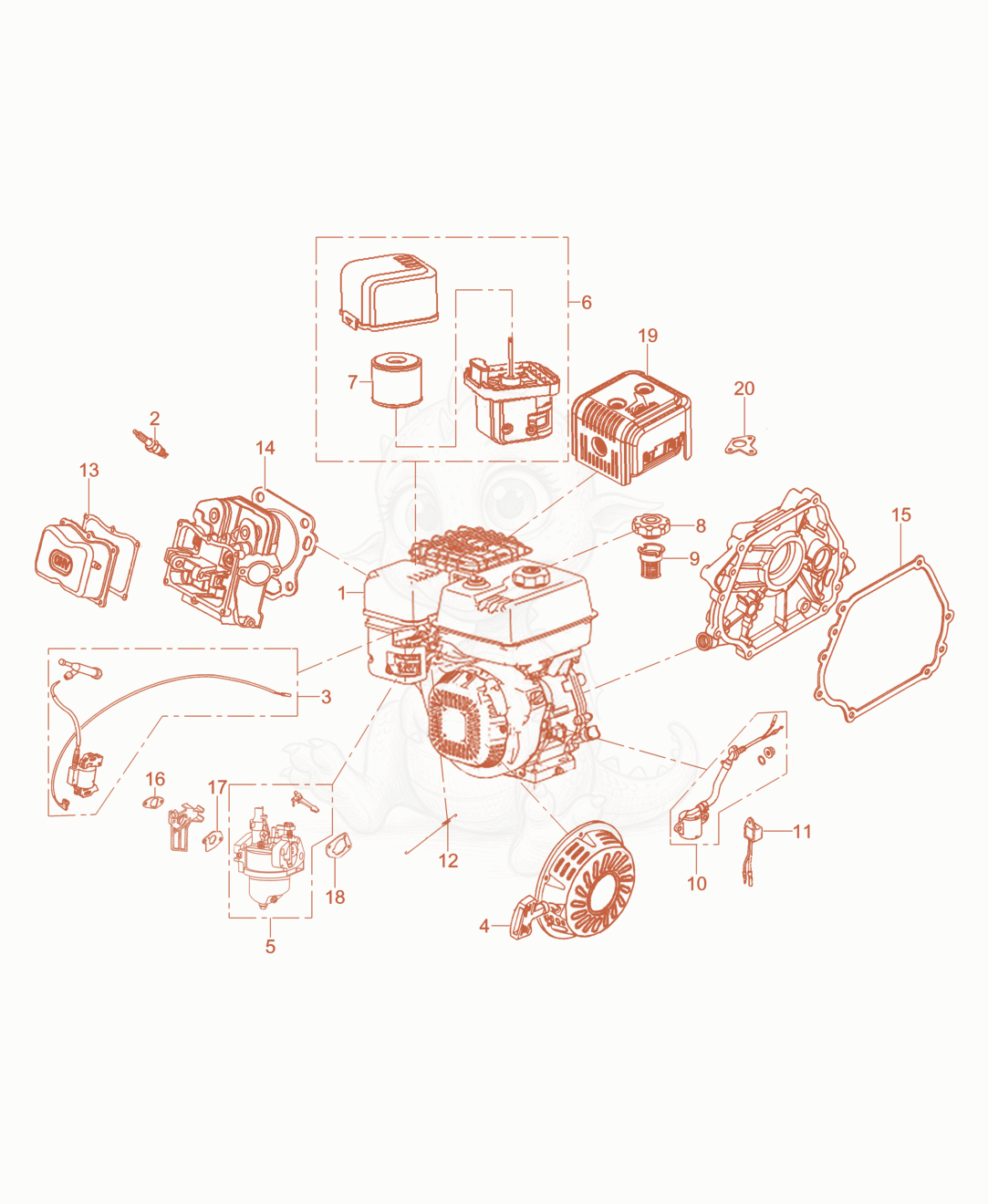

PT3G-CCE Engine Diagram

Exploded parts diagram of the Engine of a Wacker Neuson PT3G-CCE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100081291Not stocked
    LONCIN G300FA (EURO V)×1
  • 25000408439
    $15.70
    Spark plug - 5000408439×1
  • 35000409384
    $33.02
    COIL ASSY.,IGNNTION - 5000409384×1
  • 45100081290Not stocked
    STARTER CPL×1
  • 55000409383
    $55.01
    Carburetor cpl. - 5000409383×1
  • 65000409396
    $55.01
    Air filter - 5000409396×1
  • 75000409397
    $26.29
    Air filter element - 5000409397×1
  • 85000408526
    $7.34
    Fuel Tank Cap - 5000408526×1
  • 95000408527
    $2.85
    Fuel Strainer - 5000408527×1
  • 105000409340
    $22.51
    Oil level sensor - 5000409340×1
  • 115000408453
    $7.50
    Engine oil protector - 5000408453×1
  • 135000409332Not stocked
    Cylinder head gasket×1
  • 145000409337
    $9.38
    Gasket for cylinder head - 5000409337×1
  • 155000409351
    $14.97
    Crankcase cover gasket - 5000409351×1
  • 155000409393
    $0.81
    throttle return spring - 5000409393×1
  • 165000409379
    $0.91
    Carburetor gasket - 5000409379×1
  • 175000409381
    $0.91
    Carburetor gasket - 5000409381×1
  • 185000409382
    $0.91
    Carburetor gasket - 5000409382×1
  • 195000409398
    $136.58
    Muffler - 5000409398×1
  • 205000409399
    $3.65
    Muffler gasket - 5000409399×1
