PT6Y

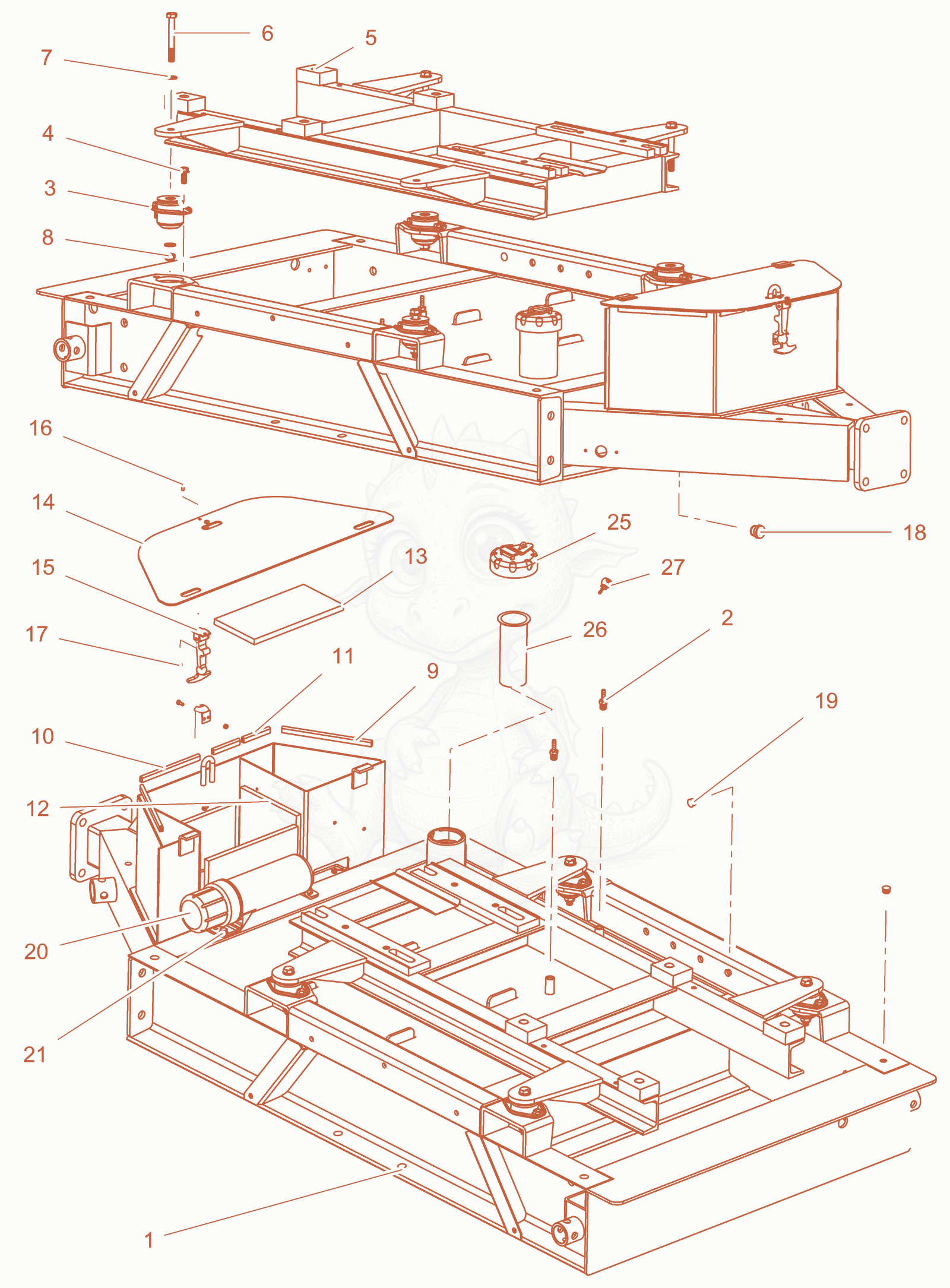

PT6Y-SA Trailer cpl Diagram

Exploded parts diagram of the Trailer cpl of a Wacker Neuson PT6Y-SA, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100064422
    $4,783.86
    Trailer weldment PT6Y - 5100064422×1
  • 25000028759
    $7.69
    FITTING-ADAPTER,BARBED,MALE - 5000028759×2
  • 31000403199
    $87.45
    cone bearing 55 Shore - 1000403199×4
  • 45100064420
    $0.92
    Screw M10x25 DIN6921-A 8.8 A2K - 5100064420×8
  • 55100064416
    $1,947.13
    Pump and engine base - 5100064416×1
  • 65100064414
    $3.93
    Screw M12x100 DIN931 8.8 A2K - 5100064414×4
  • 75000010620
    $0.26
    WASHER B13 FLAT - 5000010620×8
  • 85000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×4
  • 95100057717
    $22.83
    Rubber Molding, 200mm - 5100057717×2
  • 105100057719
    $22.83
    Rubber Molding, 165mm - 5100057719×1
  • 115100057721
    $22.83
    Rubber Molding, 75mm - 5100057721×2
  • 125200014976Not stocked
    Pad×2
  • 135200014975Not stocked
    Pad×4
  • 145200014974Not stocked
    Battery cover×1
  • 155000079309
    $42.94
    LATCH-FLEXIBLE DRAW - 5000079309×1
  • 165000011477
    $0.06
    SCREW M5 X 12 HX.HD. - 5000011477×4
  • 175000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×4
  • 181000020797Not stocked
    Screw joint×1
  • 191000279891
    $1.65
    PLUG - 1000279891×6
  • 205100069199Not stocked
    Operator manual storage tube×1
  • 215000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×3
  • 255100062515Not stocked
    fuel tank cap KB-2167×1
  • 265100063004Not stocked
    Filter element KB-4010×1
  • 275100063005Not stocked
    Key of fuel tank cap KB-2167-R×1
