PT6Y

PT6Y Fuel pipe Diagram

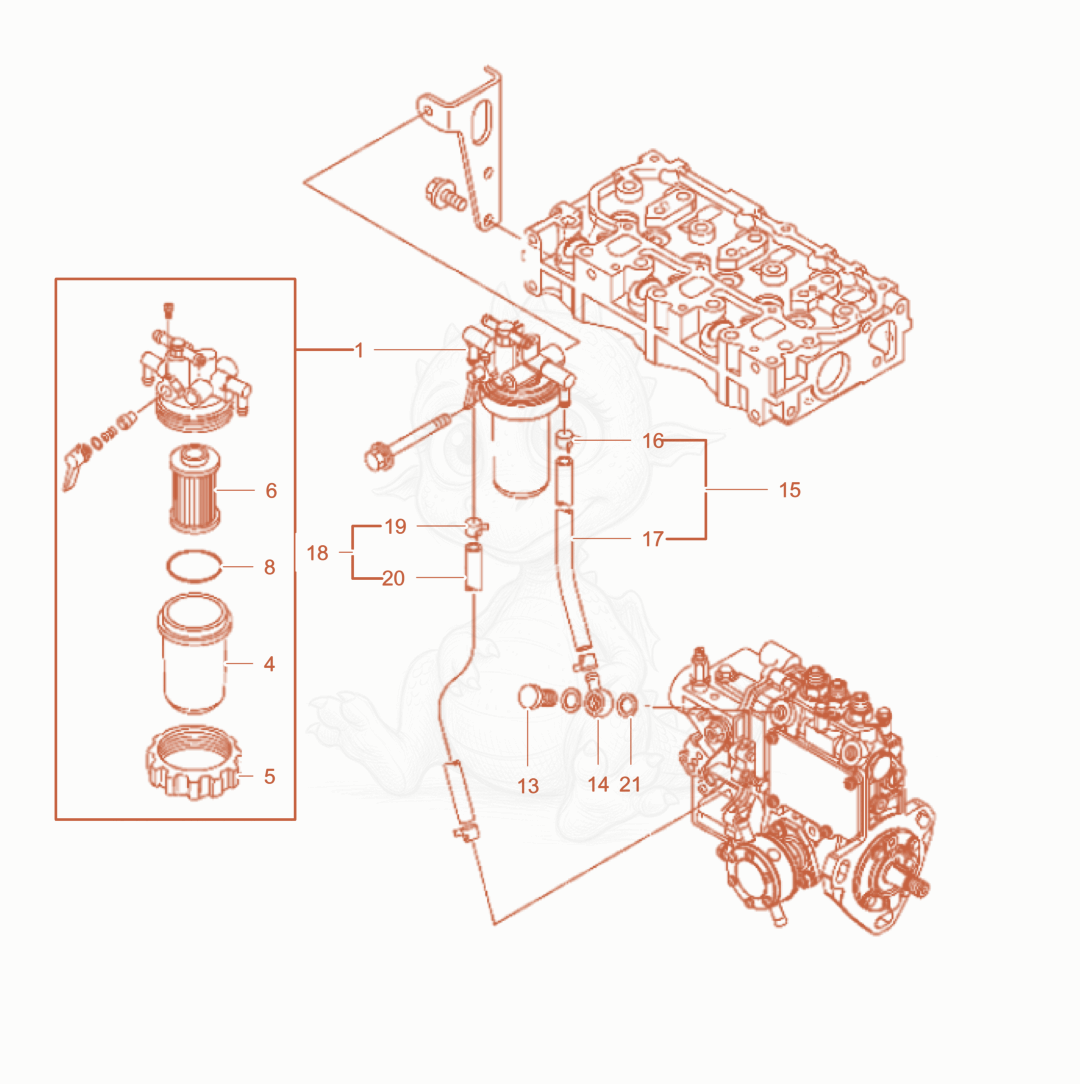

Exploded parts diagram of the Fuel pipe of a Wacker Neuson PT6Y, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100070475
    $66.60
    Fuel Filter - 5100070475×1
  • 41000034992Not stocked
    Filter glass×1
  • 55100071036Not stocked
    Ring, cup retaining×1
  • 65100070476
    $66.10
    Fuel Filter Element - 5100070476×1
  • 85100071035Not stocked
    O-ring×1
  • 131000085214
    $14.09
    BANJO BOLT - 1000085214×1
  • 141000073612
    $24.22
    ring piece - 1000073612×1
  • 151000425521Not stocked
    hose×1
  • 161000085217
    $4.77
    hose clamp - 1000085217×2
  • 175100071034
    $10.03
    HOSE, D13/7.5X270 - 5100071034×1
  • 181000237716
    $26.27
    fuel line - 1000237716×1
  • 191000085217
    $4.77
    hose clamp - 1000085217×2
  • 205100071037
    $23.09
    HOSE, FUEL - 5100071037×1
  • 211000098627
    $4.64
    SEAL RING - 1000098627×2
