PTS4V-PUMP

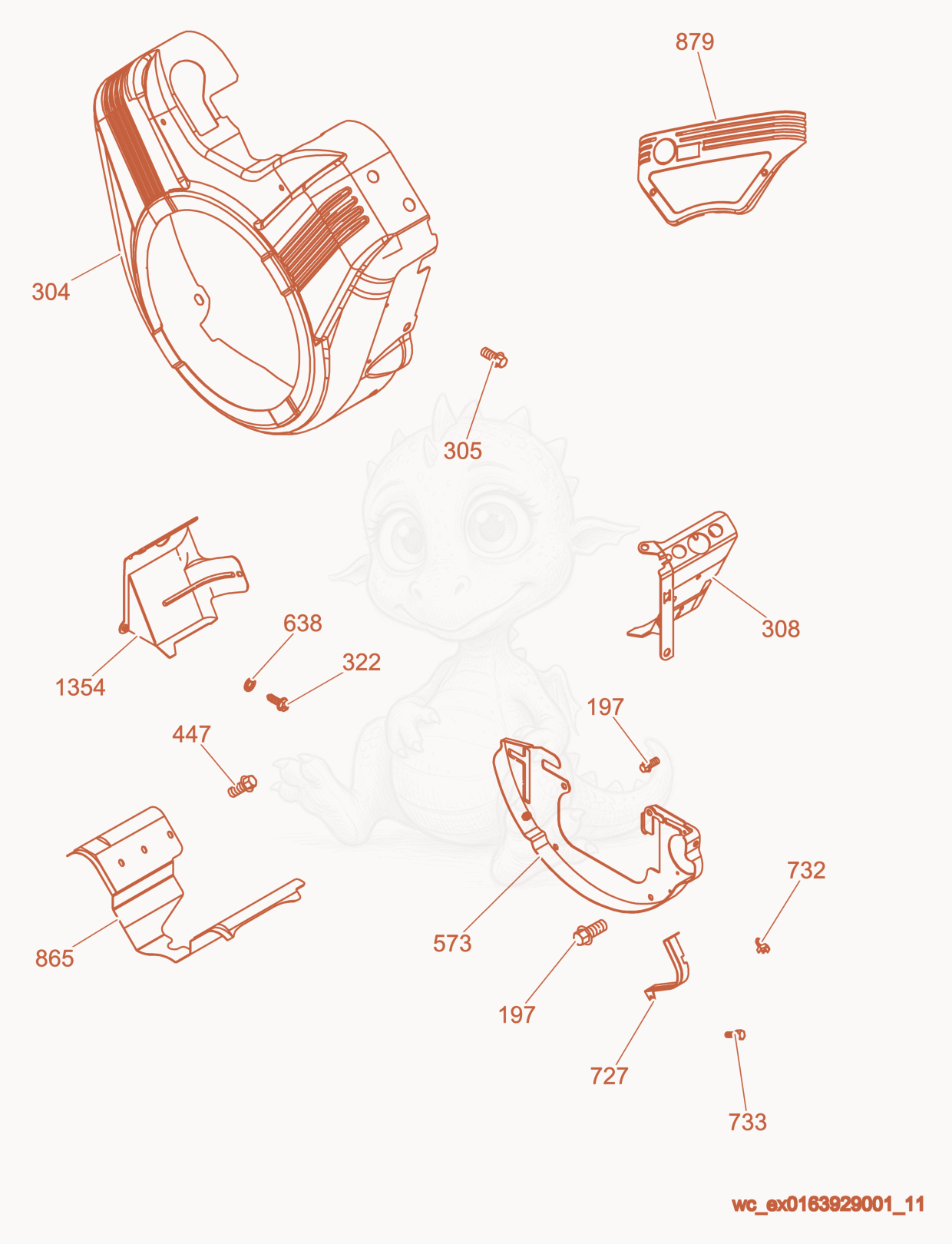

PTS4V Blower Housing Diagram

Exploded parts diagram of the Blower Housing of a Wacker Neuson PTS4V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1975000160167
    $6.40
    Screw - 5000160167×2
  • 3045000208211Not stocked
    Blower housing×1
  • 3055000160167
    $6.40
    Screw - 5000160167×5
  • 3085000208212
    $26.87
    CYLINDER HEAD COVER 1 - 5000208212×1
  • 3225000084732
    $6.40
    SCREW 1/4-20 X 3/8 W/FW,HEX - 5000084732×2
  • 4475000208216
    $5.56
    Screw - 5000208216×3
  • 5735000208221
    $41.27
    PLATE-BACK - 5000208221×1
  • 6385000118479
    $7.79
    washer - 5000118479×2
  • 7275000208225
    $25.89
    Cover - 5000208225×1
  • 7325000118437
    $5.56
    Screw - 5000118437×1
  • 7335000208226Not stocked
    Screw×1
  • 8655000208230
    $48.61
    COVER-AIR GUIDE - 5000208230×1
  • 8795000208231
    $39.66
    Cover - 5000208231×1
  • 13545000208213
    $59.38
    CYLINDER HEAD COVER 2 - 5000208213×1
