PTS4V(I)-PUMP

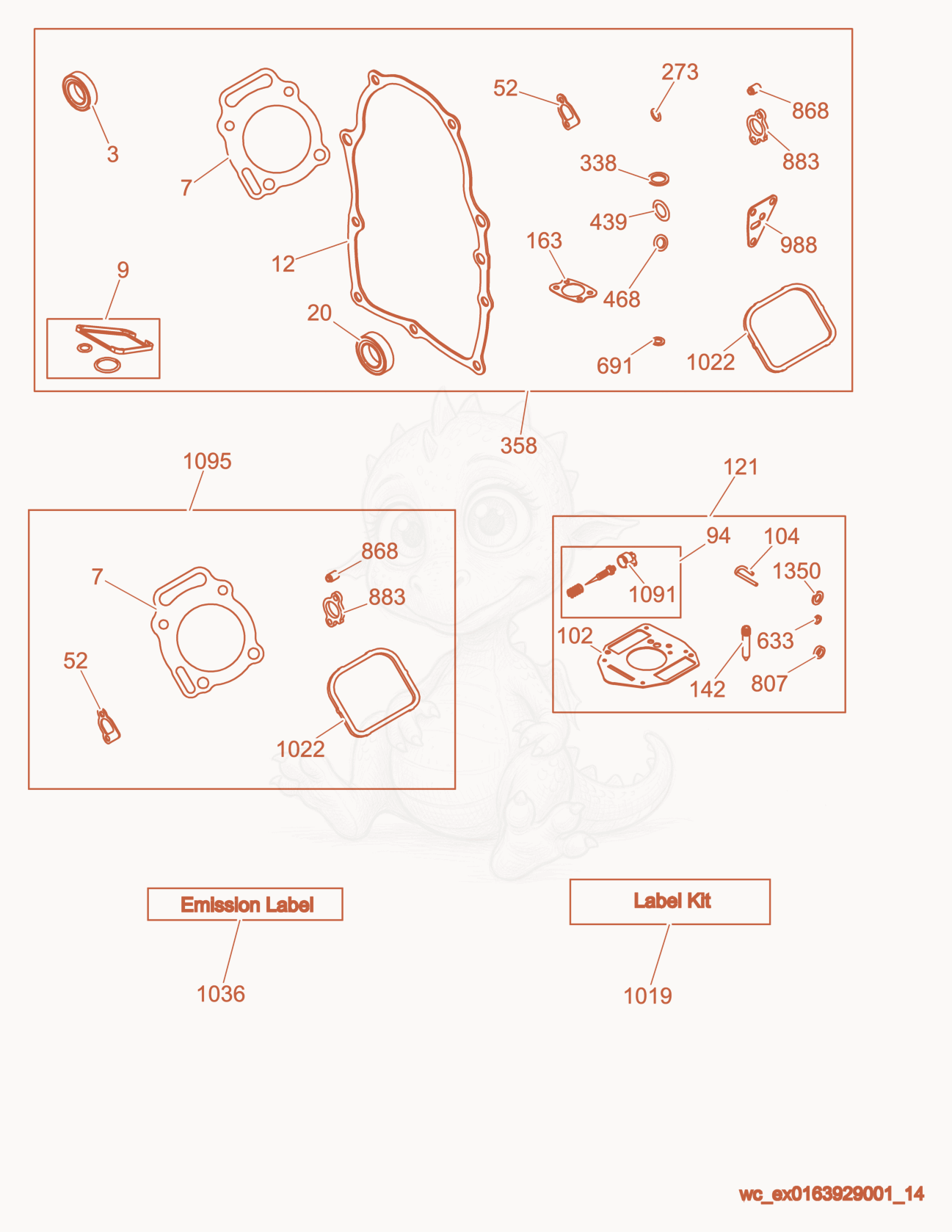

PTS4V Overhaul Kits Diagram

Exploded parts diagram of the Overhaul Kits of a Wacker Neuson PTS4V, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

35000081053
$8.23
SEAL-SHAFT - 5000081053×1
75000111432
$37.85
GASKET-CYLINDER HEAD - 5000111432×1
95000160160
$11.01
X-5200002290 GASKET-BREATHER - 5000160160×1
125000081020
$73.01
GASKET-CRANKCASE COVER - 5000081020×1
205000081018
$15.51
SEAL-SHAFT - 5000081018×1
525000080912
$4.26
GASKET-INTAKE MANIFOLD - 5000080912×1
945000116541
$92.27
VALVE-IDLE ADJUSTMENT - 5000116541×1
1025000079783
$39.45
GASKET-INTAKE ELBOW - 5000079783×1
1045000080895
$24.42
PIN-FLOAT HINGE - 5000080895×1
1215000208207Not stocked
Carburetor Repair Kit×1
1425000080898
$67.30
JET-SLOW SPEED - 5000080898×1
1635000083242
$8.64
GASKET-AIR CLEANER MOUNT - 5000083242×1
2735000118433
$9.43
O-ring - 5000118433×1
3385000083553
$6.69
X-5000089718 SEAL-DIPSTICK - 5000083553×1
3585000208214
$206.35
Engine Gasket Set - 5000208214×1
4395000118494
$9.19
O-ring - 5000118494×1
4685000118439
$9.43
O-ring - 5000118439×1
6335000116524
$9.58
SEAL-SHAFT - 5000116524×1
6915000118432
$8.24
X-5200001345 SEAL-SHAFT,GOVERNOR - 5000118432×1
8075000080902
$11.46
RING-COLLAR,THROTTLE CONTROL - 5000080902×1
8685000080971
$17.47
SEAL-VALVE GUIDE - 5000080971×1
8835000080943
$6.19
GASKET-EXHAUST MANIFOLD - 5000080943×1
9885000118502
$6.51
GASKET-FILTER,OIL - 5000118502×1
10195000208234
$66.67
Label Set - 5000208234×1
10225000081040
$6.36
GASKET-VALVE COVER - 5000081040×1
10365000208236
$15.69
LABEL-EMMISSIONS - 5000208236×1
10915000118474
$21.58
CAP-LIMITER - 5000118474×1
10955000111430
$165.64
KIT-OVERHAUL,VALVE - 5000111430×1
13505000080908
$12.63
GASKET - 5000080908×1
