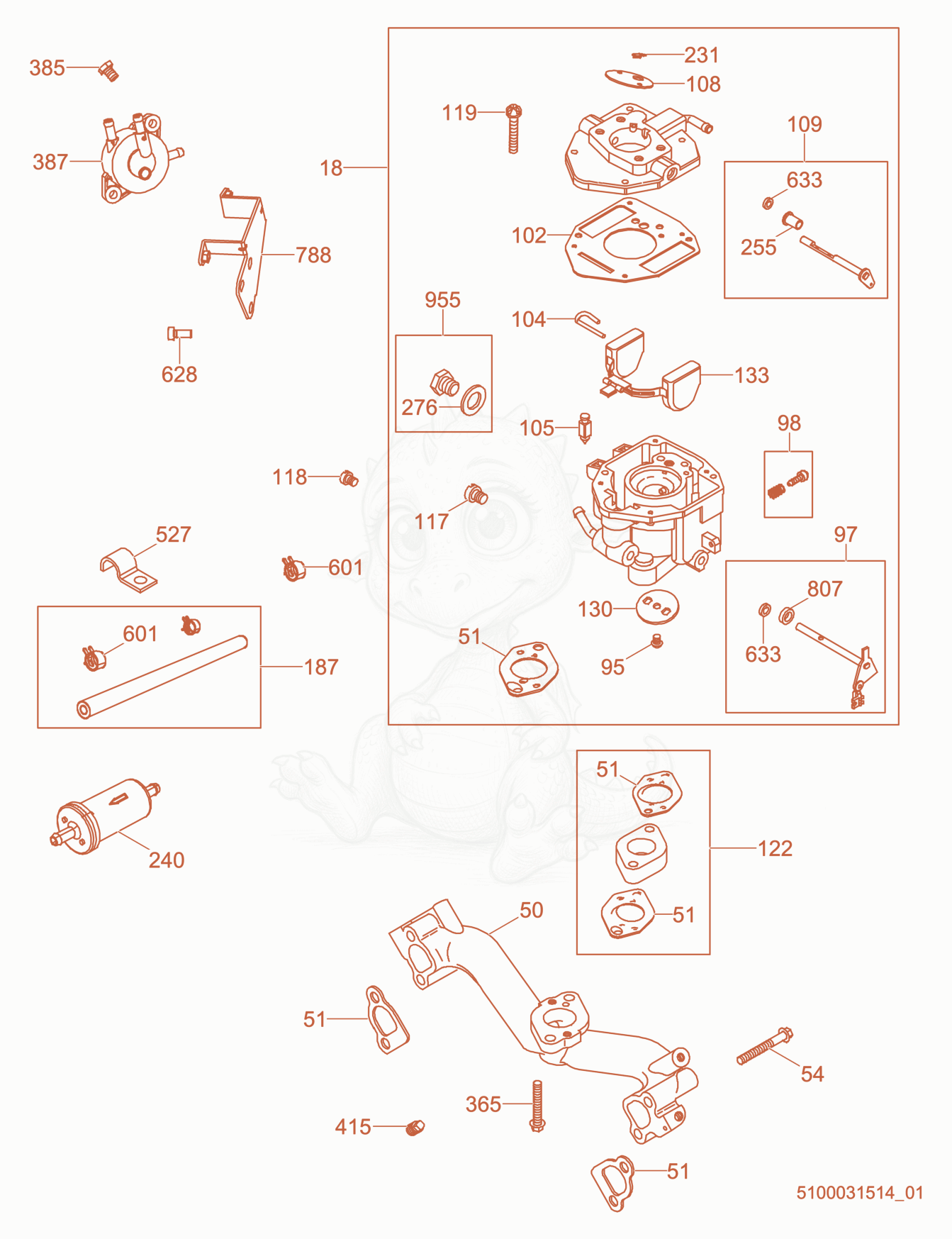

PTS4V Carburetor Diagram
- MANIFOLD-INTAKE - 5000118452×1
- GASKET-CARBURETOR MOUNT - 5000080903×2
- GASKET-INTAKE MANIFOLD - 5000080912×2
- SCREW M8X67 - 5100031493×4
- Screw - 5000118446×1
- SHAFT-THROTTLE - 5000208204×1
- SCREW-IDLE SPEED - 5000116537×1
- GASKET-INTAKE ELBOW - 5000079783×1
- PIN-FLOAT HINGE - 5000080895×1
- Valve-float needle - 5200001355×1
- Valve-choke - 5200001356×1
- SHAFT-CHOKE - 5000116551×1
- Jet-main STD. - 5200001357×1
- Jet-main, high alt. - 5200001358×1
- Screw - 5000080894×4
- SPACER - 5000080911×1
- Carburetor cpl. - 5200001359×1
- VALVE-THROTTLE CONTROL - 5000080901×1
- Float-carburetor - 5200001360×1
- FUEL-LINE - 5000216201×1
- Screw - 5000118446×1
- 2405200020453Not stockedFuel filter×1
- RING-COLLAR,CHOKE CONTROL - 5000080798×1
- GASKET - 5000080908×1
- Screw - 5000118444×1
- Screw - 5000160165×1
- PUMP-FUEL - 5000080930×1
- Plug-oil fill - 5200001349×1
- CLAMP-HOSE - 5000084818×1
- 6015000085182Not stockedClamp×2
- clamp - 5000051797×2
- SCREW-FUEL PUMP BRACKET - 5000119802×4
- SEAL-SHAFT - 5000116524×1
- Seal - 5000080799×1
- BRACKET-FUEL PUMP SUPPORT - 5000080929×1
- RING-COLLAR,THROTTLE CONTROL - 5000080902×1
- PLUG - 5000080907×1
