PTS4V-Pump,China

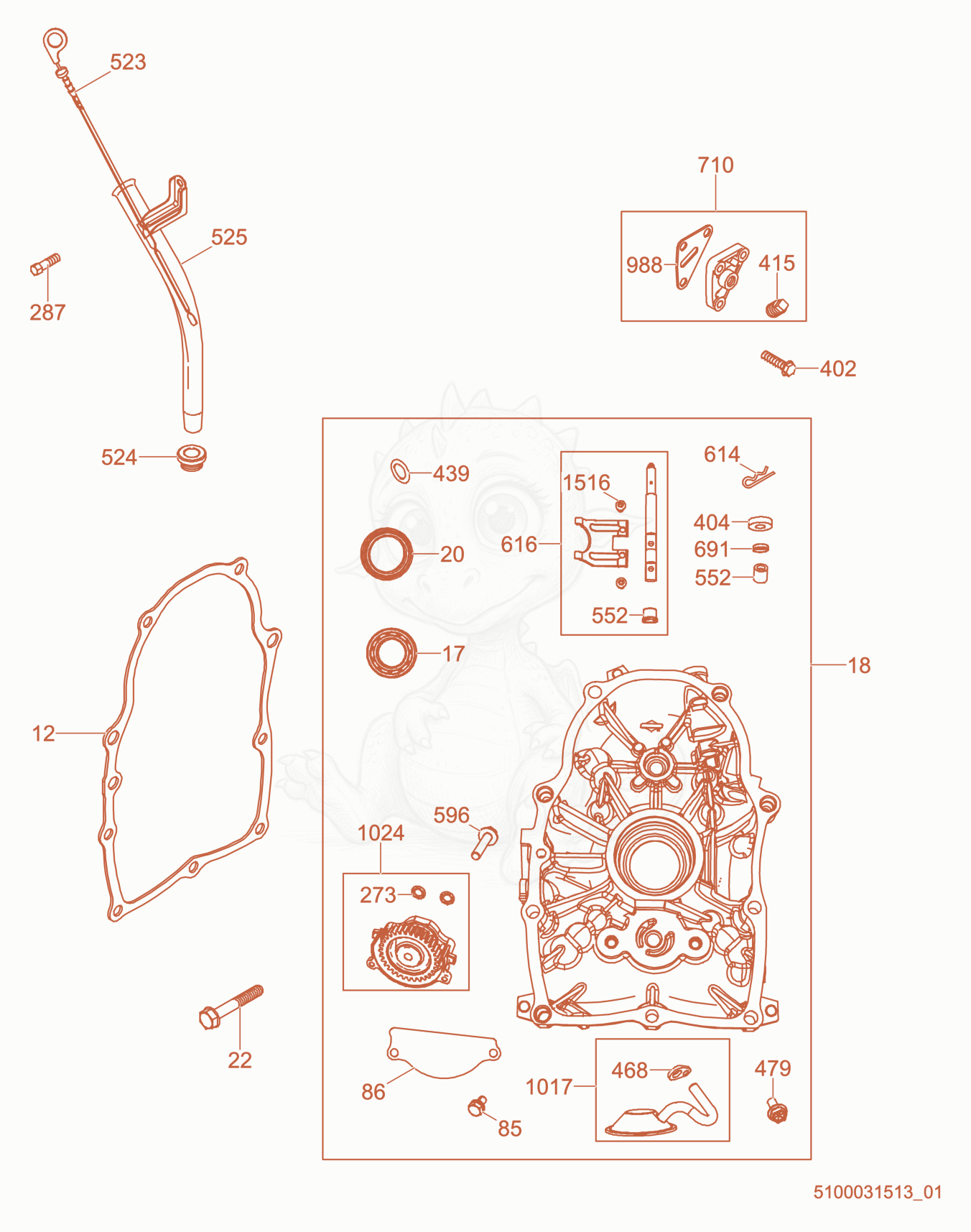

PTS4V Crankcase Diagram
- GASKET-CRANKCASE - 5100031490×1
- BEARING-BALL - 5000110082×1
- CRANKCASE CVR W/ OIL PUMP CPL. - 5000227735×1
- SEAL-SHAFT - 5000081018×1
- Screw - 5000208196×10
- 855000118496Not stockedScrew×2
- Plate - 5000110083×1
- O-ring - 5000118433×2
- SCREW-FUEL PUMP BRACKET - 5000119802×1
- Screw w/washer - 5000118431×3
- Washer - 5000081019×1
- Plug-oil fill - 5200001349×1
- O-ring - 5000118494×1
- O-ring - 5000118439×1
- Screw - 5000160165×1
- Dipstick - 5000116503×1
- SEAL - DIPSTICK TUBE - 5000116501×1
- TUBE-OIL FILL - 5000116502×1
- BUSHING-CRANK,GOVERNOR - 5000118441×1
- BUSHING-CRANK - 5000119790×1
- Screw - 5000118471×2
- PIN-COTTER - 5000118478×1
- YOKE-GOVERNOR CONTROL - 5000080988×1
- Seal-shaft, governor - 5200001345×1
- ADAPTER-OIL FILTER MOUNT - 5000118510×1
- GASKET-FILTER,OIL - 5000118502×1
- COVER-OIL PUMP - 5000118459×1
- Pump-Oil - 5200001346×1
- SCREW - 5100031510×2
