PTS4V

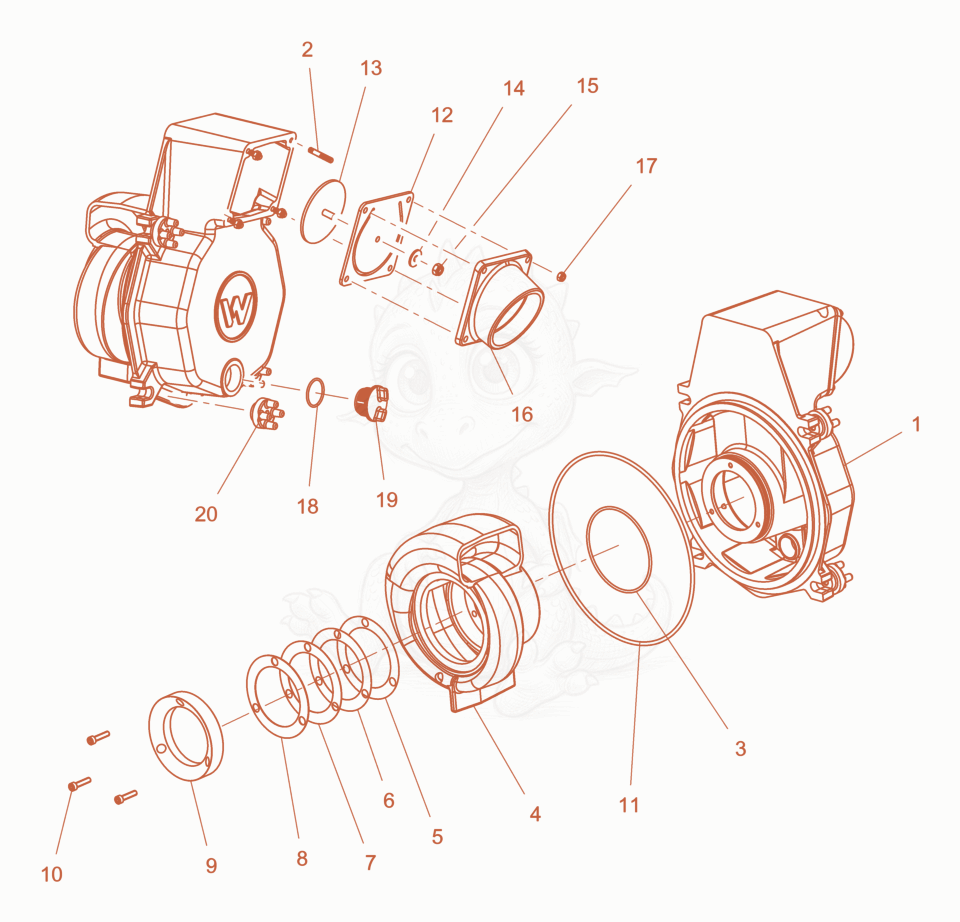

PTS4V Pump front Diagram

Exploded parts diagram of the Pump front of a Wacker Neuson PTS4V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000085704
    $775.27
    COVER-PUMP HOUSING - 5000085704×1
  • 25000010928
    $0.47
    STUD M8 X 30 - 5000010928×4
  • 35000030592
    $2.13
    O-RING 144 X 4-70 Sh - 5000030592×1
  • 45000030584
    $278.40
    VOLUTE - 5000030584×1
  • 55000110067
    $6.92
    SHIM-.005 ,BLUE - 5000110067×1
  • 65000110068
    $7.73
    SHIM-.010 ,BROWN - 5000110068×1
  • 75000110069
    $9.48
    SHIM-.020 ,YELLOW - 5000110069×1
  • 85000110070
    $14.72
    SHIM-.040 ,OPTIONAL - 5000110070×1
  • 95000076819Not stocked
    INSERT-VOLUTE,METAL SP-0076822×1
  • 105000051562
    $0.50
    SCREW M8 X 35 ST,SOC.HD - 5000051562×3
  • 115000030591
    $8.64
    O-RING 330 X 6-70 Sh - 5000030591×1
  • 125000030611
    $14.72
    GASKET-FLAPPER VALVE - 5000030611×1
  • 135000077936
    $33.57
    STUD-FLAPPER,WELDMENT, 4 1/2" - 5000077936×1
  • 145000010375
    $0.18
    WASHER B10.5 FLAT - 5000010375×1
  • 155000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×1
  • 165000070525
    $88.95
    PORT-SUCTION SP-0071533 - 5000070525×1
  • 175000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 185000119412
    $0.36
    O-RING 43 X 3-70 SH,NBR - 5000119412×1
  • 195000119626
    $11.21
    CAP-FILL DRAIN - 5000119626×1
  • 205000030146
    $26.70
    KNOB P-5000112007 - 5000030146×4
