PUREHEAT DIESEL W/435 GAL TANK

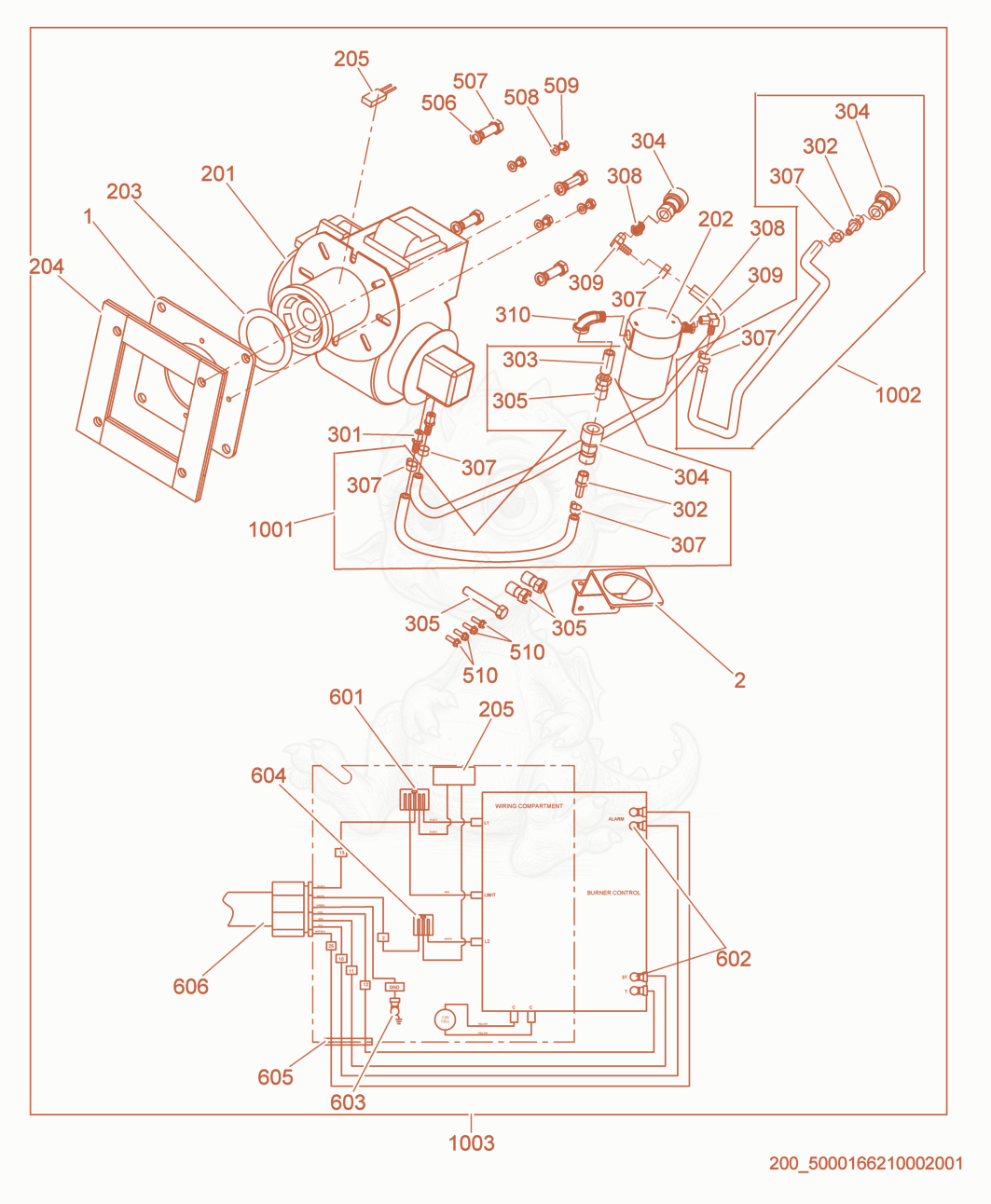

PUREHEAT Burner option (Diesel) Diagram

Exploded parts diagram of the Burner option (Diesel) of a Wacker Neuson PUREHEAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000167202Not stocked
    Adapter plate×1
  • 25000173990Not stocked
    Filter bracket×1
  • 2015200000922Not stocked
    Burner×1
  • 2025000168078Not stocked
    Filter housing×1
  • 2035000169178Not stocked
    Gasket×1
  • 2045200006640Not stocked
    Gasket×1
  • 2055000169098Not stocked
    Burner fuel pre-heater×1
  • 3015000168280Not stocked
    Hose barb×2
  • 3025000168595Not stocked
    Hose barb×2
  • 3035000168073Not stocked
    Nipple fitting×1
  • 3045000168010Not stocked
    Quick coupler×3
  • 3055000168012Not stocked
    Quick coupler×2
  • 3075000168038Not stocked
    Hose clamp×5
  • 3085000168034Not stocked
    Bushing×2
  • 3105000171331Not stocked
    Elbow fitting×1
  • 5065000167734Not stocked
    Lock washer×4
  • 5075000167699Not stocked
    Bolt×4
  • 5085000167731Not stocked
    Flat washer×4
  • 5095000167758Not stocked
    Bolt×4
  • 5105000167793Not stocked
    Screw×4
  • 6015000166813Not stocked
    Terminal×1
  • 6025000166590Not stocked
    Terminal×4
  • 6035000166506Not stocked
    Terminal×1
  • 6045000166833Not stocked
    Terminal×1
  • 6055000168769Not stocked
    Grommet×1
  • 6065000166068Not stocked
    Cable cpl.×1
  • 10015000166030Not stocked
    Hose cpl.×1
  • 10025000166031Not stocked
    Hose cpl.×1
  • 10035000166210Not stocked
    Burner option×1
