RC50

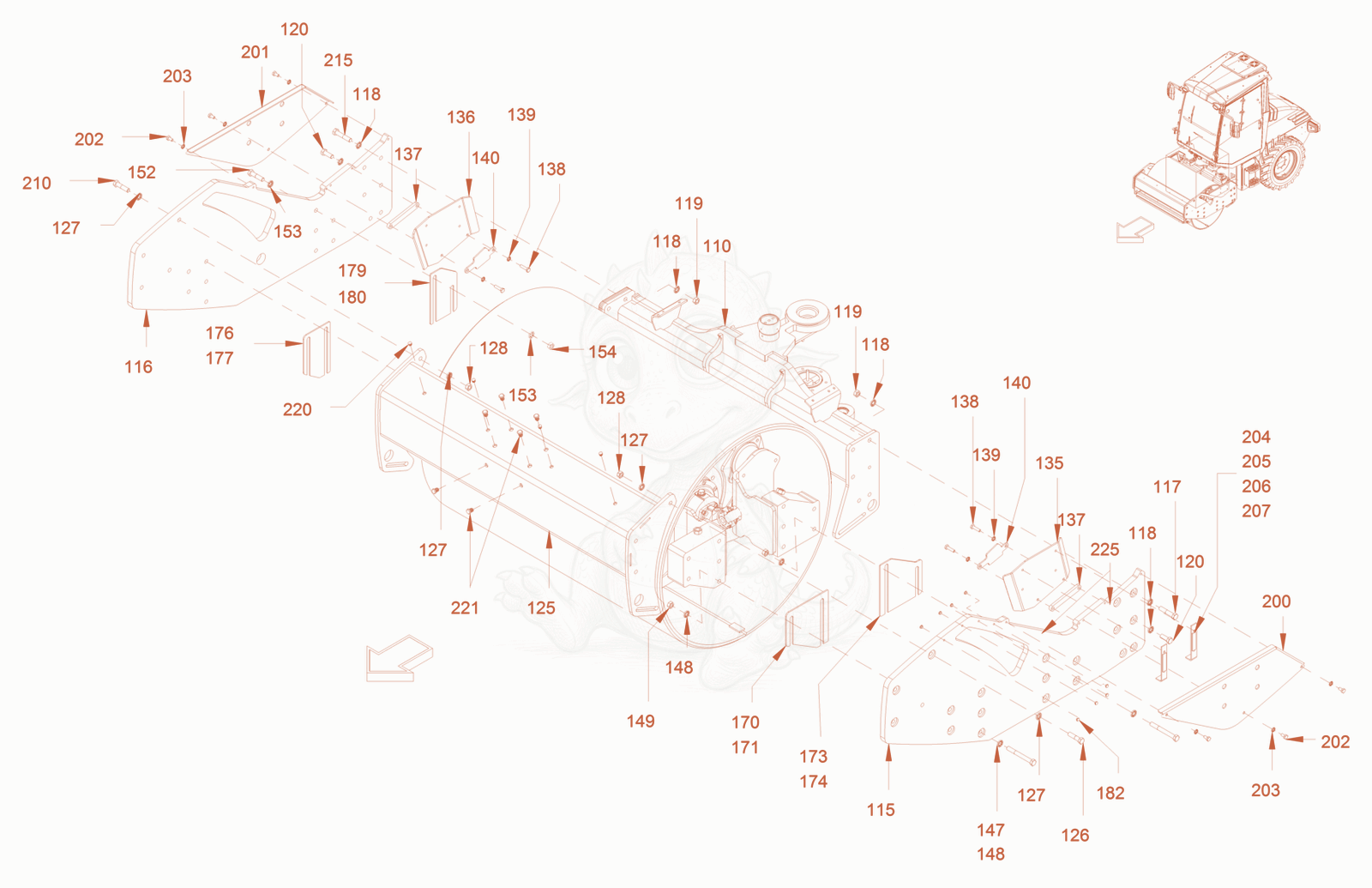

RC50 main frame and assemblies Diagram
- traverse - 5100025973×1
- side part - 5100025974×1
- side part - 5100025975×1
- hexagon screw - 5100023177×5
- Locking washer - 5100012969×22
- Hexagon nut - 5100012405×10
- Hexagon screw - 5100013426×2
- traverse - 5100025976×1
- hexagon screw - 5100023177×3
- Locking washer - 5100012969×12
- Hexagon nut - 5100012405×6
- metal plate - 5100023394×1
- metal plate - 5100023395×1
- distance piece - 5100023350×2
- Hexagon screw - 5100012523×4
- Locking washer - 5100012967×4
- metal plate - 5100023541×2
- hexagon screw M16x150 10.9 - 5100022986×10
- Locking washer - 5100012969×20
- Hexagon nut - 5100012405×10
- Hexagon screw - 5100013565×10
- Locking washer - 5100012969×20
- Hexagon nut - 5100012405×10
- distance sheet - 5100023571×1
- distance sheet - 5100023572×2
- distance sheet - 5100023573×1
- distance sheet - 5100023574×2
- distance sheet - 5100023576×1
- distance sheet - 5100023577×2
- distance sheet - 5100023578×1
- distance sheet - 5100023579×2
- filler cap - 5100040276×8
- metal plate - 5100025977×1
- metal plate - 5100025978×1
- Hexagon screw - 5100012520×6
- Locking washer - 5100012967×6
- Sealing tape - 5100011866×0.07
- Sealing tape - 5100011866×0.07
- Sealing tape - 5100011866×0.07
- Sealing tape - 5100011866×0.07
- hexagon screw - 5100023177×3
- hexagon screw - 5100023177×5
- Filler cap - 5100012493×4
- filler cap - 5100018010×6
- 2255100046875Not stockedsealing tape×1.4
