RC70VODPFCAB roller drum Diagram

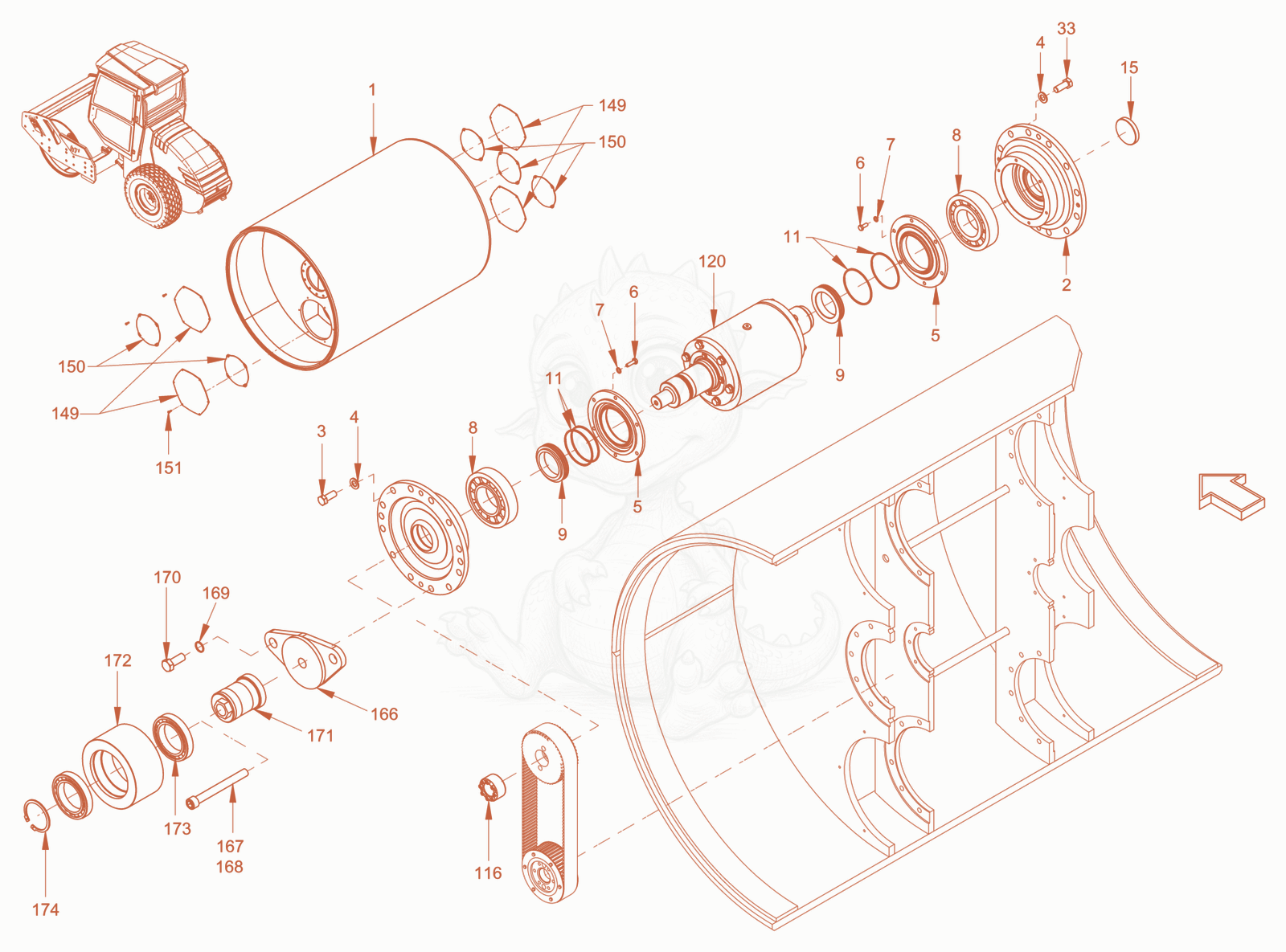

Exploded parts diagram of the roller drum of a Wacker Neuson RC70VODPFCAB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100070766Not stocked
    roller drum with oscillator×1
  • 25100023059
    $1,932.78
    flange - 5100023059×4
  • hexagon screw - 5100023180×42
  • Locking washer - 5100012969×42
  • 55100023060
    $436.16
    lid - 5100023060×4
  • Hexagon screw - 5100012518×24
  • Locking washer - 5100012966×24
  • 85100022946
    $806.88
    cylindrical roller bearing - 5100022946×4
  • 95100023062
    $105.15
    ring - 5100023062×2
  • 115100022949
    $9.62
    disc ring - 5100022949×8
  • 155100022947
    $6.29
    cap - 5100022947×2
  • 1165100048638Not stocked
    annular spring×2
  • 1205100048721Not stocked
    unbalance shaft×1
  • 1495100025912
    $168.38
    lid - 5100025912×4
  • 1505100070769Not stocked
    lid×5
  • 1515100012518
    $1.57
    Hexagon screw - 5100012518×44
  • 1665100023121
    $216.25
    metal plate - 5100023121×2
  • 1675100011536
    $0.55
    Locking washer - 5100011536×2
  • 1685100013551
    $14.23
    Cheese-head screw - 5100013551×2
  • 1695100012969
    $3.15
    Locking washer - 5100012969×4
  • 1705100023182
    $5.72
    hexagon screw - 5100023182×4
  • 1715100012953
    $167.39
    Shaft - 5100012953×2
  • 1725100013254
    $285.14
    Ring - 5100013254×2
  • 1735100012952
    $104.49
    Grooved ball bearing - 5100012952×4
  • 1745100012950
    $15.37
    Locking ring - 5100012950×2
