Rebar Cutter RCP-16/115 GB

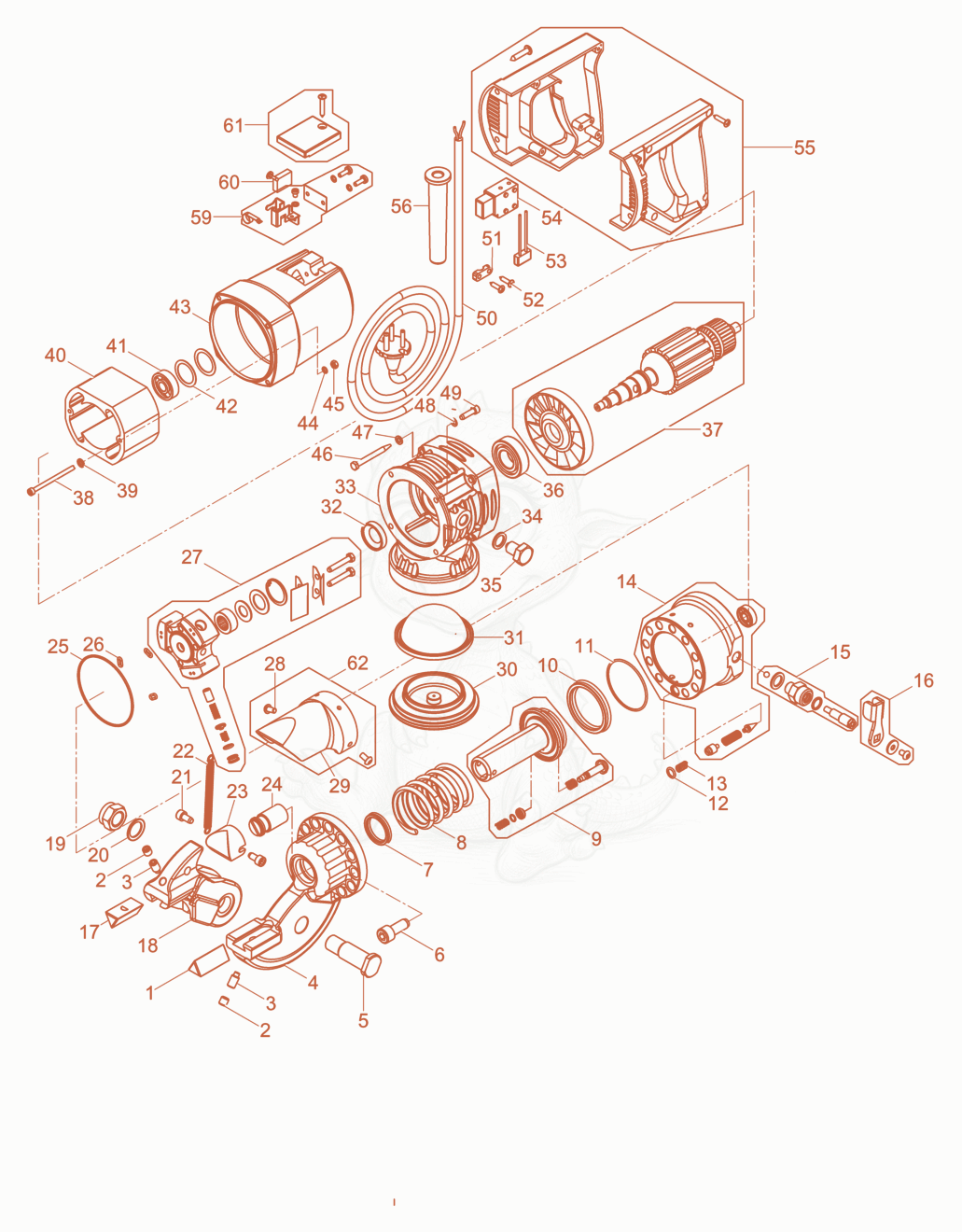

RCP-16/115 Reinforcement Cutting Equipment Diagram
- BLADE-CUTTING - 5000216861×1
- PIN-THREADED - 5000217041×2
- PIN-THREADED - 5000217026×2
- Cutter head - 5000216865×1
- Bolt - 5000216867×1
- SCREW-CHEESE HD. - 5000216836×11
- Gasket - 5000216924×1
- SPRING-COMPRESSION - 5000216860×1
- Piston cpl. - 5000217011×1
- Gasket - 5000216920×1
- O-Ring - 5000216921×1
- O-Ring - 5000216934×1
- SPRING-COMPRESSION - 5000216862×1
- Cylinder assembly cpl. - 5000217004×1
- pressure relief - 5000216996×1
- Lever cpl. - 5000216997×1
- BLADE-CUTTING - 5000216864×1
- Cutter head - 5000216866×1
- NUT-LOCK - 5000217024×1
- WASHER-LOCK - 5000217043×1
- SCREW-CHEESE HD. - 5000216846×2
- mainspring 4l14c1 - 5000216859×1
- printhead - 5000216911×1
- Pin - 5000216910×1
- O-Ring - 5000216922×1
- O-Ring - 5000216917×3
- kit-pump - 5000217009×1
- set of screws RCP 16 - 5100000032×1
- Protection - 5000227717×1
- CAP-FUEL TANK - 5000216856×1
- Diaphragm - 5000216935×1
- SEAL-OIL - 5000217014×1
- HOUSING-PUMP - 5000216855×1
- RING-SEAL - 5000217033×1
- PLUG-SCREW - 5000217008×1
- BEARING-BALL - 5000217013×1
- Rotor cpl. - 5000217078×1
- SCREW-CHEESE HD. - 5000217020×2
- WASHER-LOCK,TOOTHED - 5000217034×2
- Stator - 5000216959×1
- BEARING-BALL - 5000217012×1
- RING-COMPENSATING - 5000217032×2
- HOUSING-MOTOR - 5000216949×1
- WASHER-LOCK - 5000216912×2
- NUT-HEXAGON - 5000216843×2
- SCREW-CAP,HEX HD. - 5000217022×4
- Washer - 5000217031×4
- WASHER-LOCK - 5000217035×4
- SCREW-CHEESE HD. - 5000217028×4
- 505000216964Not stockedPower supply cable with plug 115V×1
- Strain relief - 5000216918×1
- Screw - 5000217018×2
- FILTER-INTERFERENCE - 5000216953×1
- SWITCH-PRESS - 5000216958×1
- HANDLE COMPLETE - 5000217005×1
- BUSHING-CABLE - 5000216919×1
- HOLDER-BRUSH - 5000217000×2
- BRUSH-CARBON - 5000216916×2
- Cover cpl. - 5000217001×2
- Protection cpl. RCP 16 - 5100000026×1
