RCP-20/120 20MM CUTTING/BENDNG

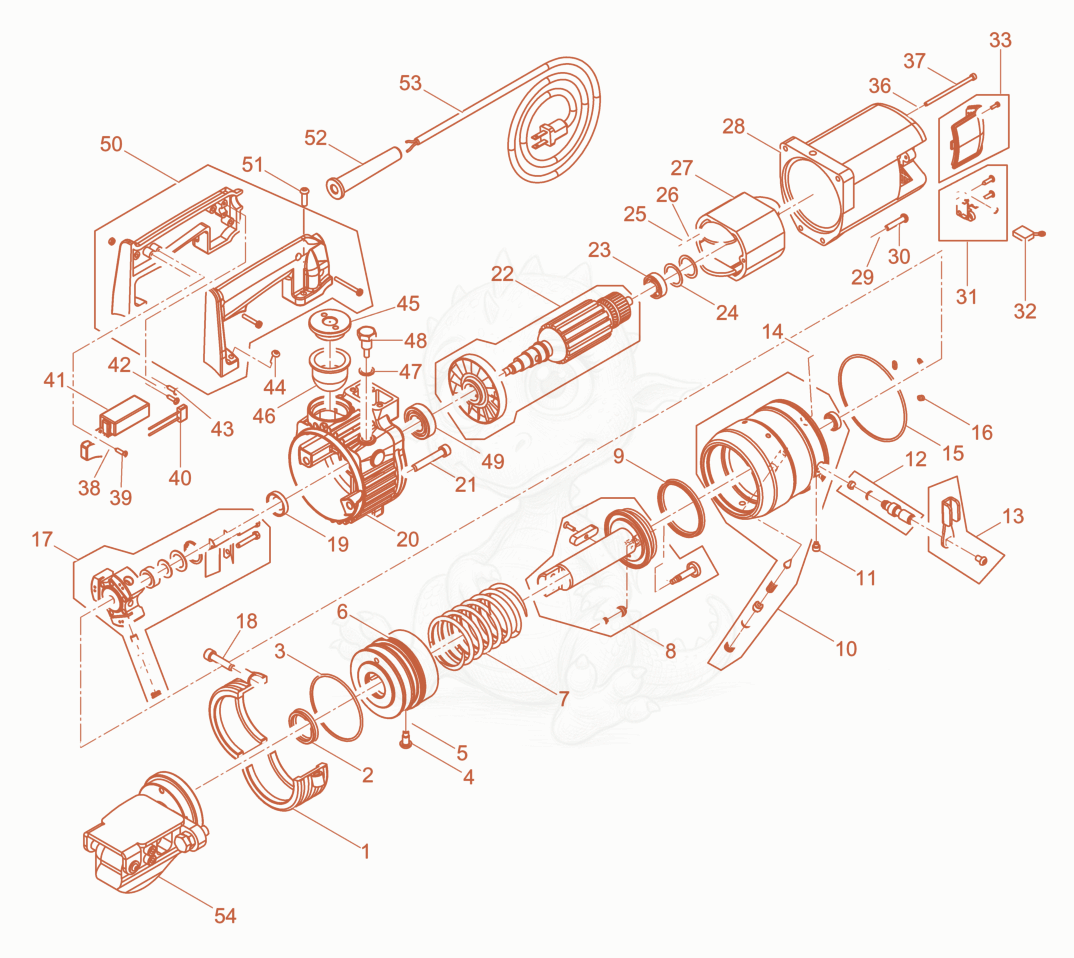

RCP-20/120 Reinforcement Cutting Equipment Diagram
- SET-FIXING - 5000216965×1
- Gasket - 5000216915×1
- O-Ring - 5000216942×1
- Screw - 5000216882×1
- WASHER-COPPER - 5000217048×1
- Support - 5000216875×1
- SPRING-COMPRESSION - 5000216854×1
- Piston cpl. - 5000216974×1
- Gasket - 5000216913×1
- Cylinder assembly cpl. - 5000217082×1
- SCREW-CHEESE HD. - 5000216891×1
- pressure relief - 5000216994×1
- Lever cpl. - 5000216995×1
- O-Ring - 5000216933×3
- O-Ring - 5000216930×1
- O-Ring - 5000216917×3
- kit-pump - 5000217009×1
- SCREW-CHEESE HD. - 5000216835×1
- SEAL-OIL - 5000217014×1
- HOUSING-PUMP - 5000216883×1
- SCREW-CHEESE HD. - 5000216840×3
- ROTOR CPL. - 5000217075×1
- BEARING-BALL - 5000217012×1
- RING-COMPENSATING - 5000217032×2
- NUT-HEXAGON - 5000216843×2
- WASHER-LOCK,TOOTHED - 5000217034×2
- Stator - 5000216957×1
- HOUSING-MOTOR - 5000216948×1
- WASHER-LOC - 5000217029×5
- Screw - 5000217045×5
- HOLDER-BRUSH - 5000216999×2
- BRUSH-CARBON - 5000216916×2
- Cover cpl. - 5000216981×2
- SCREW-CHEESE HD. - 5000216858×2
- SCREW-CHEESE HD. - 5000216858×2
- Washer - 5000216847×2
- Screw - 5000217017×2
- FILTER-INTERFERENCE - 5000216953×1
- SWITCH-PRESS - 5000216952×1
- Strain relief - 5000216918×1
- Screw - 5000217018×2
- Screw - 5000217046×2
- CAP-FUEL TANK - 5000216885×1
- Diaphragm - 5000216929×1
- RING-SEAL - 5000217033×1
- PLUG-SCREW - 5000217006×1
- BEARING-BALL - 5000217013×1
- HANDLE COMPLETE - 5000216998×1
- Screw - 5000217030×2
- BUSHING-CABLE - 5000216919×1
- CABLE-POWER SUPPLY W/PLUG 120V - 5000216962×1
- Cutter head - 5000216967×1
