RD10 ROLLER,DOUBLE DRUM

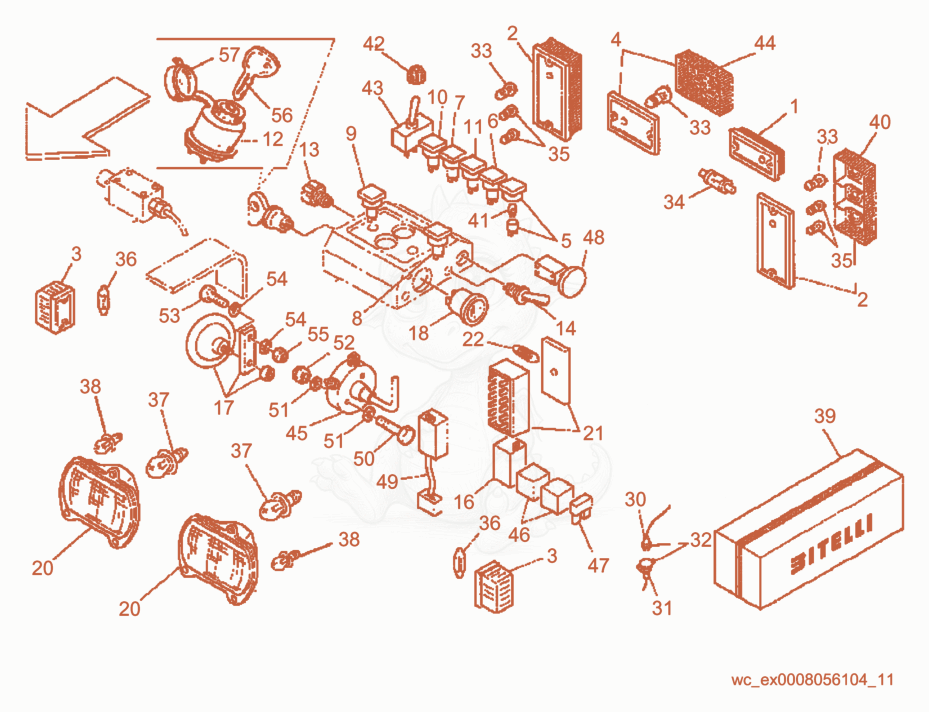

RD10 Road Electric System Diagram
- NLA LIGHT - 5000113290×1
- LIGHT - 5000112515×2
- LIGHT-LEFT - 5000112517×2
- LIGHT - 5000112510×1
- Light-warning - 5000114471×1
- Light-warning - 5000114456×1
- Light-warning - 5000114457×1
- Light-warning - 5000114458×1
- LIGHT-WARNING - 5000114459×1
- Light-warning - 5000114460×1
- NLA LIGHT-WARNING - 5000114461×1
- BLOCK-IGNITION - 5000113294×1
- Switch - 5000114462×1
- INDICATOR - 5000113300×1
- NLA LIGHT - 5000113284×2
- INDICATOR-FLASHING LIGHT - 5000113303×1
- Horn - 5000112554×1
- HOURMETER - 5000119297×1
- SWITCH-PRESSURE - 5000112559×1
- LIGHT-COMPLETE - 5000112519×2
- BOX-FUSE - 5000112557×1
- FUSE 8A - 5000113302×4
- FUSE 16A - 5000112867×1
- Receptacle - 5000112864×1
- NLA RECEPTACLE - 5000113295×1
- LIGHT - 5000112539×3
- NLA LIGHT - 5000112535×1
- LIGHT - 5000112537×4
- LIGHT - 5000113293×2
- NLA LIGHT - 5000112541×2
- LIGHT - 5000112537×2
- NLA KIT-ELECTRICAL,RD10 - 5000113305×1
