RD10 ROLLER,DOUBLE DRUM

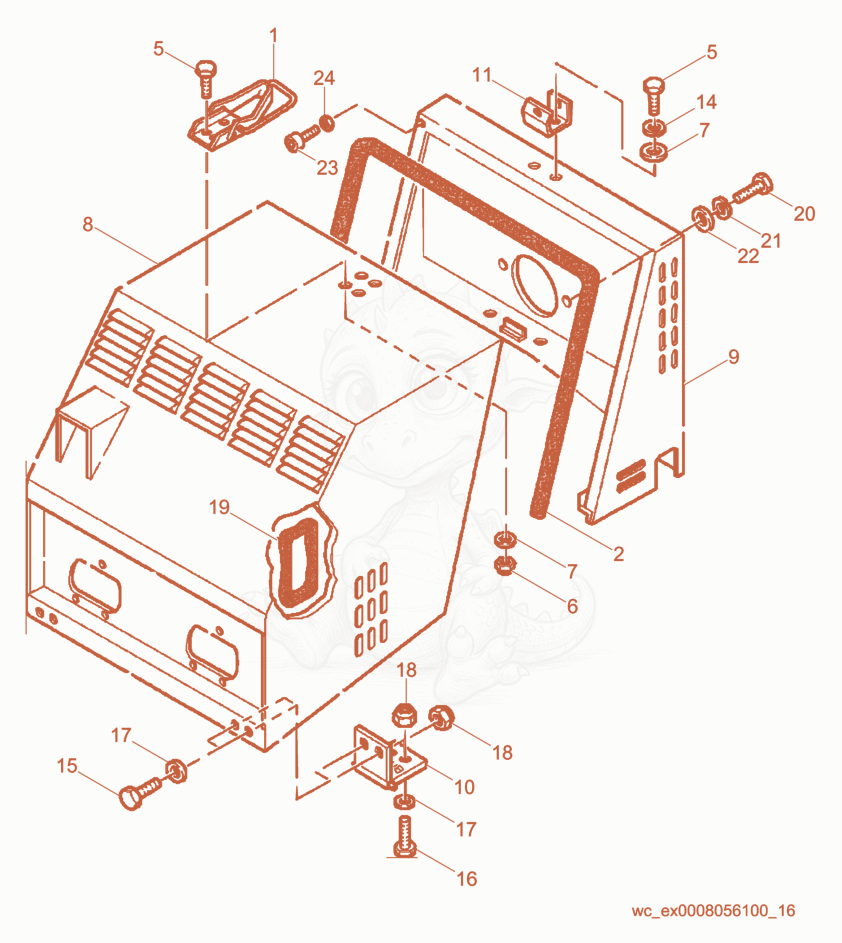

RD10 Engine Hood Diagram
- NLA GUARD - 5000113216×1
- 25000112886Not stockedGasket×1
- NLA BOLT - 5000112761×6
- NUT-LOCK - 5000112803×4
- Washer - 5000113260×6
- HOOD - 5000113420×1
- HOOD - 5000113970×1
- Hinge - 5000112731×2
- PLATE-STRIKE - 5000113217×1
- NLA WASHER - 5000112817×2
- NLA BOLT - 5000113233×4
- BOLT - 5000112768×4
- NLA WASHER - 5000113262×8
- NUT-LOCK - 5000112805×8
- GASKET-LGTH,760MM - 5000113309×1
- BOLT - 5000112765×2
- Washer - 5000112819×2
- Washer - 5000112828×2
- NLA BOLT - 5000113971×2
- NLA NUT - 5000113972×2
