RD 16-100

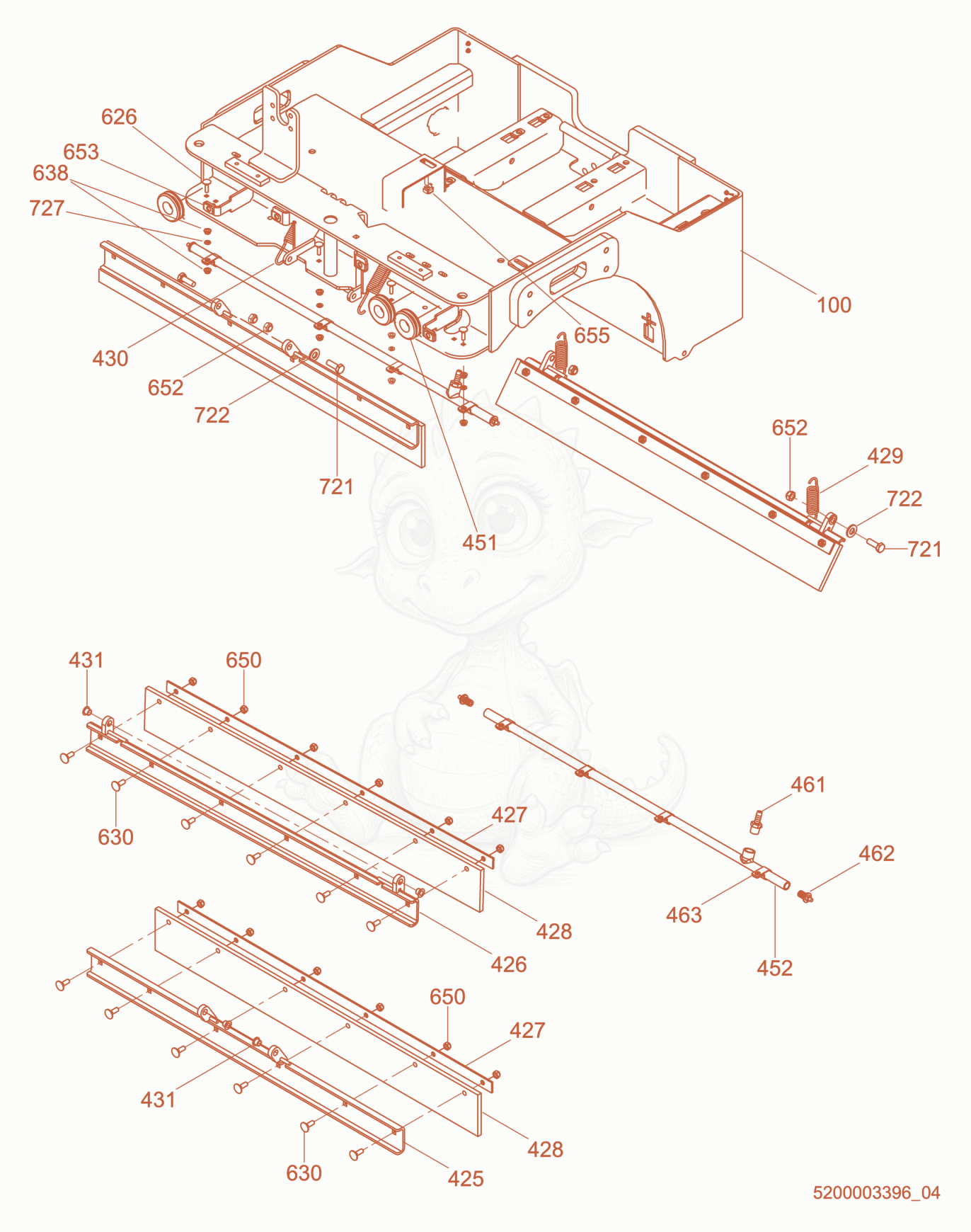

RD16-100 Front Scraper Bars Diagram

Exploded parts diagram of the Front Scraper Bars of a Wacker Neuson RD16-100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1505000161705
    $1,818.20
    FRAME-FRONT,RD16 P-5000176420 - 5000161705×1
  • 4255000173302
    $83.76
    SCRAPER-NARROW,WELDMENT P-5000176420 - 5000173302×1
  • 4265000173304
    $468.71
    SCRAPER-WIDE,WELDMENT P-5000176420 - 5000173304×1
  • 4275000173361
    $88.53
    PLATE-STRIP,SCRAPER P-5000176420 - 5000173361×2
  • 4285000183040
    $163.36
    SCRAPER-WIDE, BLACK - 5000183040×2
  • 4295000164491
    $15.61
    Spring - 5000164491×2
  • 4305000164411
    $17.51
    SPRING-SCRAPER - 5000164411×2
  • 4315000164538
    $0.90
    BUSHING-SCRAPER - 5000164538×4
  • 4515000163464
    $1.36
    GROMMET,1IDX1-3/4ODX1/4 WOG - 5000163464×3
  • 4525200025661Not stocked
    Spray bar cpl.×1
  • 4615000163475
    $3.11
    BARB-O6NPT,STRAIGHT - 5000163475×1
  • 4625000177405
    $3.18
    PLUG-HEX,BLACK NYLON 1/4 NPT - 5000177405×2
  • 4635000164304
    $0.58
    CLAMP-TUBE .750 - 5000164304×4
  • 6265000164579
    $1.29
    Bolt-Carriage M6x25-4.6,Blk EP3 - 5000164579×4
  • 6305000163950
    $0.56
    Bolt-Carriage M8x25-8.8,Blk EP3 - 5000163950×12
  • 6385000164067
    $0.18
    NUT-M6-HEX.FLG.HD-8-ZNC-3M.2353 - 5000164067×8
  • 6505000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×12
  • 6525000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×4
  • 7215000011438
    $0.58
    SCREW M10 X 35 HX.HD. - 5000011438×4
  • 7225000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×4
  • 7275000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×4
