Vibration Roller RD 18-80

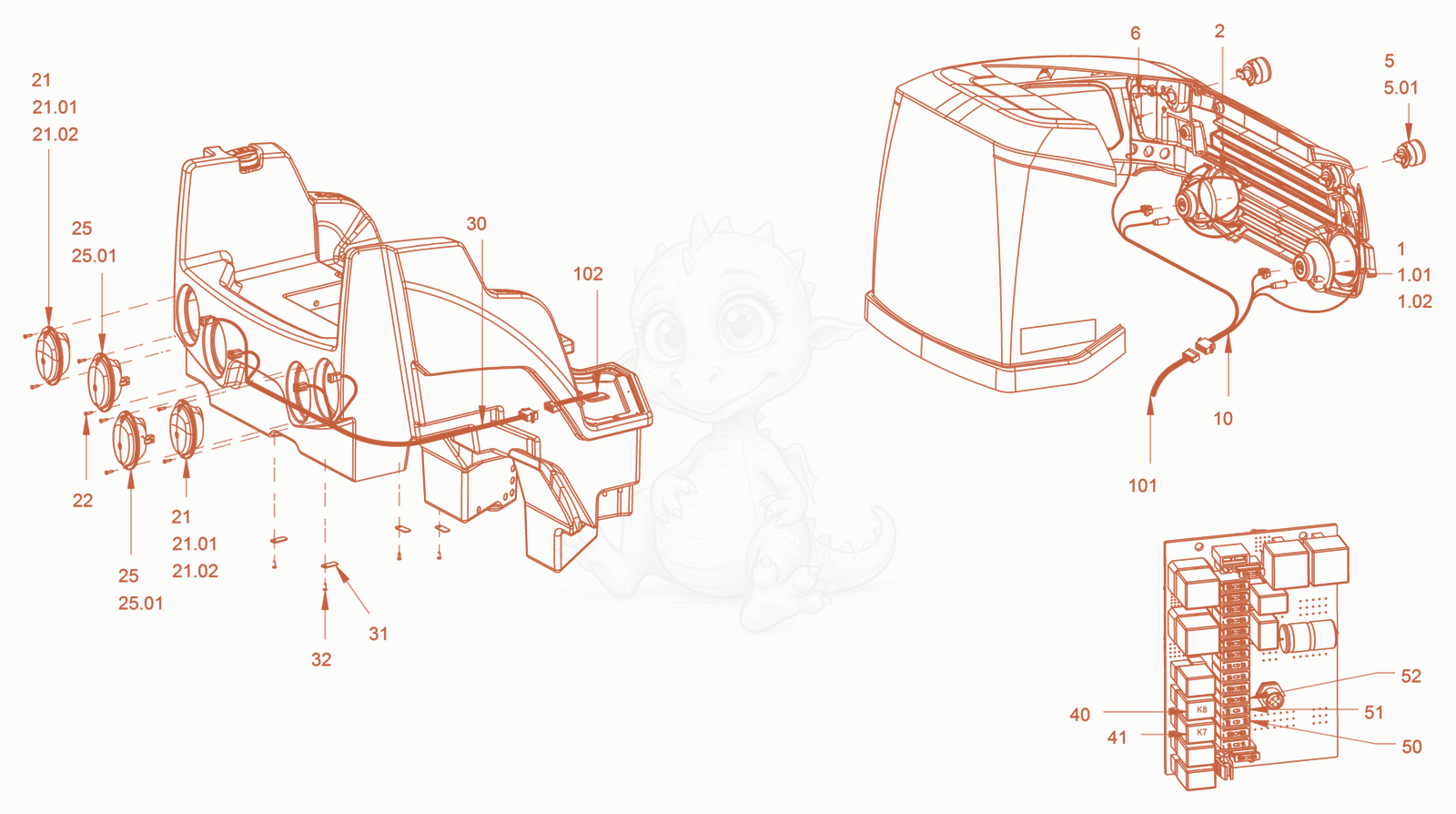

RD18-80SE electrical system (with lighting) Diagram
- Working light - 5100011799×2
- Lamp - 5100012468×2
- Lamp - 5100013522×2
- O-ring seal - 5100011991×4
- Direction indicator - 5100011800×2
- Lamp - 5100012074×2
- Sheet metal screw - 5100013582×4
- Wire harness (lighting) - 5100011883×1
- Tail light - 5100011802×2
- Lamp - 5100012213×2
- Lamp - 5100013448×2
- Sheet metal screw - 5100011607×8
- Reversing light - 5100011801×2
- Lamp - 5100013448×2
- Wire harness - 5100011884×1
- Metal plate - 5100011728×7
- Sheet metal screw - 5100011902×7
- Relay - 5100011583×1
- Relay - 5100011583×1
- Blade fuse - 5100013579×1
- Blade fuse - 5100013579×1
- Blade fuse - 5100013580×1
- Wire harness (front frame) - 5100012757Unknown×1
- 1015100058637Not stockedwire harness front frame×1
- Wire harness (rear frame) - 5100012758×1
