Vibration Roller RD 18-80

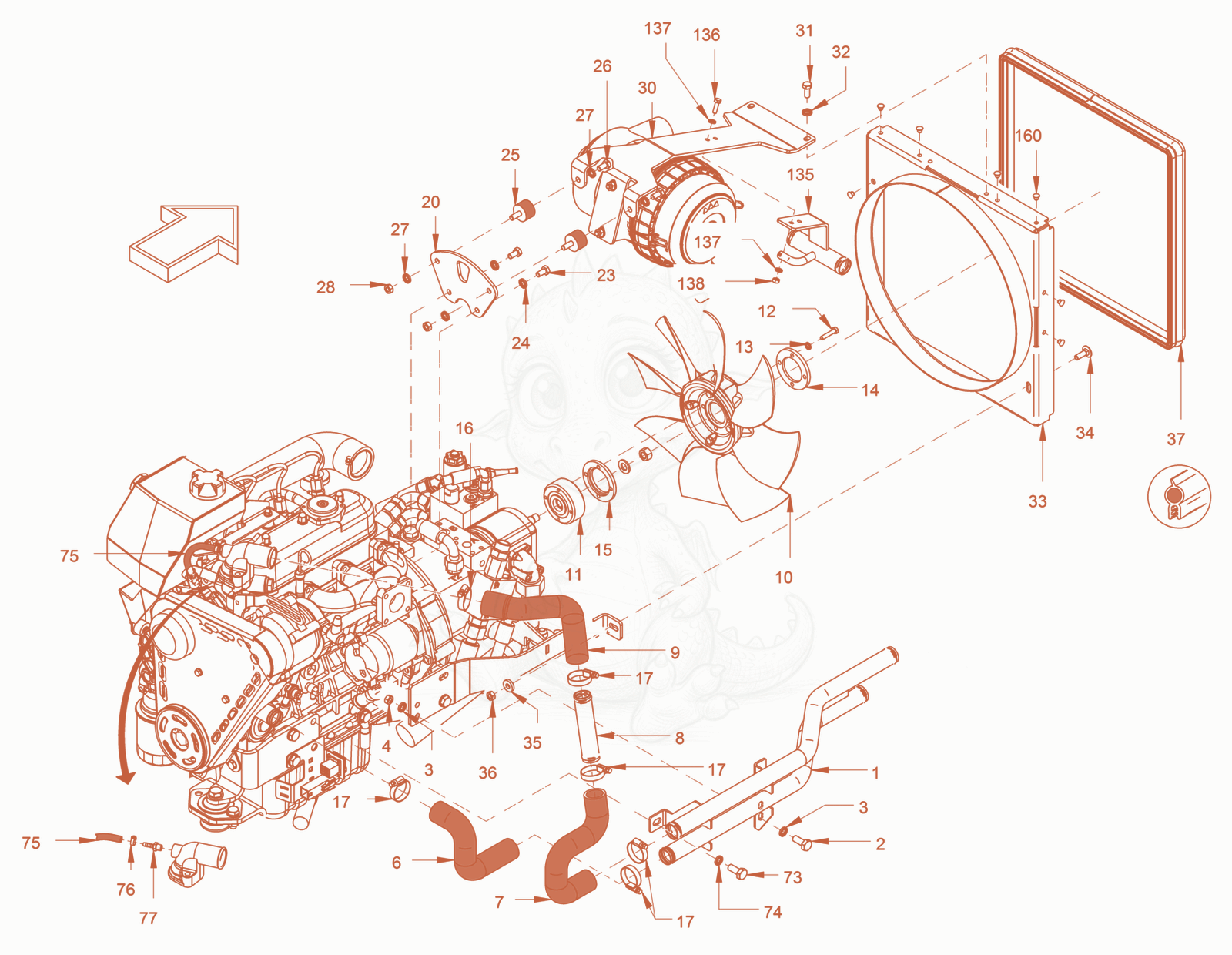

RD18-80SE cooling Diagram
- Pipe - 5100012252×1
- Hexagon screw - 5100012613×2
- Locking washer - 5100012966×4
- Hexagon nut - 5100012546×2
- Cooling-water hose - 5100012354×1
- Cooling-water hose - 5100012355×1
- Pipe - 5100012360×1
- Cooling-water hose - 5100012359×1
- Fan - 5100012312×1
- Fan free-wheeling - 5100011920×1
- Hexagon screw - 5100012614×4
- Locking washer - 5100012965×4
- 145100016826Not stockedsupporting ring×1
- Spacer ring - 5100012169×1
- Hose clip - 5100011637×1
- Hose clip - 5100013452×5
- Bracket - 5100012238×1
- Hexagon screw - 5100012515×2
- Locking washer - 5100012966×2
- Rubber buffer - 5100013550×2
- Hexagon screw - 5100013457×2
- Locking washer - 5100012966×4
- Hexagon nut - 5100012546×2
- Bracket - 5100012239×1
- Hexagon screw - 5100012517×2
- Locking washer - 5100012966×2
- Cover - 5100012243×1
- Mushroom head screw - 5100012780×2
- Locking washer - 5100012966×2
- Hexagon nut - 5100012546×2
- Sealing profile - 5100013642×1.6
- Hexagon screw - 5100012553×4
- Locking washer - 5100012967×4
- Flexible tubing - 5100013640×0.13
- Pipe clip - 5100013540×2
- hose nozzle - 5100016827×1
- Cooling-water hose - 5100012349×1
- Hexagon screw - 5100012608×2
- Locking washer - 5100012965×4
- Hexagon nut - 5100012545×2
- Filler cap - 5100013530×7
