Vibration Roller RD 18-80

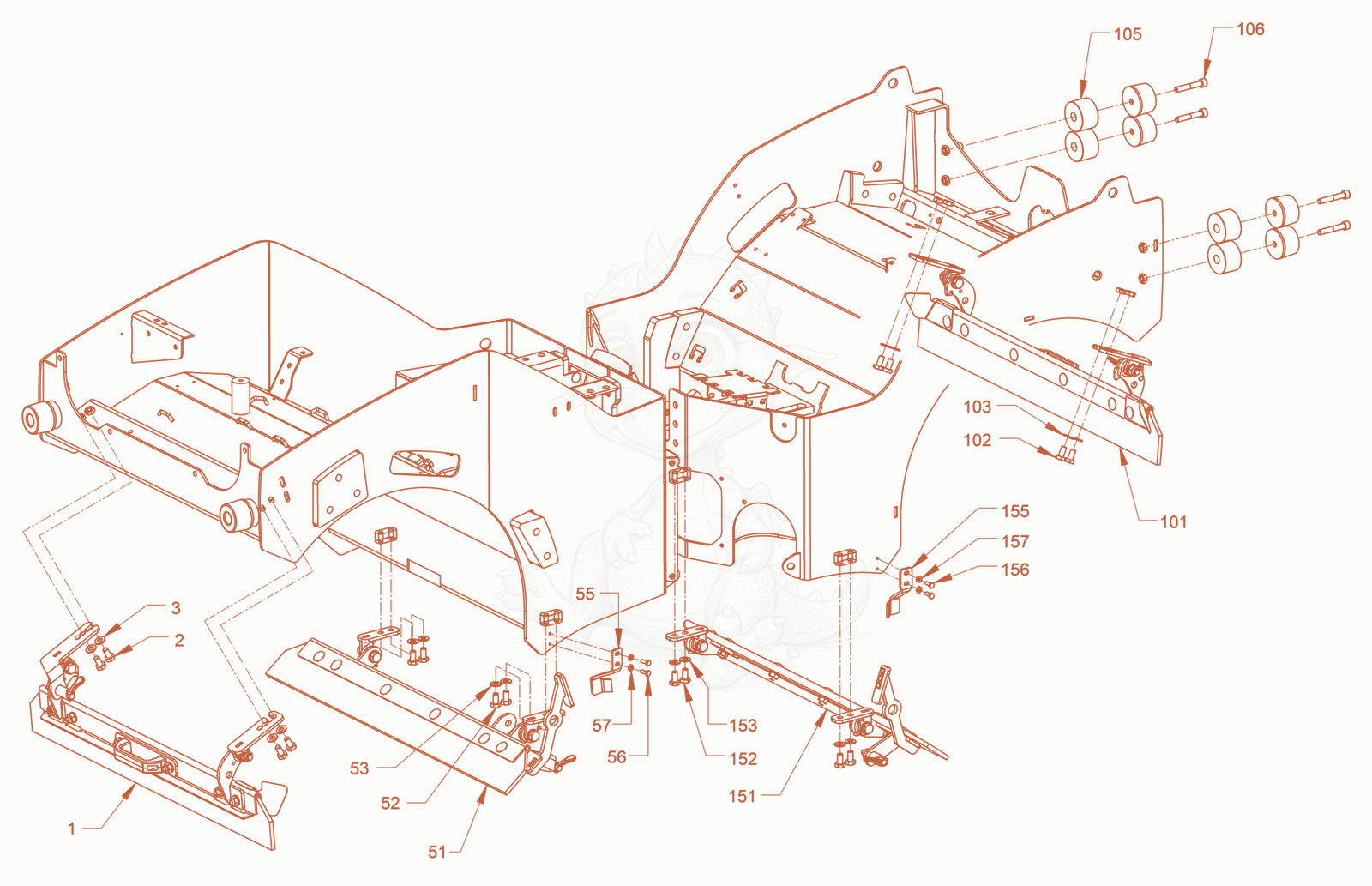

RD18-80SE scraper Diagram

Exploded parts diagram of the scraper of a Wacker Neuson RD18-80SE, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15100013086
$929.98
Scraper - 5100013086×1
25100012520
$1.57
Hexagon screw - 5100012520×4
35100012967
$1.57
Locking washer - 5100012967×4
515100013087
$872.94
Scraper - 5100013087×1
525100011479
$1.57
Hexagon screw - 5100011479×4
535100012967
$1.57
Locking washer - 5100012967×4
555100013058
$70.18
Holder-up - 5100013058×1
565100012572
$20.09
Hexagon screw - 5100012572×2
575100012965
$3.01
Locking washer - 5100012965×2
1015100013086
$929.98
Scraper - 5100013086×1
1025100012520
$1.57
Hexagon screw - 5100012520×4
1035100012967
$1.57
Locking washer - 5100012967×4
1055100012350
$78.89
Spacer block - 5100012350×4
1065100011485
$2.88
Cheese-head screw - 5100011485×4
1515100013088
$866.61
Scraper - 5100013088×1
1525100011479
$1.57
Hexagon screw - 5100011479×4
1535100012967
$1.57
Locking washer - 5100012967×4
1545100013064
$72.19
Holder-up - 5100013064×1
1555100013064
$72.19
Holder-up - 5100013064×1
1565100012572
$20.09
Hexagon screw - 5100012572×2
1575100012965
$3.01
Locking washer - 5100012965×2
