RD 24-100.3

RD24-100.3 engine control Diagram

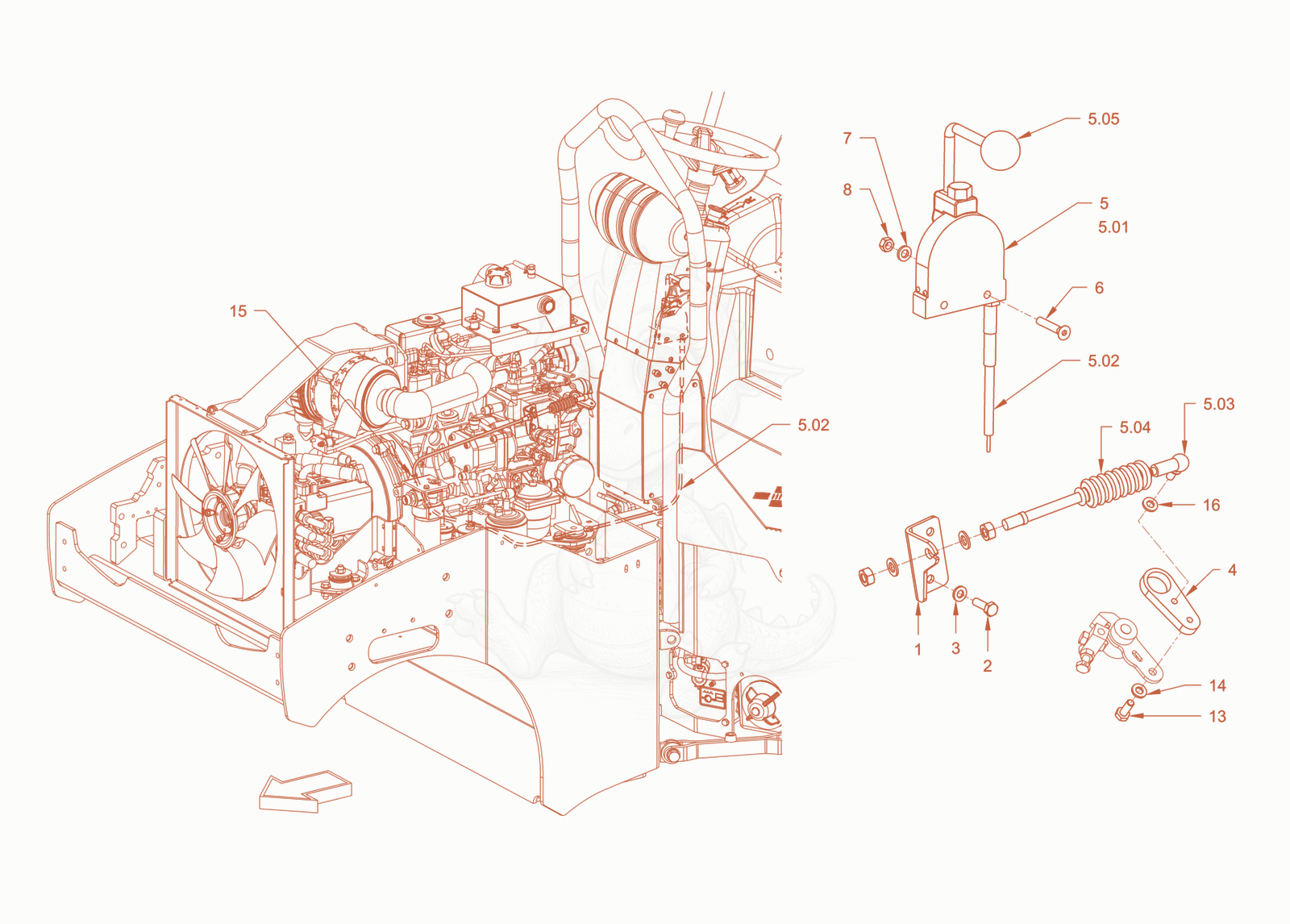

Exploded parts diagram of the engine control of a Wacker Neuson RD24-100.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100012163Not stocked
    Bracket×1
  • 25100012608
    $1.57
    Hexagon screw - 5100012608×2
  • 35100012965
    $3.01
    Locking washer - 5100012965×2
  • 45100012164Not stocked
    Lever×1
  • 55100011733
    $16.24
    Angle joint - 5100011733Unknown×1
  • 55100011950
    $6.22
    Bellows - 5100011950Unknown×1
  • 55100012588
    $21.52
    Ball handle - 5100012588Unknown×1
  • 55100012821
    $274.90
    Actuating cable - 5100012821Unknown×1
  • 55100066889Not stocked
    actuating cable×1
  • 55100066901Not stocked
    hand lever×1
  • 65100013561
    $1.57
    Countersunk screw - 5100013561×2
  • 75100012965
    $3.01
    Locking washer - 5100012965×2
  • 85100012545
    $1.57
    Hexagon nut - 5100012545×2
  • 135100012600
    $1.57
    Hexagon screw - 5100012600×1
  • 145100012965
    $3.01
    Locking washer - 5100012965×1
  • 155100013573
    $1.49
    Wire fastener - 5100013573×10
  • 165100012965
    $3.01
    Locking washer - 5100012965×1
