RD 24-100.3

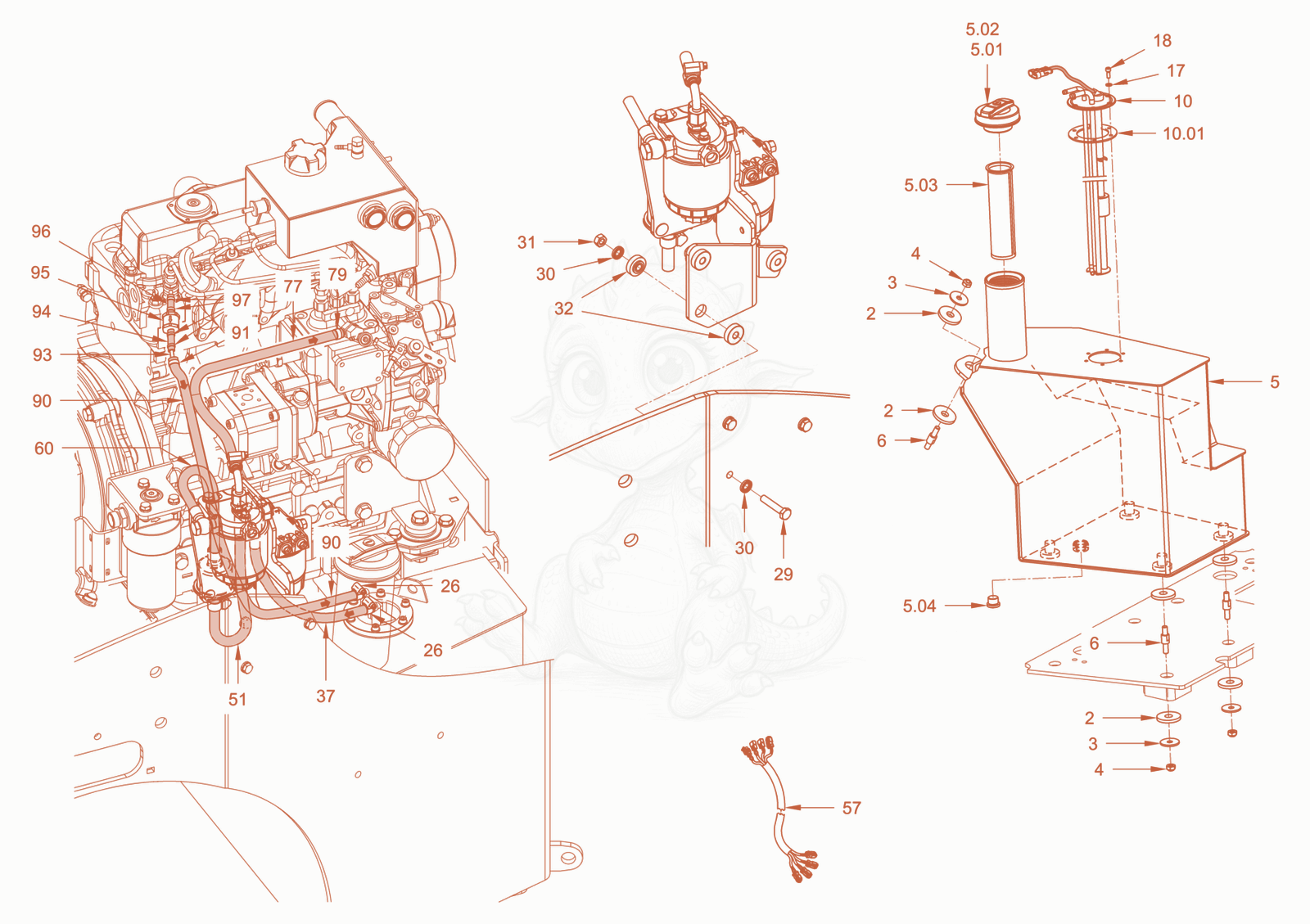

RD24-100.3 fuel system Diagram

Exploded parts diagram of the fuel system of a Wacker Neuson RD24-100.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100011731
    $3.15
    Rubber washer - 5100011731×10
  • 35100011824
    $1.66
    Washer - 5100011824×5
  • 45100012547
    $1.49
    Hexagon nut - 5100012547×5
  • 55100011829
    $240.82
    Tank cap, with lock - 5100011829Unknown×1
  • 55100011990
    $40.41
    Strainer - 5100011990Unknown×1
  • 55100013557
    $20.31
    Key - 5100013557Unknown×1
  • 55100066877Not stocked
    fuel tank×1
  • 55100082393Not stocked
    locking screw×1
  • 65100011730
    $40.68
    Spacer pin - 5100011730×4
  • 105100012475
    $611.67
    Fuel gauge - 5100012475×1
  • 105100013236
    $23.18
    Seal - 5100013236×1
  • 175100013502
    $1.57
    Sealing ring - 5100013502×6
  • 185100011443
    $1.57
    Cheese-head screw - 5100011443×6
  • 265100013179
    $5.50
    Hose clip - 5100013179×2
  • 295100034768
    $0.85
    hexagon screw - 5100034768×3
  • 305100012966
    $1.57
    Locking washer - 5100012966×6
  • 315100012546
    $1.57
    Hexagon nut - 5100012546×3
  • 325100011498
    $20.69
    Silentbloc - 5100011498×6
  • 375100085847Not stocked
    hose×1
  • 515100085848Not stocked
    hose×1
  • 575100085849Not stocked
    wire harness lengthening×1
  • 605100012623
    $46.59
    Flexible tubing - 5100012623×1
  • 775100013216
    $28.30
    Flexible tubing - 5100013216×0.42
  • 795100013179
    $5.50
    Hose clip - 5100013179×1
  • 905100013216
    $28.30
    Flexible tubing - 5100013216×0.63
  • 915100013179
    $5.50
    Hose clip - 5100013179×1
  • 935100013567
    $5.84
    Reducing piece - 5100013567×1
  • 945100013640
    $100.02
    Flexible tubing - 5100013640×0.08
  • 955100082397Not stocked
    non-return valve×1
  • 965100013640
    $100.02
    Flexible tubing - 5100013640×0.08
  • 975100013540
    $5.06
    Pipe clip - 5100013540×4
