RD 24-100.3

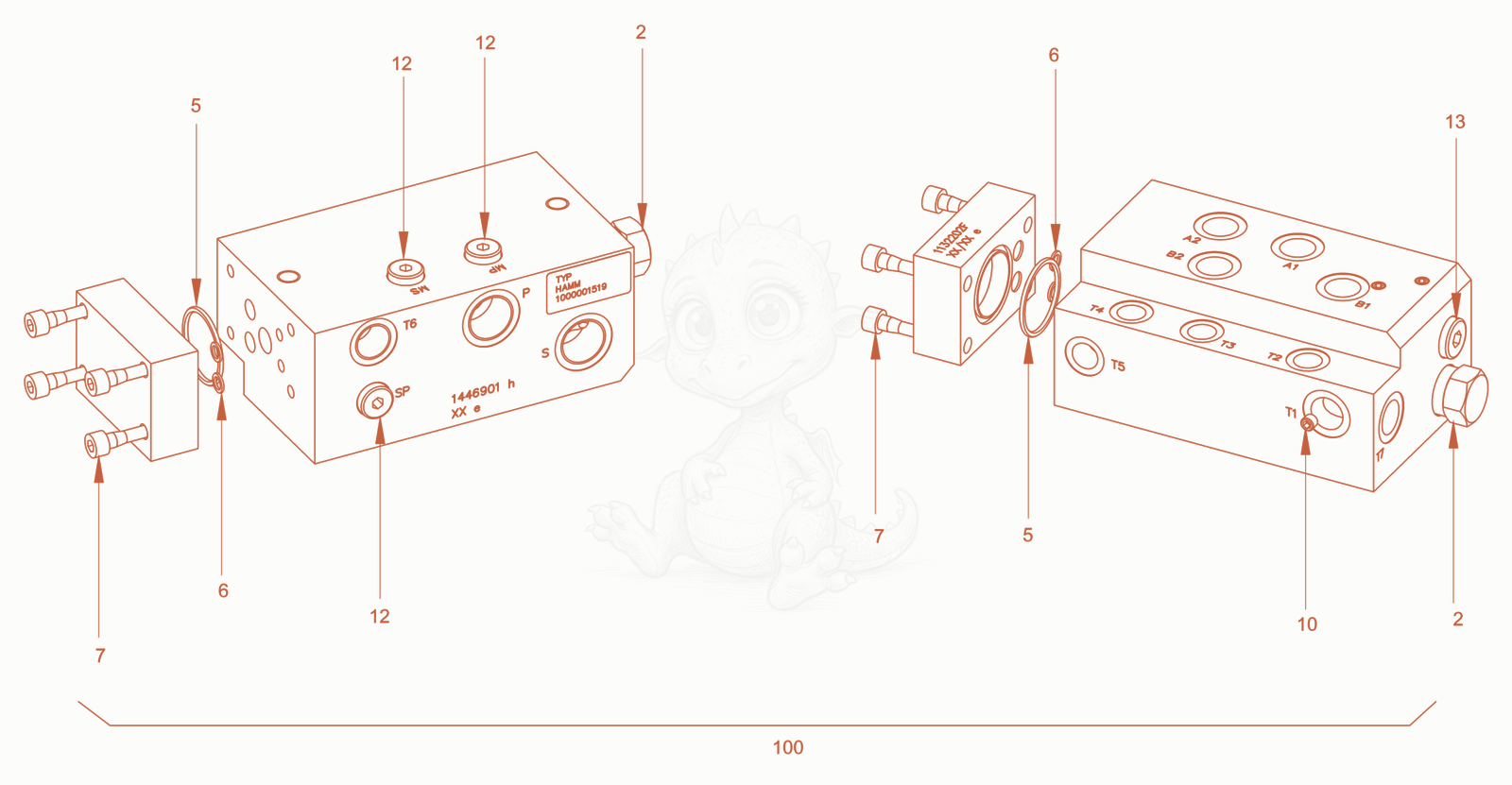

RD24-100.3 collective block Diagram

Exploded parts diagram of the collective block of a Wacker Neuson RD24-100.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100066937Not stocked
    scavenge valve×1
  • 55100012110
    $7.81
    O-ring seal - 5100012110×1
  • 65100011516
    $5.06
    O-ring seal - 5100011516×2
  • 75100013563
    $2.31
    Cheese-head screw - 5100013563×4
  • 105100012111Not stocked
    Nozzle×1
  • 125100066863Not stocked
    locking screw×3
  • 135100066864Not stocked
    locking screw×1
  • 1005100066866Not stocked
    valve block×1
