RD24-100 Tandem Roller

RD24-100 fire extinguisher Diagram

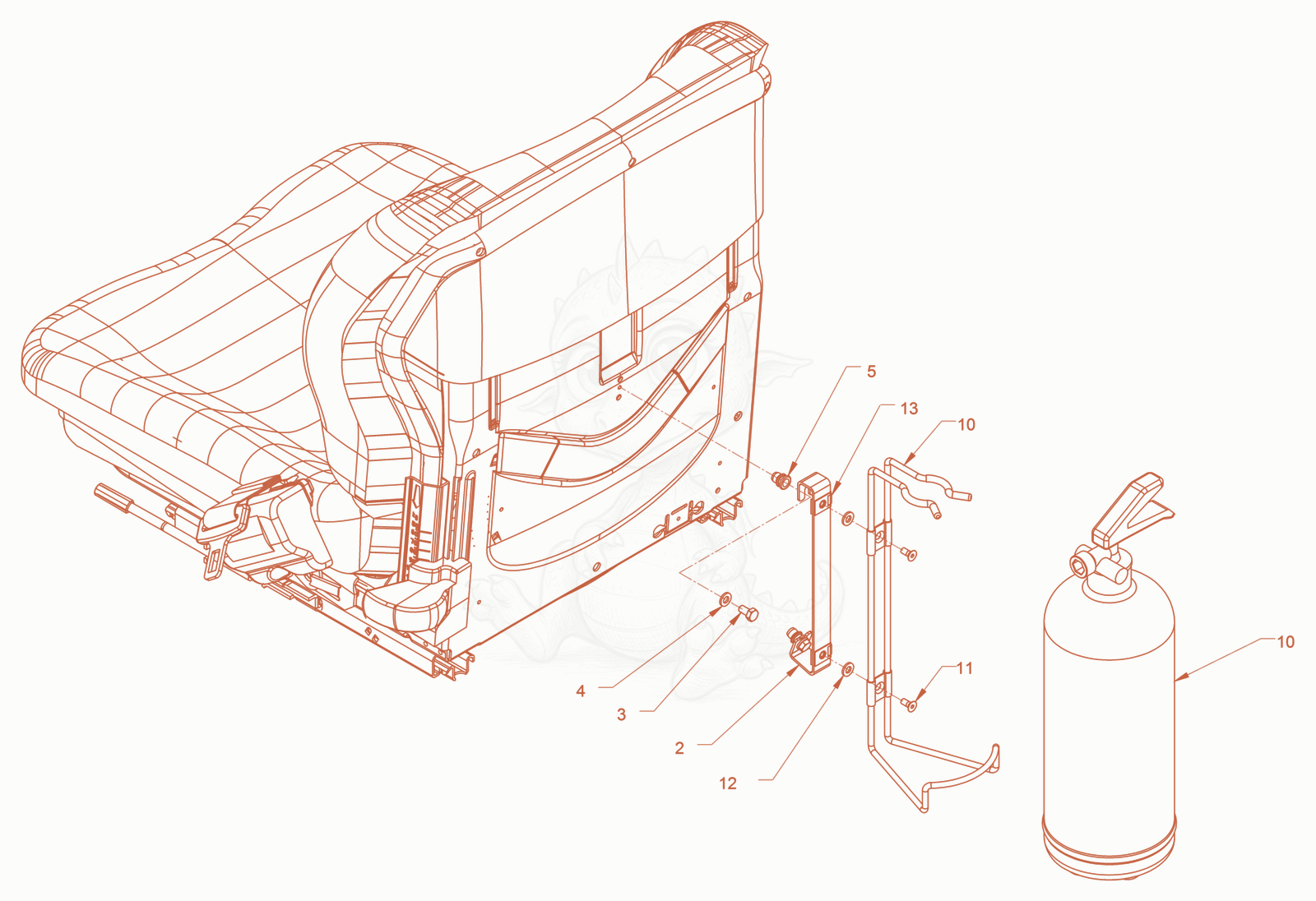

Exploded parts diagram of the fire extinguisher of a Wacker Neuson RD24-100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100033269Not stocked
    holder×1
  • 35100012572
    $20.09
    Hexagon screw - 5100012572×2
  • 45100012965
    $3.01
    Locking washer - 5100012965×2
  • 55100012420
    $2.22
    Blind rivet nut - 5100012420×2
  • 105100022903
    $340.24
    fire extinguisher - 5100022903×1
  • 115100033270
    $1.57
    countersunk screw - 5100033270×2
  • 125100012965
    $3.01
    Locking washer - 5100012965×2
  • 135100013599
    $3.97
    Clip nut - 5100013599×2
