RD24-100 C Tandem Rollers
RD24-100C Parts Diagrams

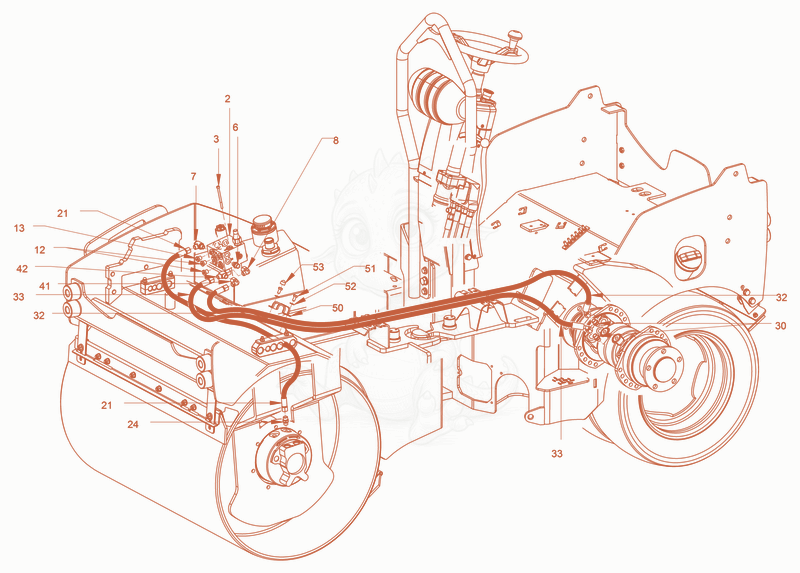

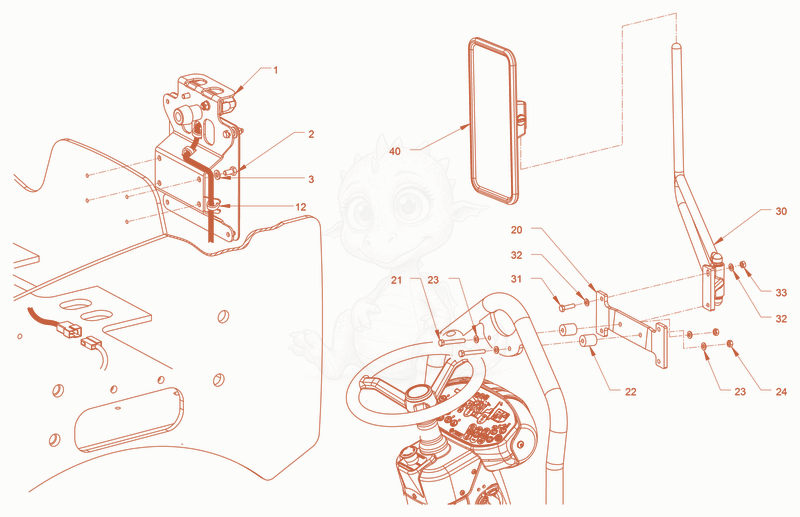

140 factory assemblies. Open one to see the drawing, every part number on it and what we charge for it.

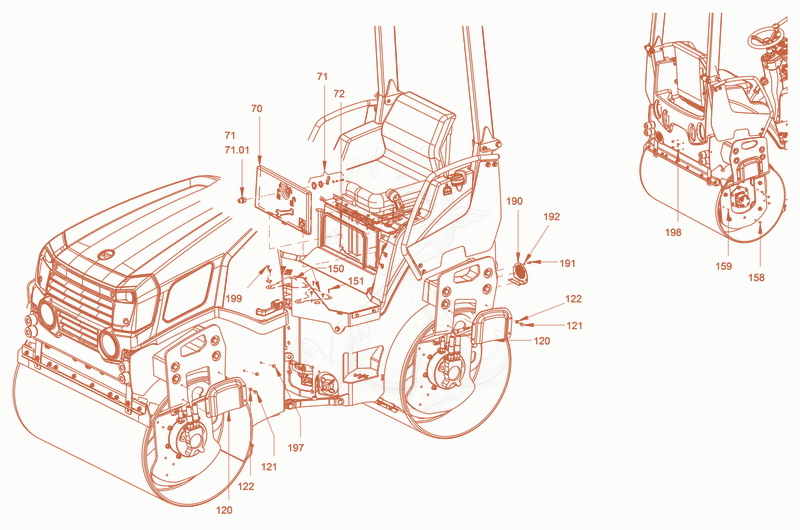

main frame and assemblies

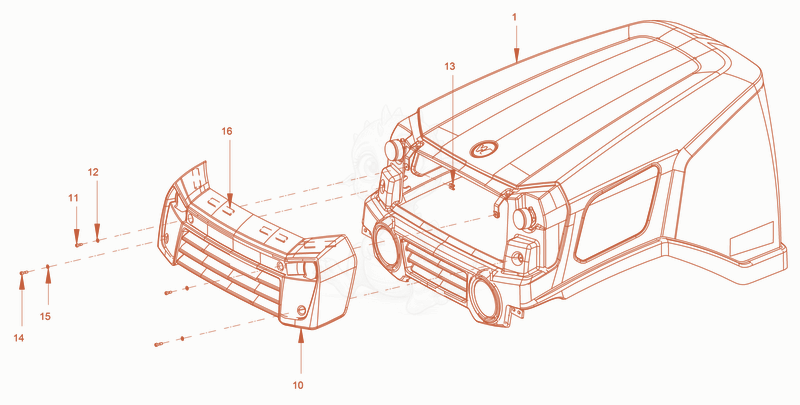

canopies and covers
canopies and covers
canopies and covers
canopies and covers

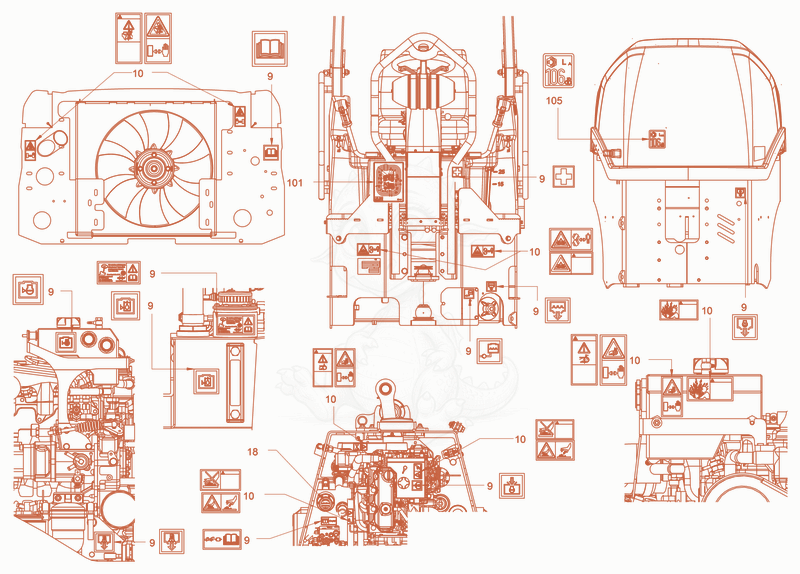

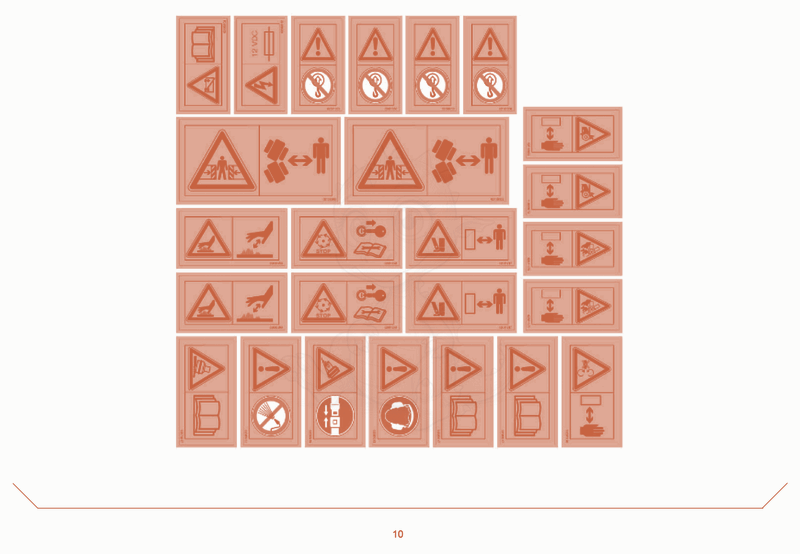

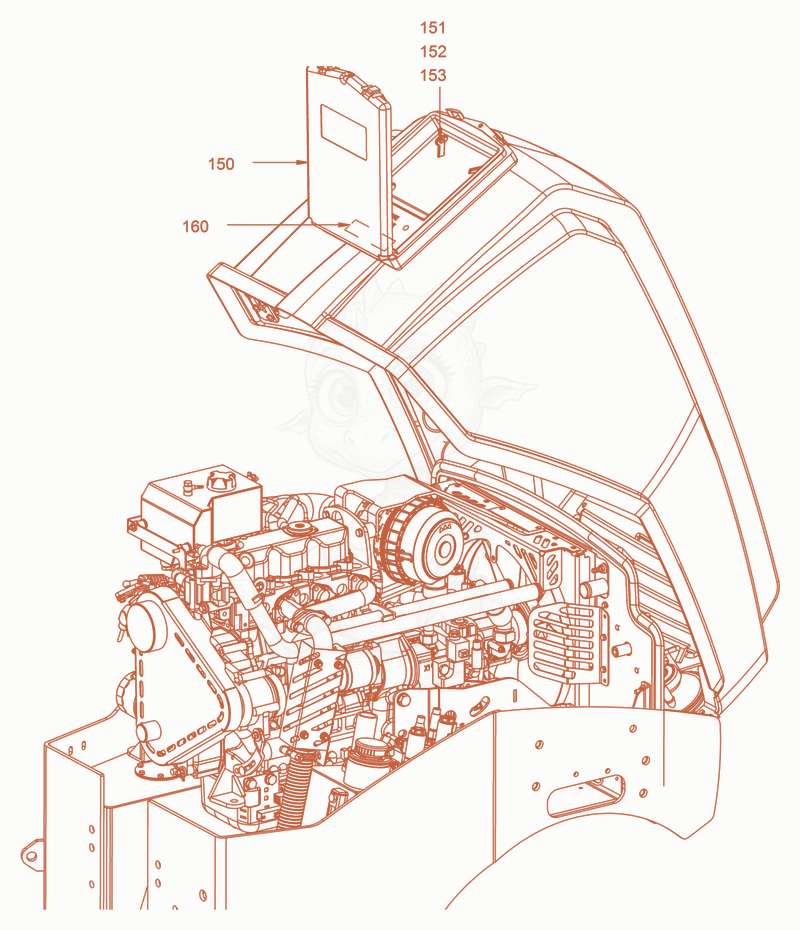

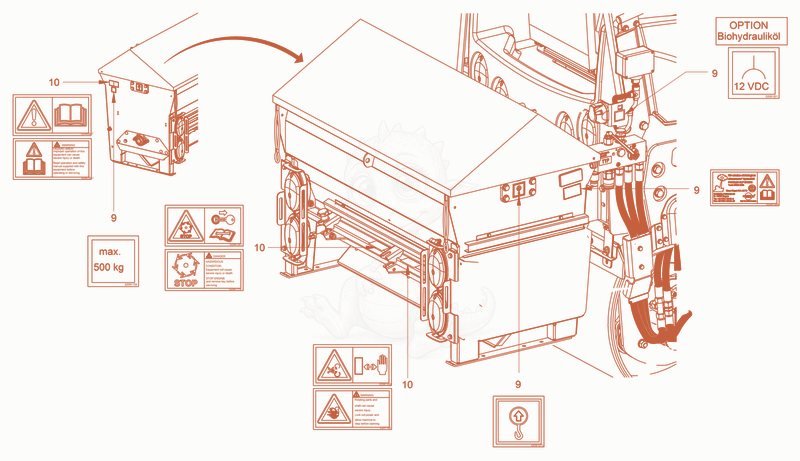

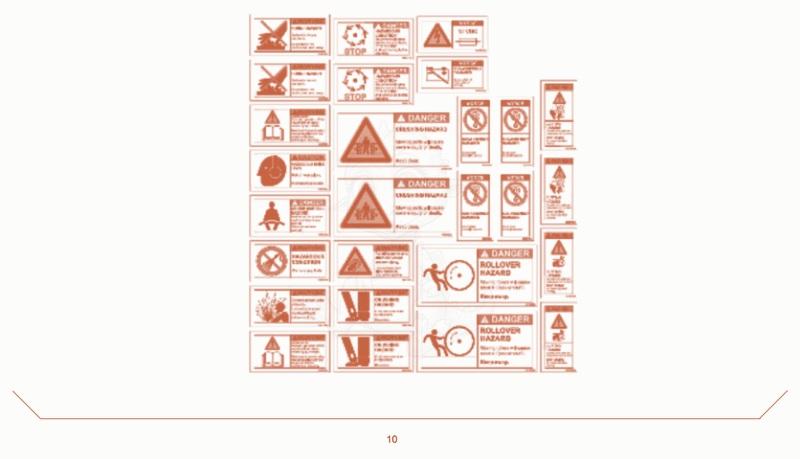

sticker arrangement
sticker arrangement
sticker arrangement
sticker arrangement
sticker arrangement
sticker arrangement
sticker arrangement
sticker arrangement
sticker arrangement
sound-insulation

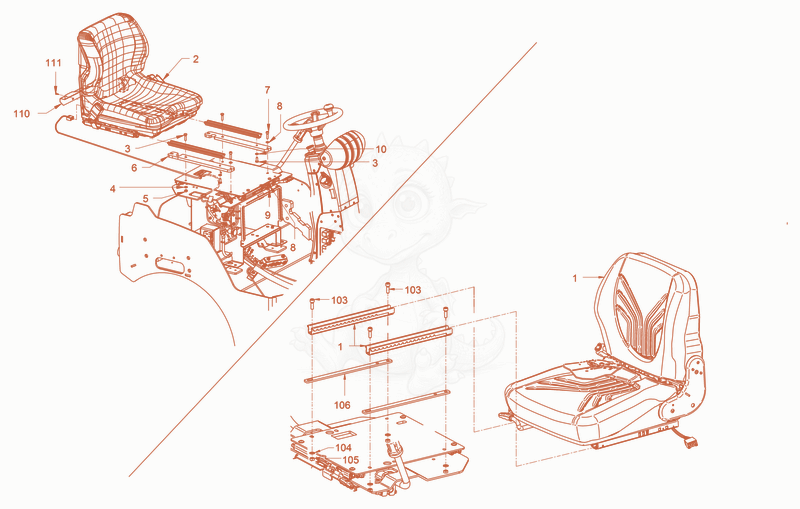

operator's seat standard
operator's seat with adjustment
operator's seat withseat heating

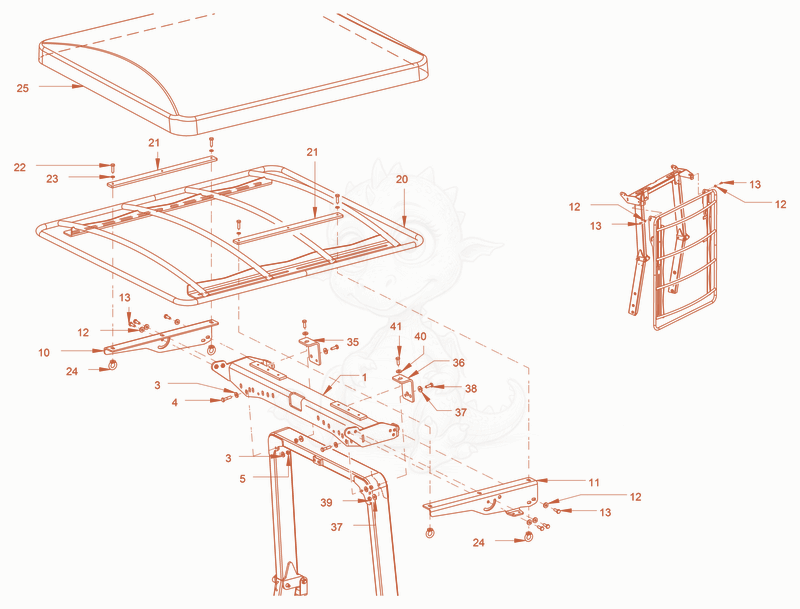

sun roof

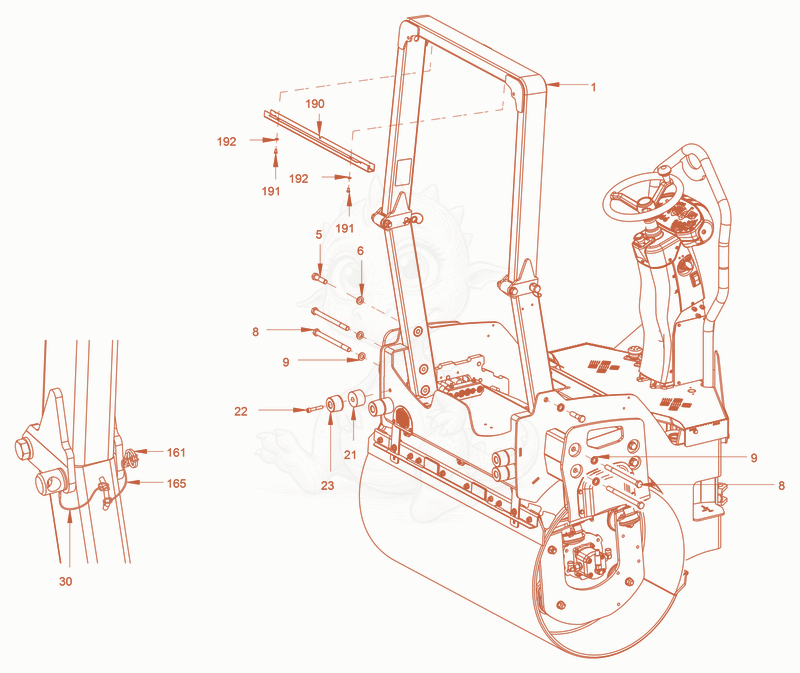

foldable roll over protection
foldable roll over protection
rigid roll over protection

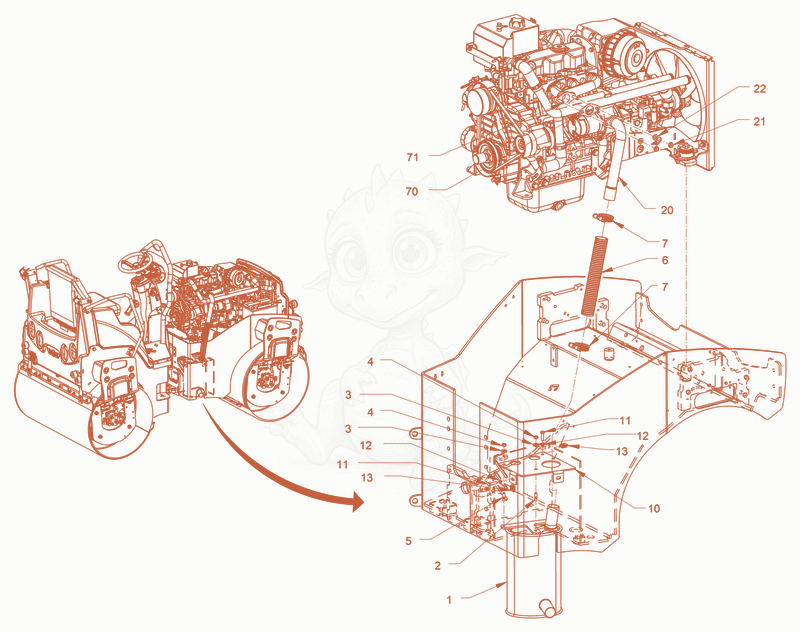

pump drive and engine assembly
pump drive and engine assembly
pump drive and engine assembly
pump drive and engine assembly
fuel system
fuel system
fuel filter
engine control
air filter system
exhaust system

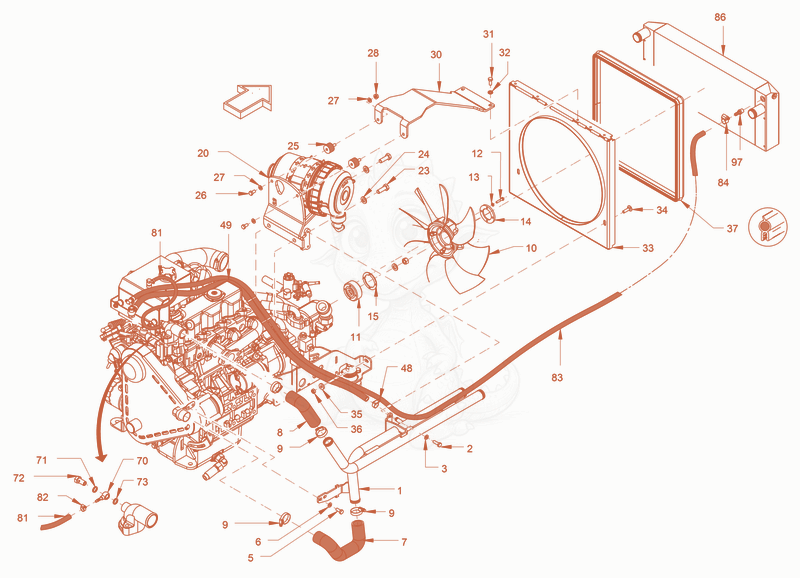

cooling
cooling
cooling
driving gear
pump (vibration drive)
pump (vibration drive)

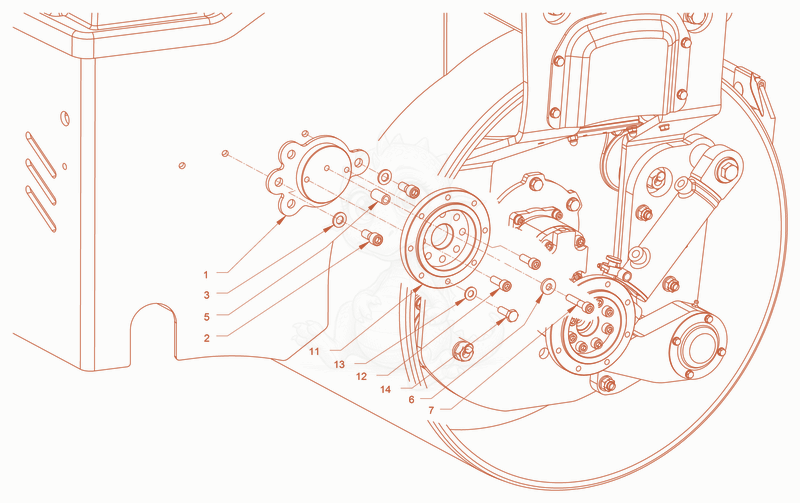

constant motor (vibration drive)
constant motor (vibration drive)
constant motor (oscillation drive)
control block

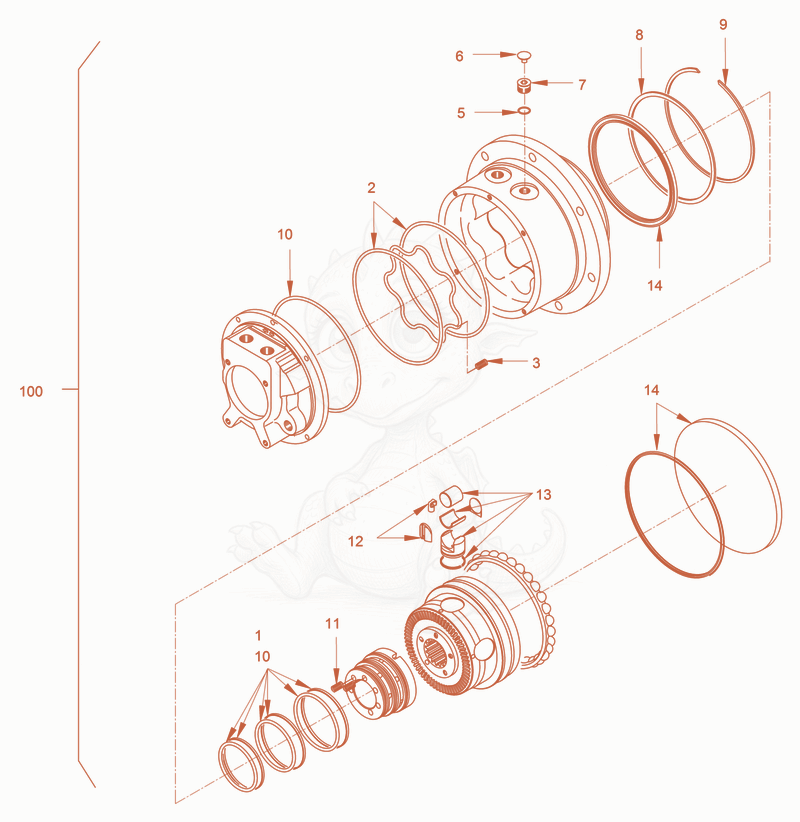

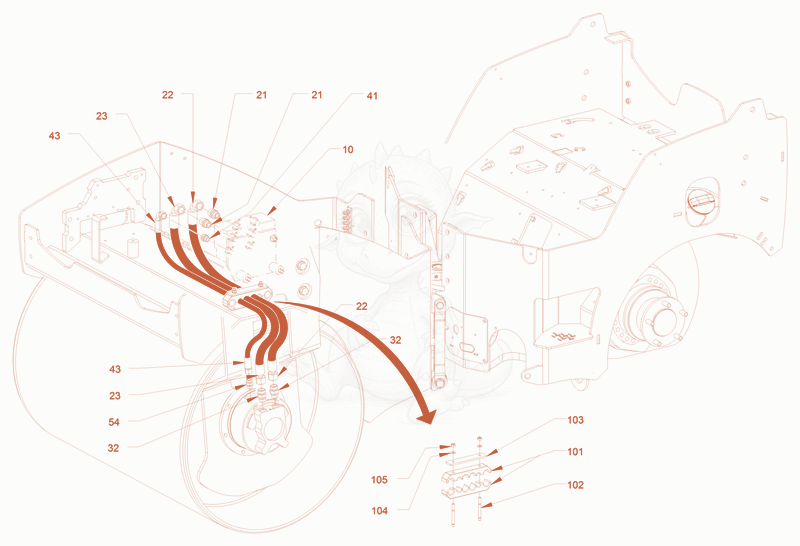

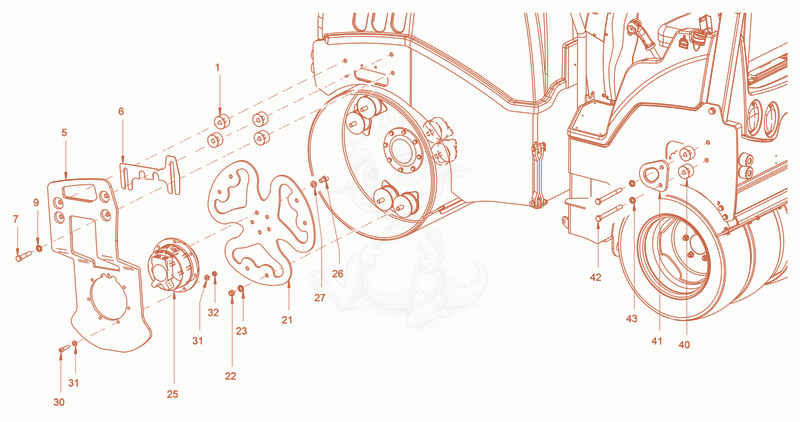

gear hub motor
gear hub motor
gear hub motor

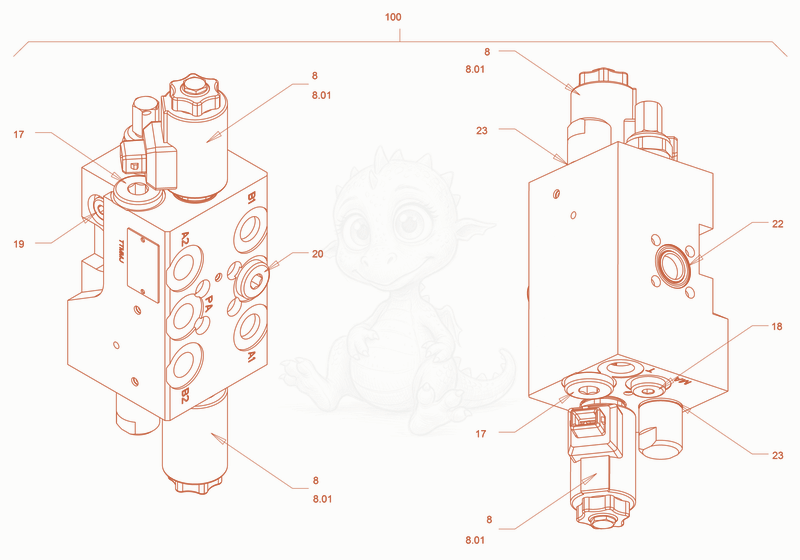

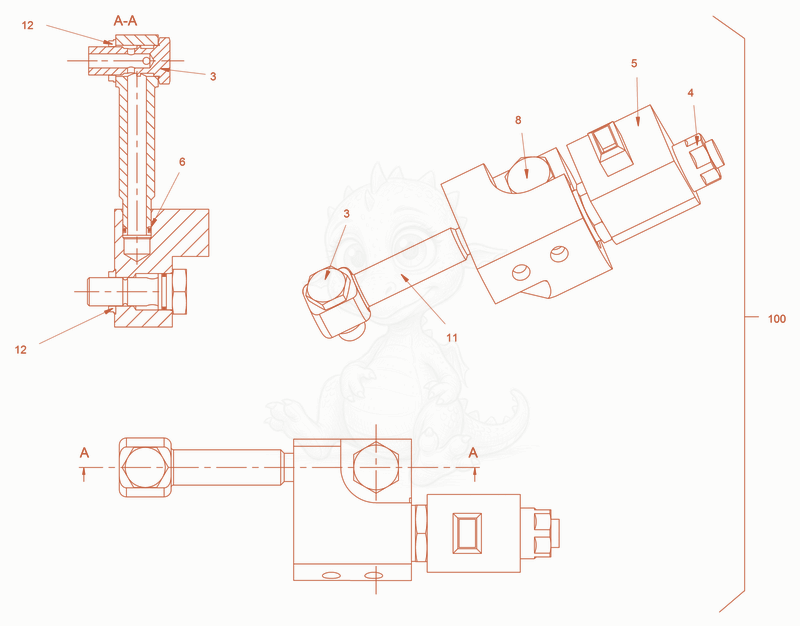

valve block (all-wheel lock)
valve block (edge pressing and cutting device)
valve block (changingover of vibration)
valve block (changing over of vibration)
filter (hydraulic oil)
pump (hydraulic steering system)
collecting block (hydraulic oil)
collecting block (hydraulic oil)
valve block (emergency stop)

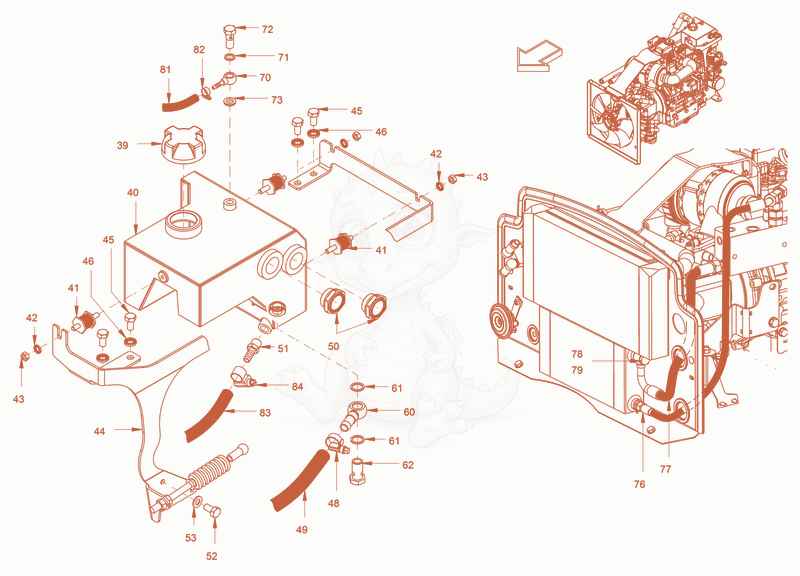

oil tank
oil tank
instrument panel

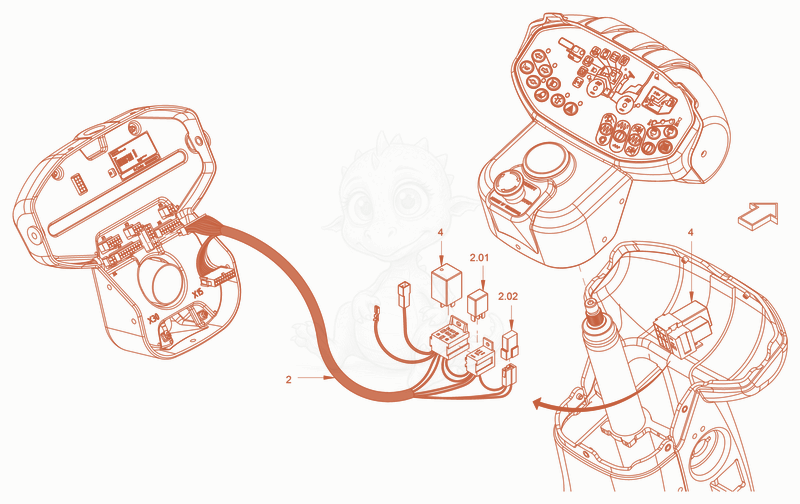

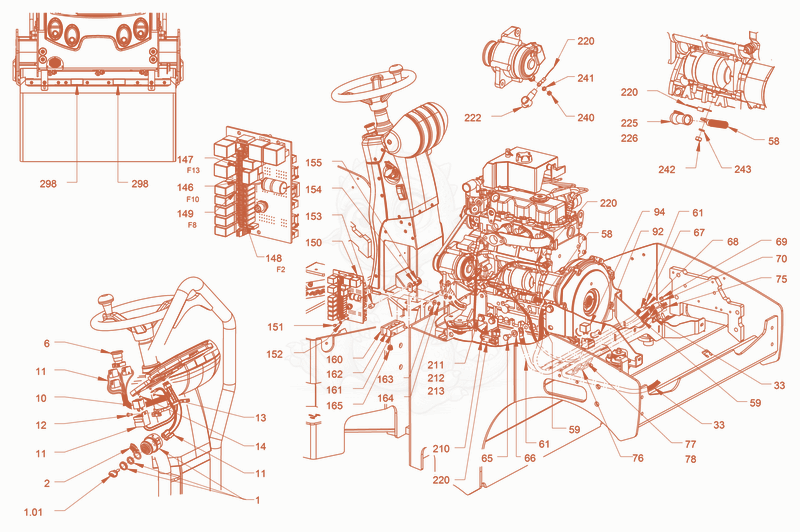

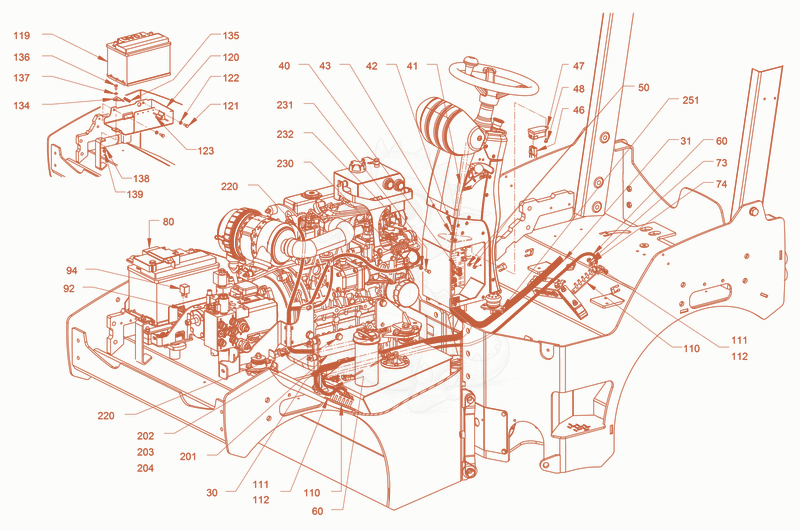

electrical system
electrical system
electrical system
electrical system
electrical system
electrical system
electrical system
electrical system (with lighting)

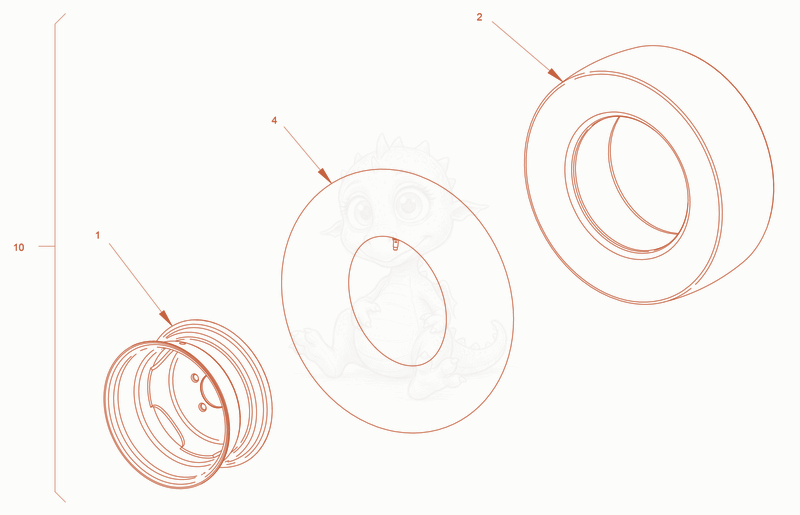

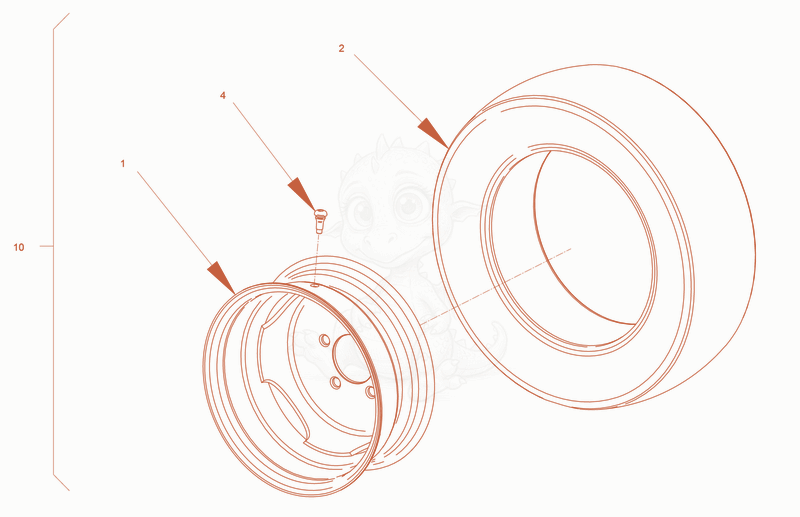

tire equipment
tire equipment

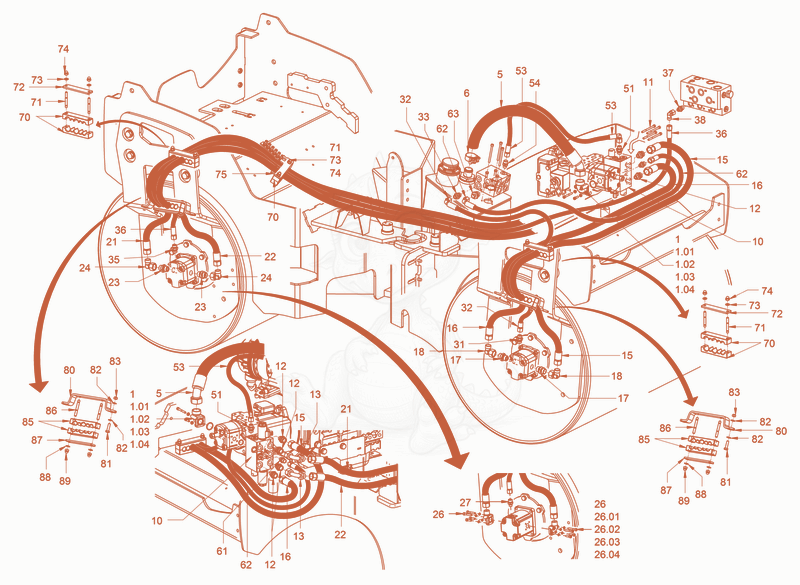

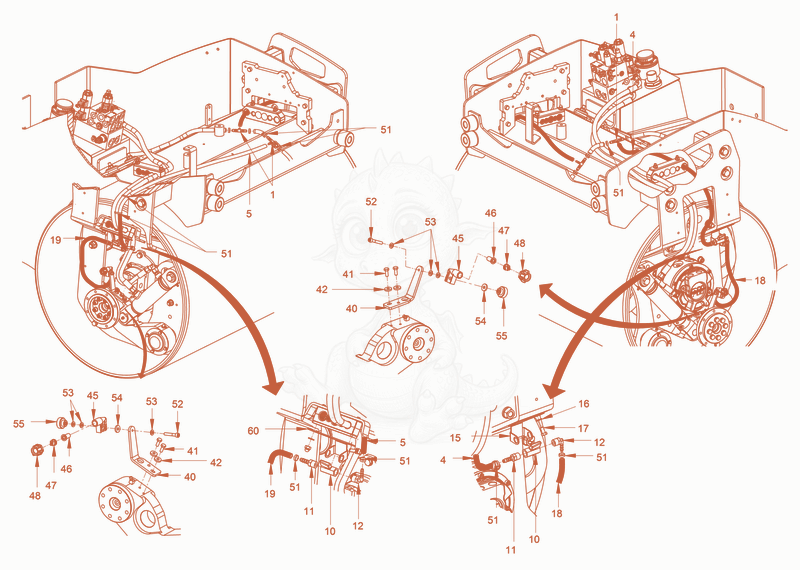

advance drive
advance drive
advance drive
advance drive

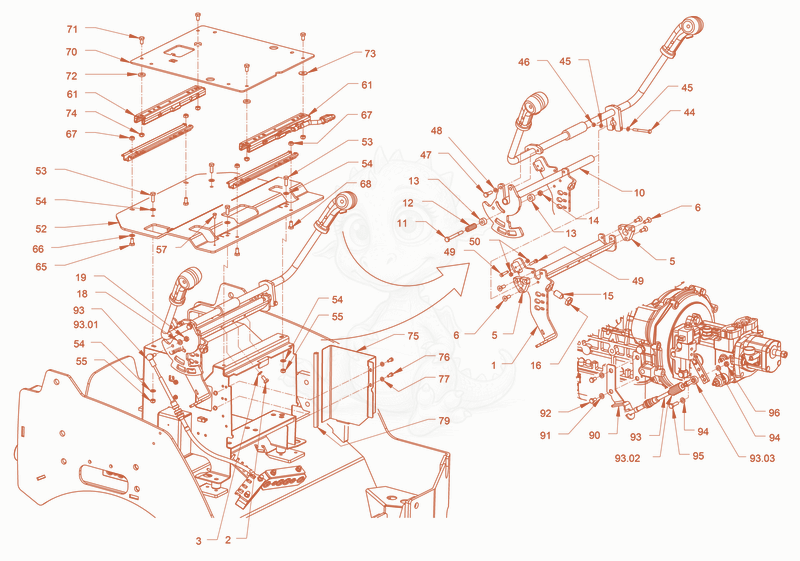

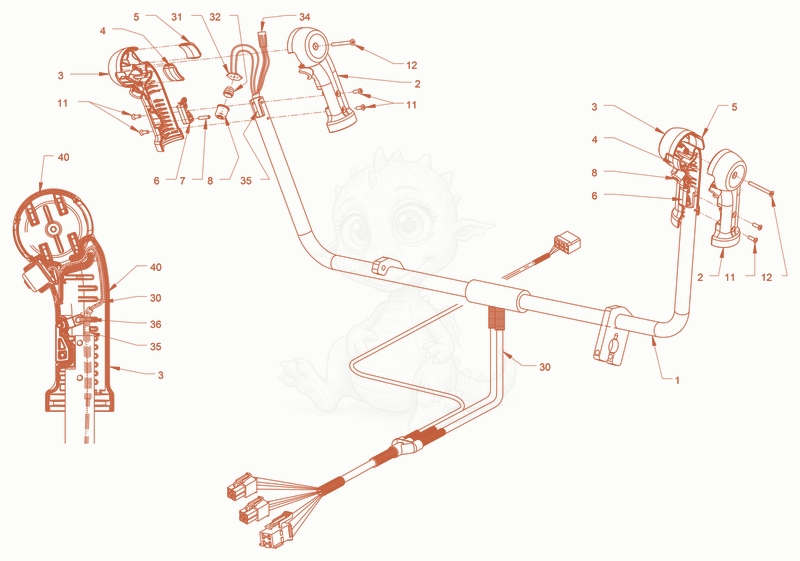

drive shifting
parking brake

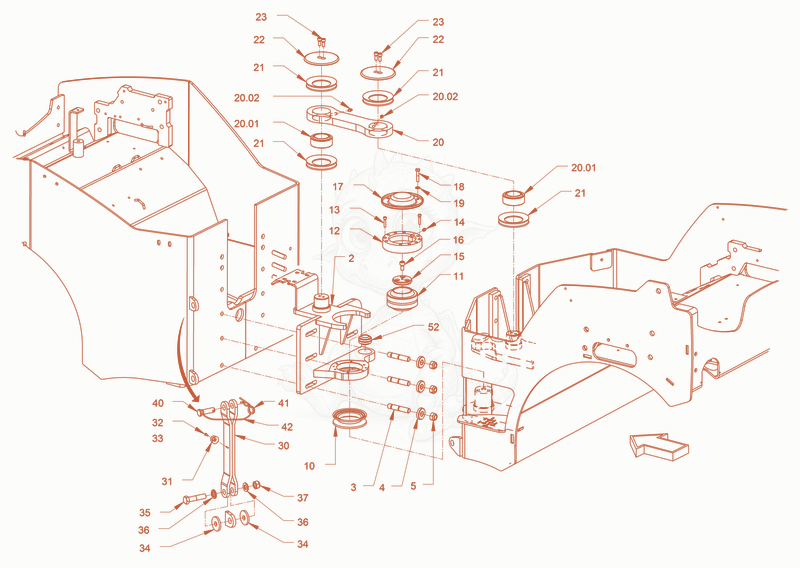

centre pivot assembly

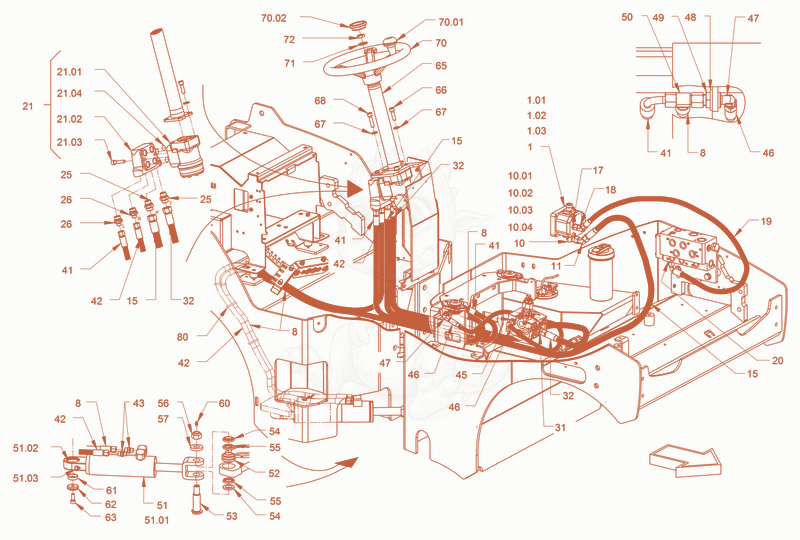

steering

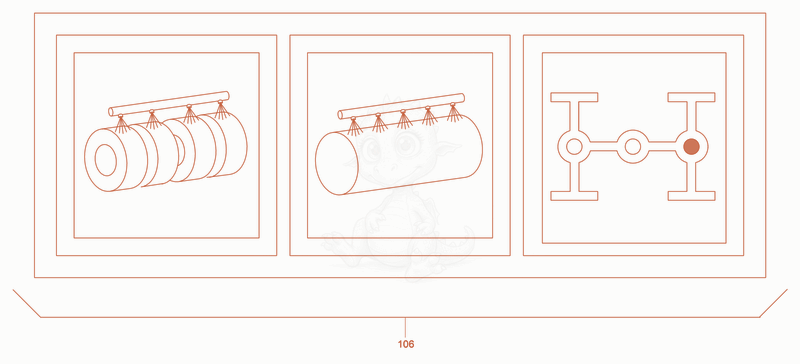

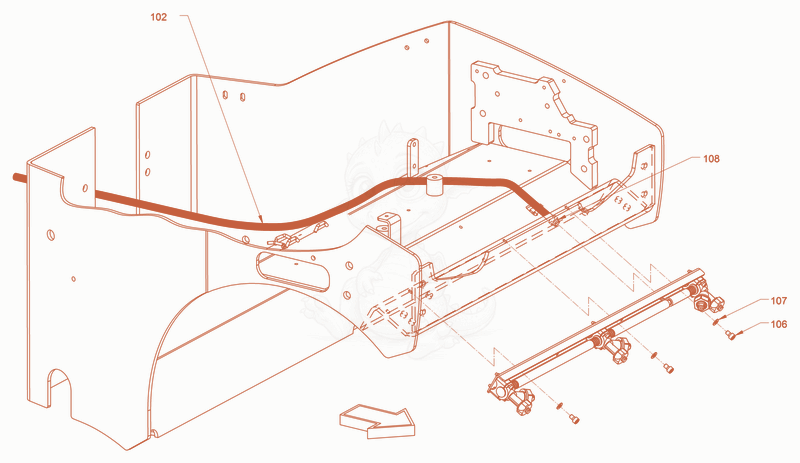

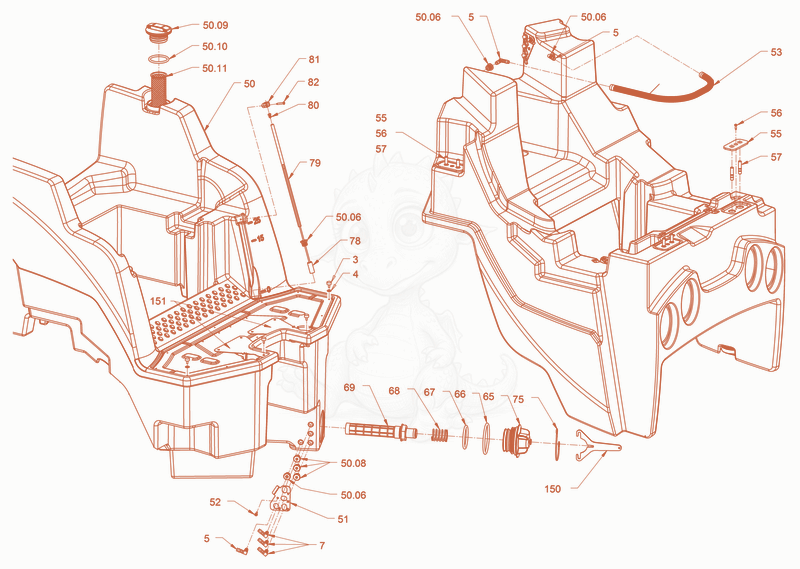

sprinkling
sprinkling
sprinkling
sprinkling
sprinkling
sprinkling

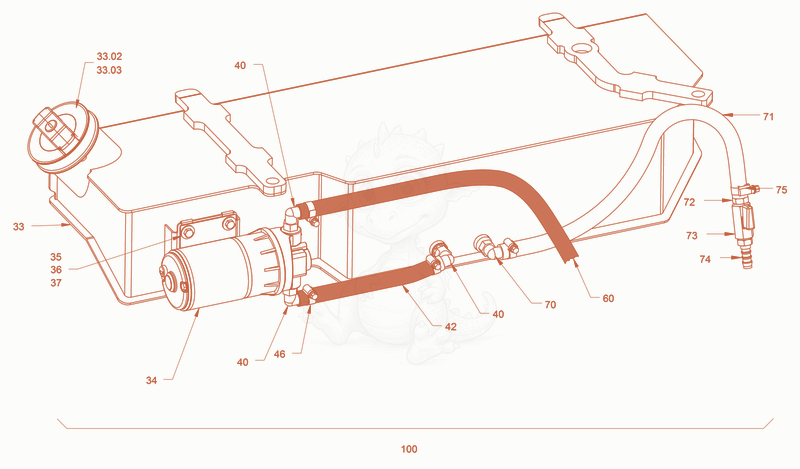

additive sprinkling
additive sprinkling
additive sprinkling

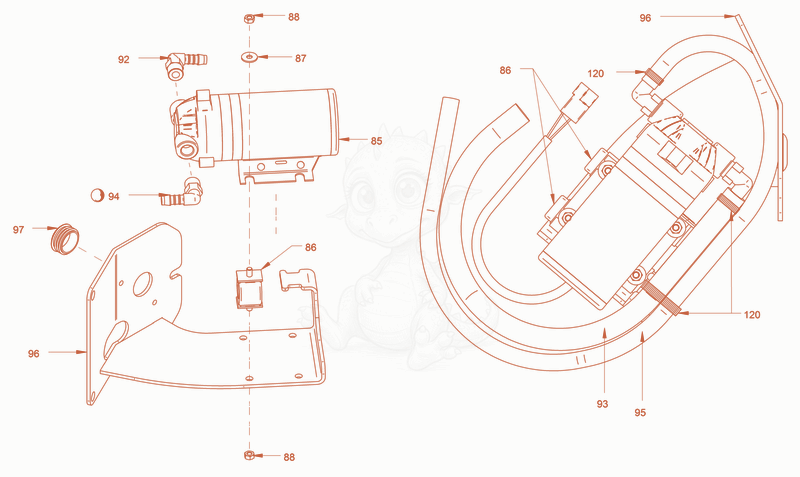

water pump

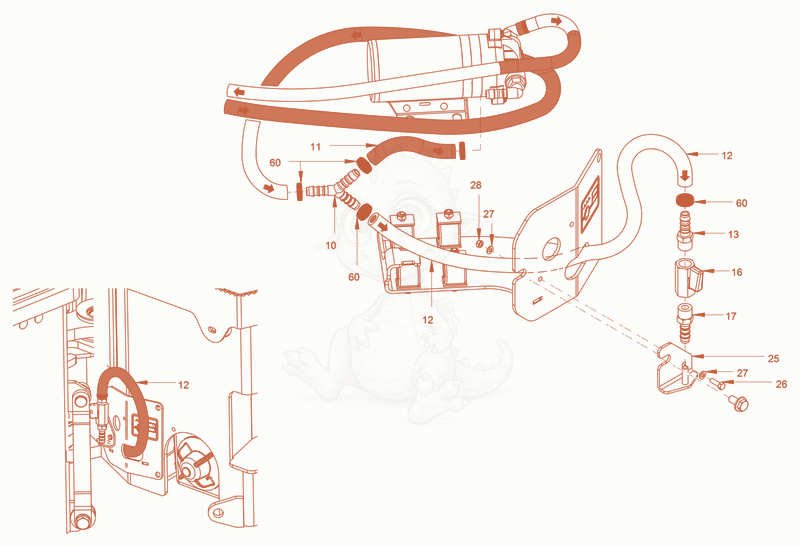

bypass oil filter
suspension (tires)
suspension
suspension (tires)

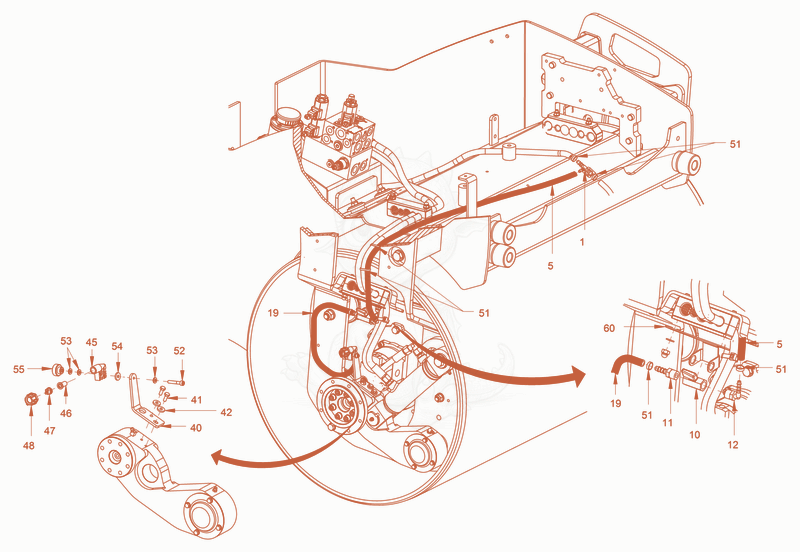

vibration drive
vibration drive

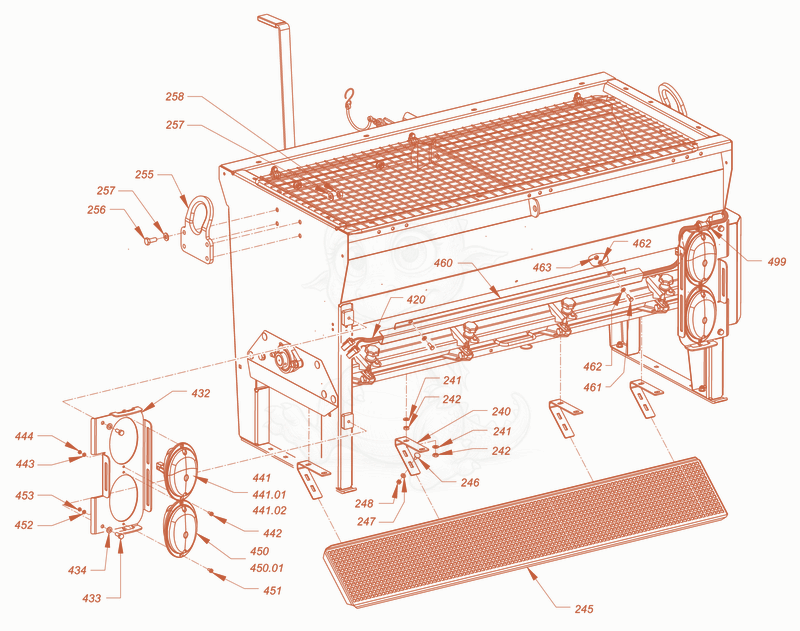

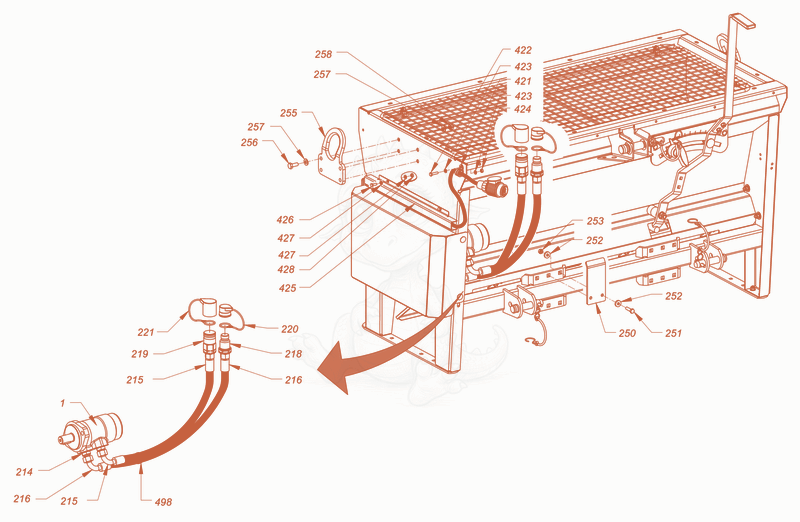

chip spreader
chip spreader
chip spreader
chip spreader
chip spreader
chip spreader
add-on device (chip spreader)
hydraulic system (chip spreader)
hydraulic system (chip spreader)
electrical system (chip spreader)

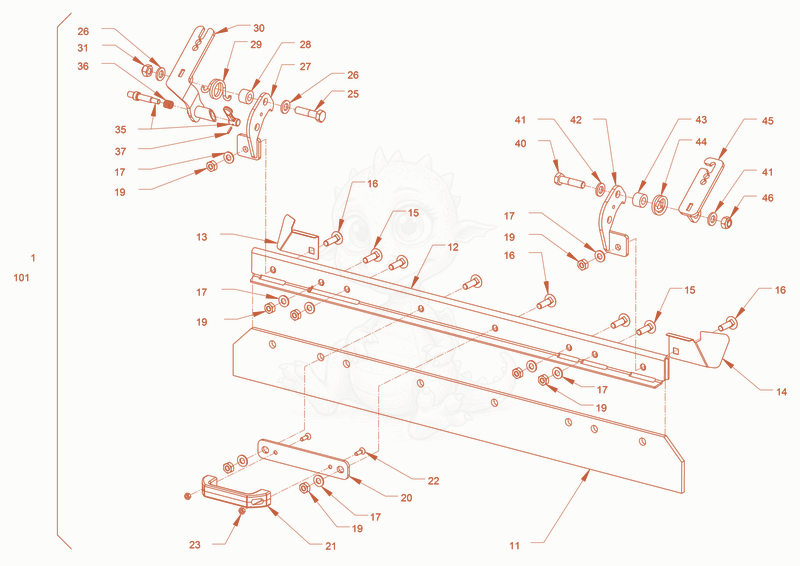

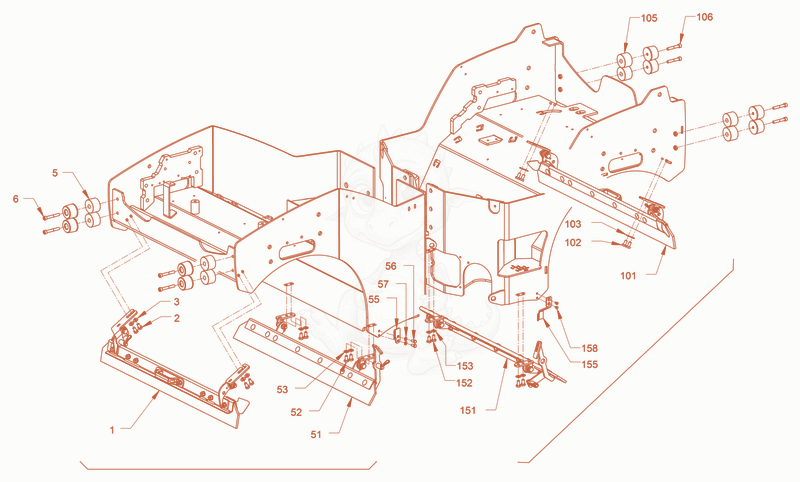

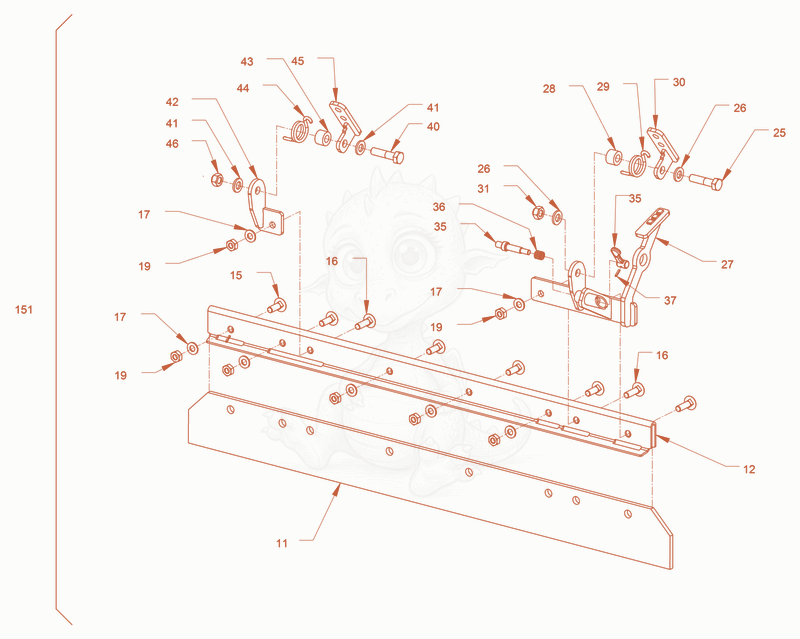

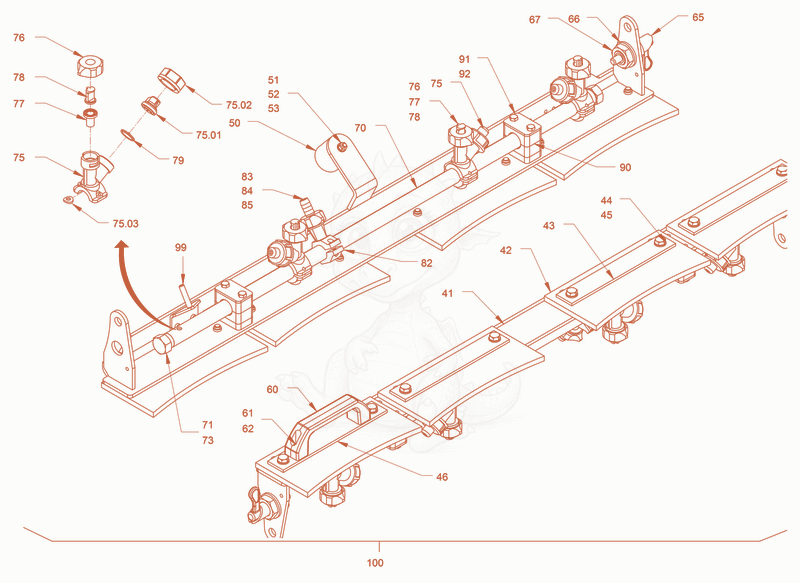

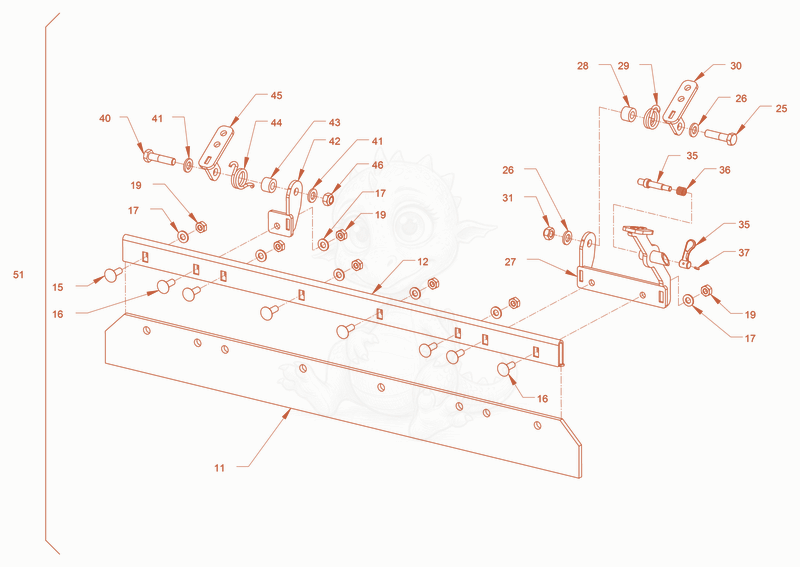

scraper
scraper
scraper
scraper

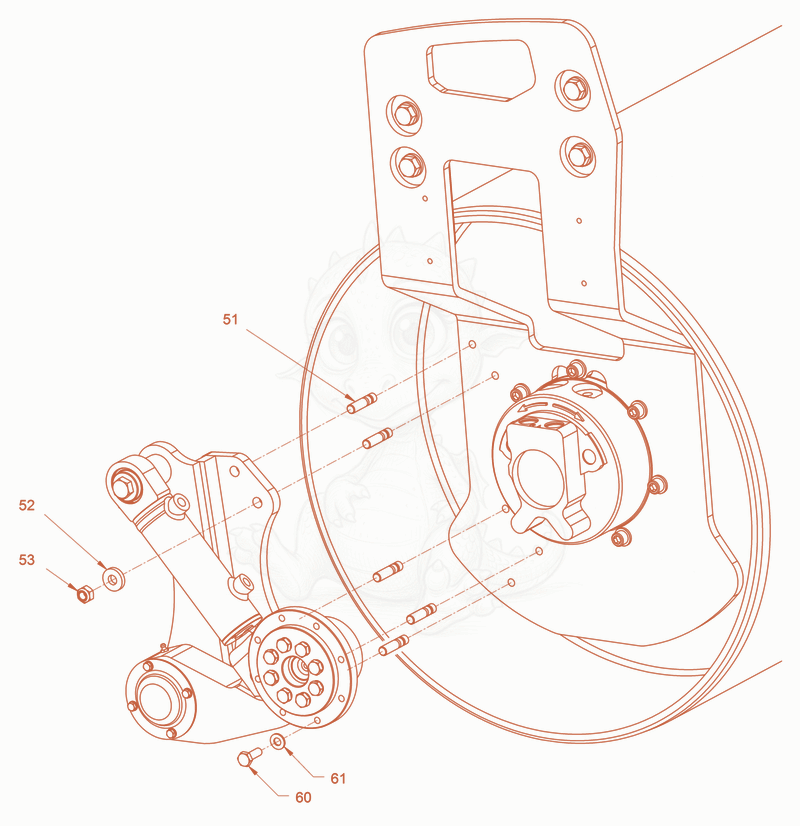

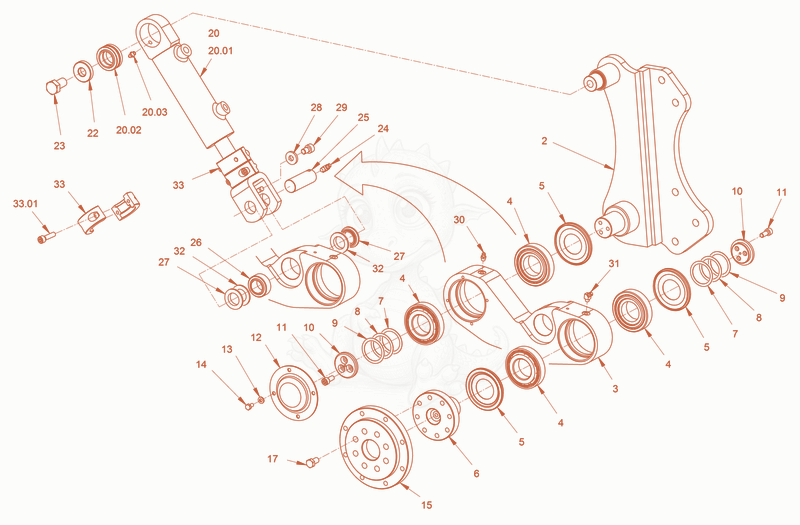

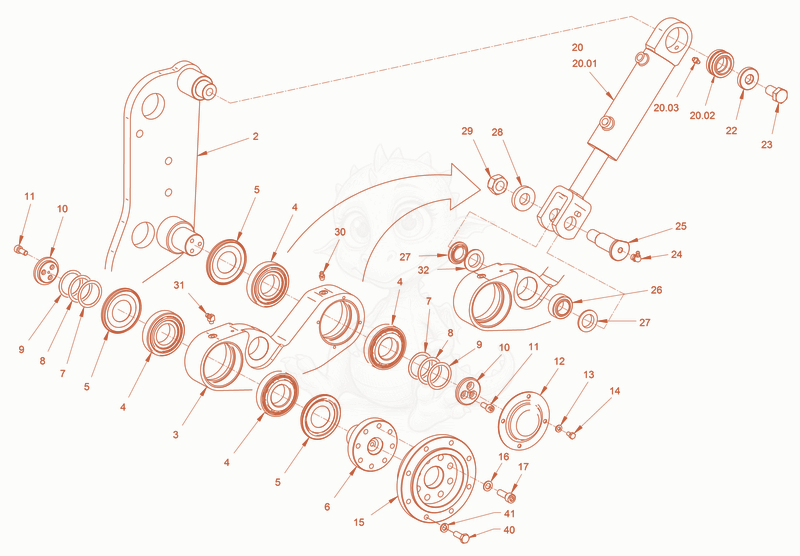

edge pressing and cutting device
edge pressing and cutting device
edge pressing and cutting device
edge pressing and cutting device
edge pressing and cutting device
edge pressing and cutting device
add-on pieces (edge pressing and cutting device)

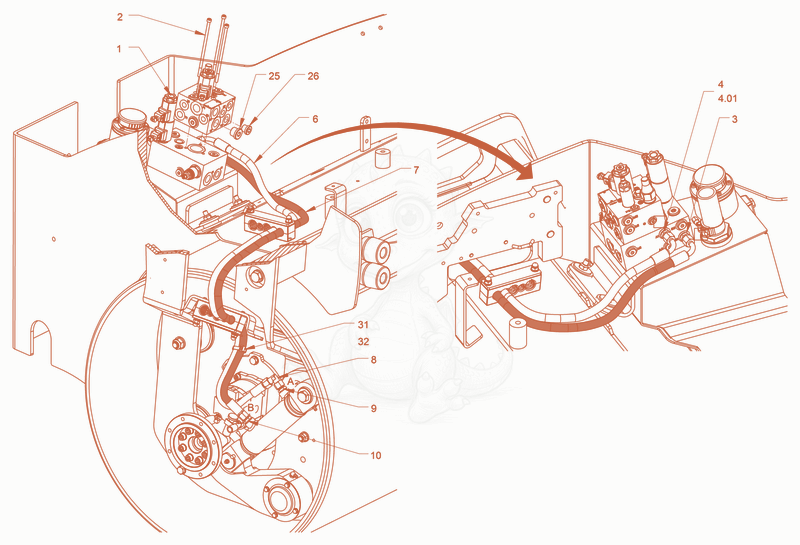

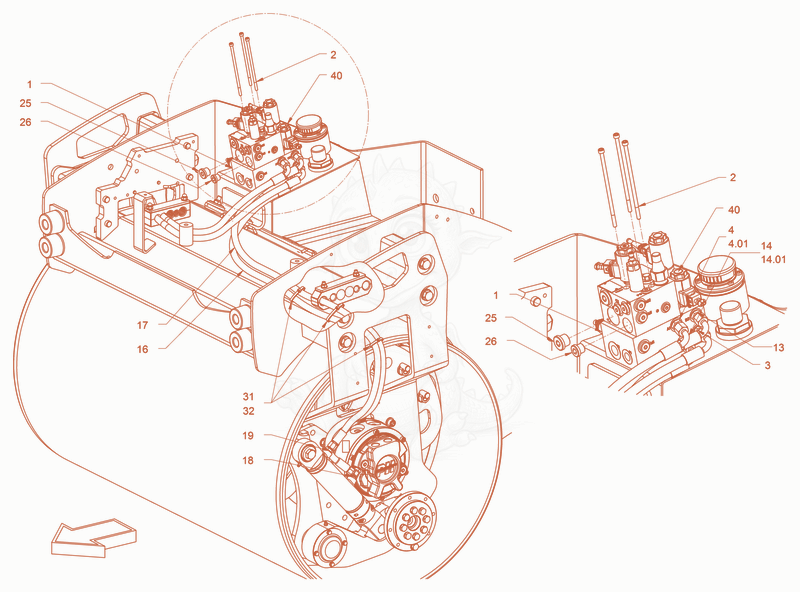

hydraulic system (edge pressing and cutting device)
hydraulic system (edge pressing and cutting device)
hydraulic system (edge pressing and cutting device)
sprinkling (edge pressing and cutting device)
sprinkling (edge pressing and cutting device)
electrical system (edge pressing and cutting device)
electrical system (edge pressing and cutting device)
electrical system(edge pressing andcutting device)

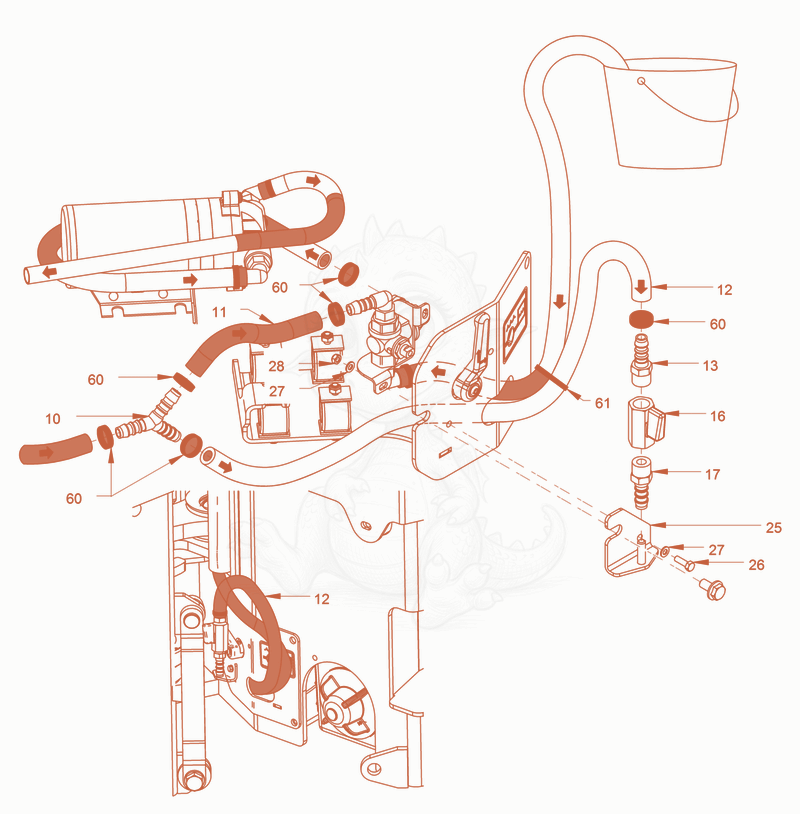

frost protection for sprinkling
frost protection forsprinkling
frost protection forsprinkling

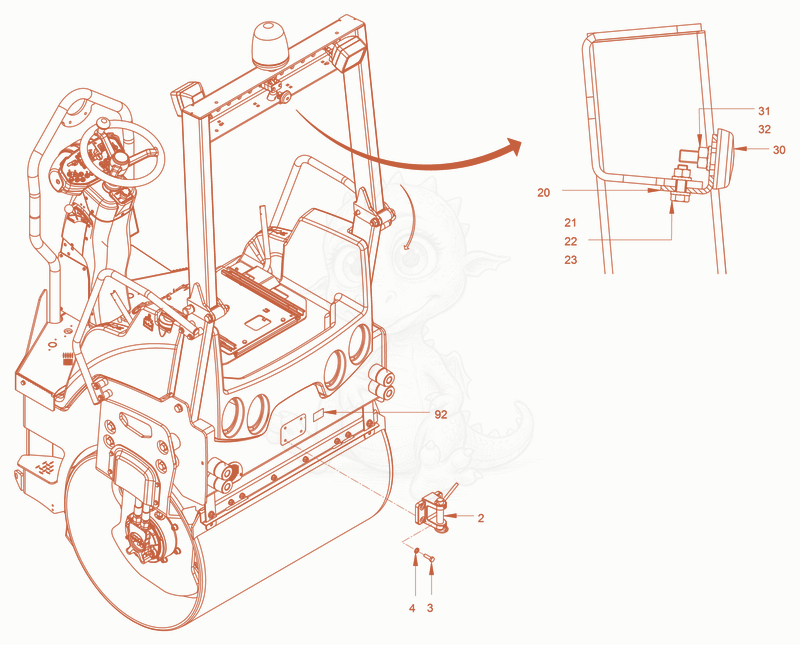

additional lighting, rops
roller drum lighting

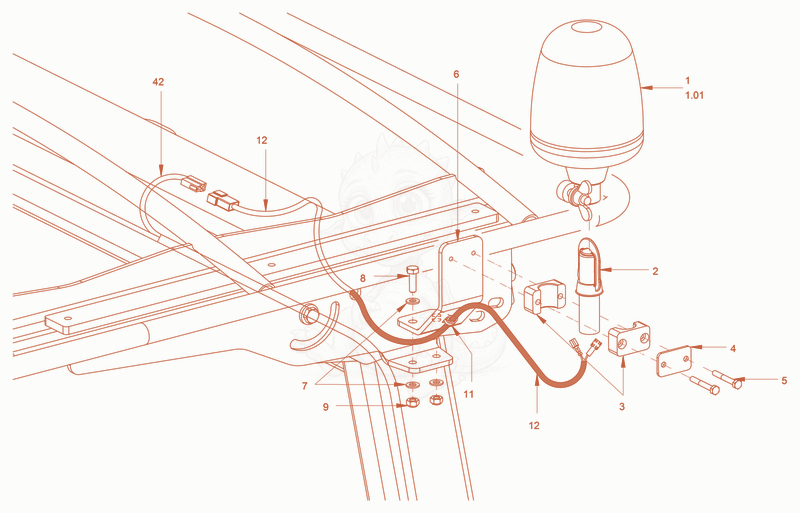

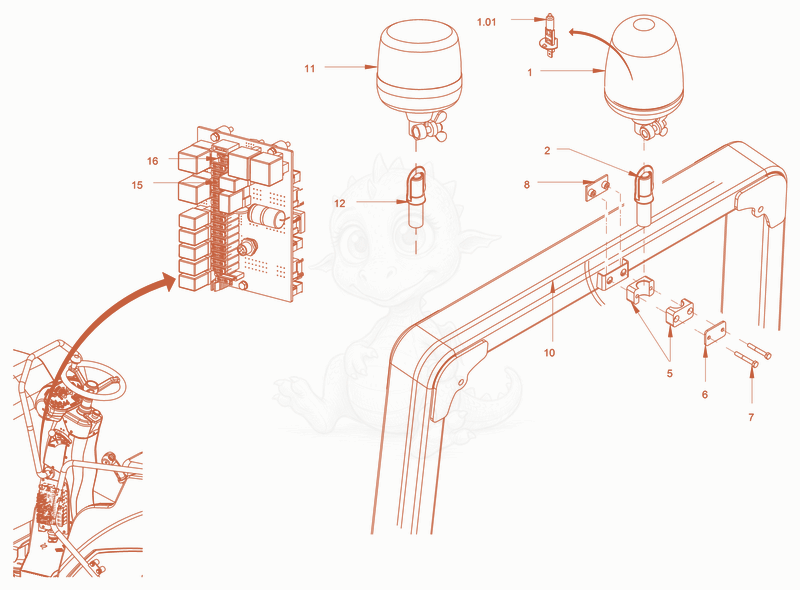

rotary beacon (rops)

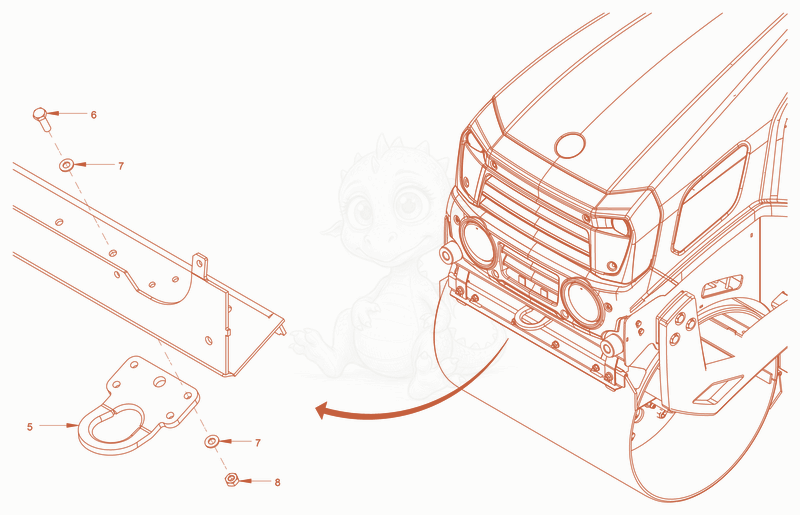

trailer coupling
trailer coupling
rotary beacon (rops)
warning light (sun roof)

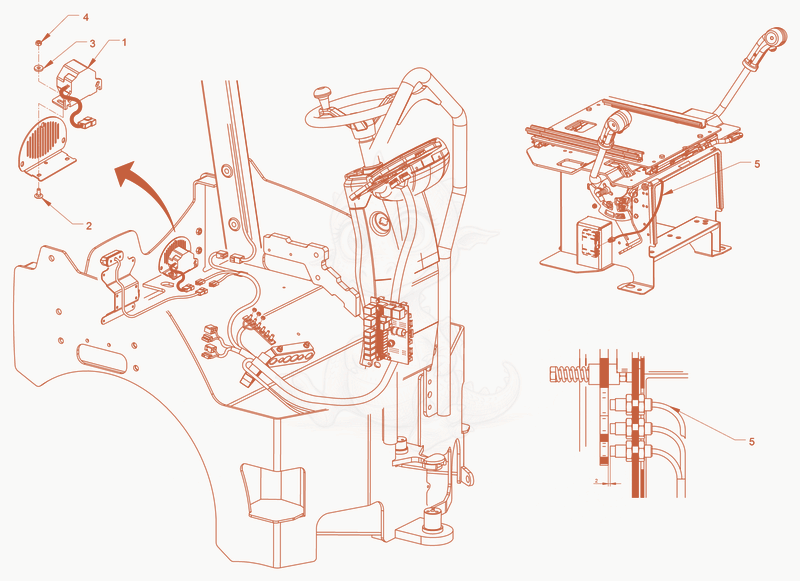

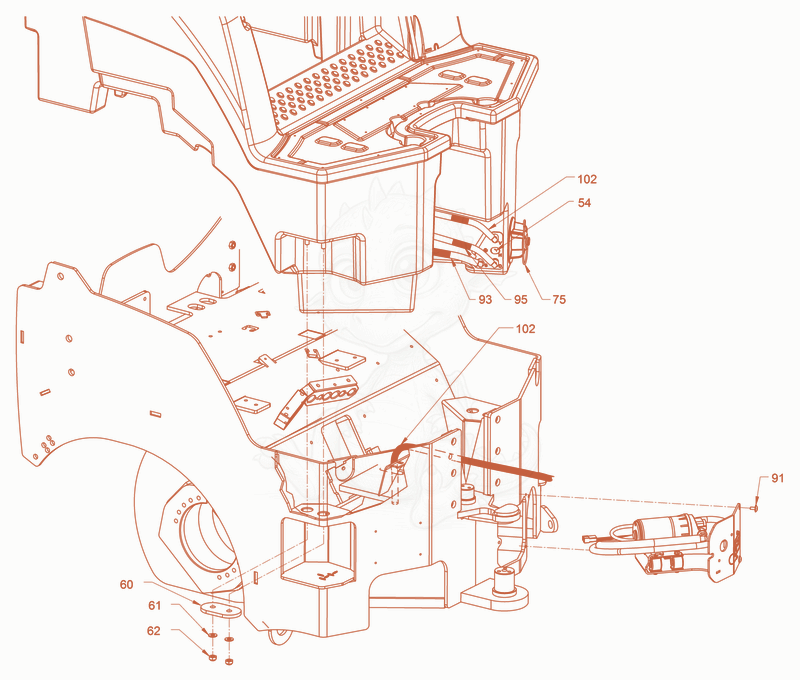

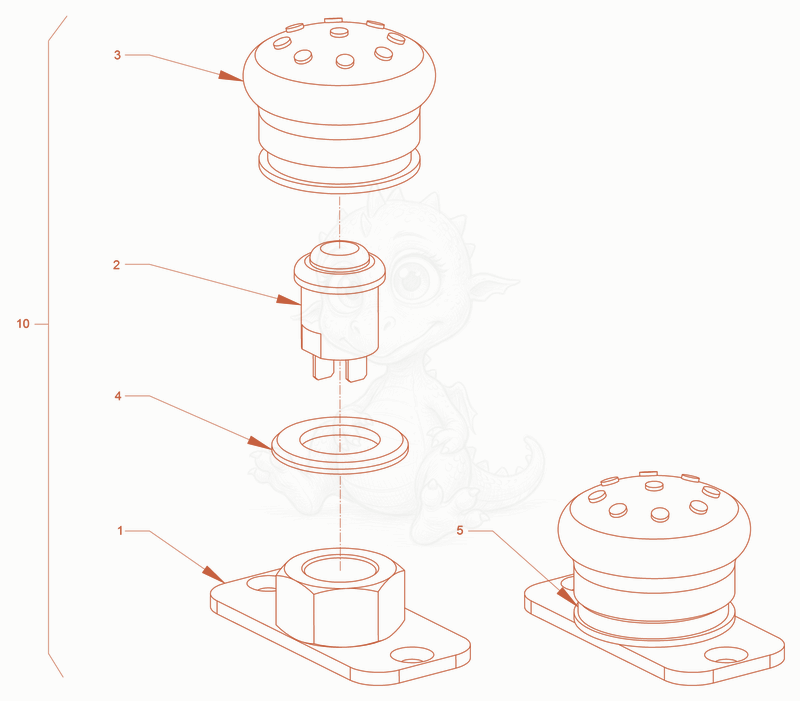

back-up alarm (back-up)
compactometer, hcm
compactometer, hcm
all-wheel lock
battery isolating switch
automatic engine stop
fire extinguisher
TÜV italy
TÜV italy
tüv
