RD24-100 C Tandem Rollers

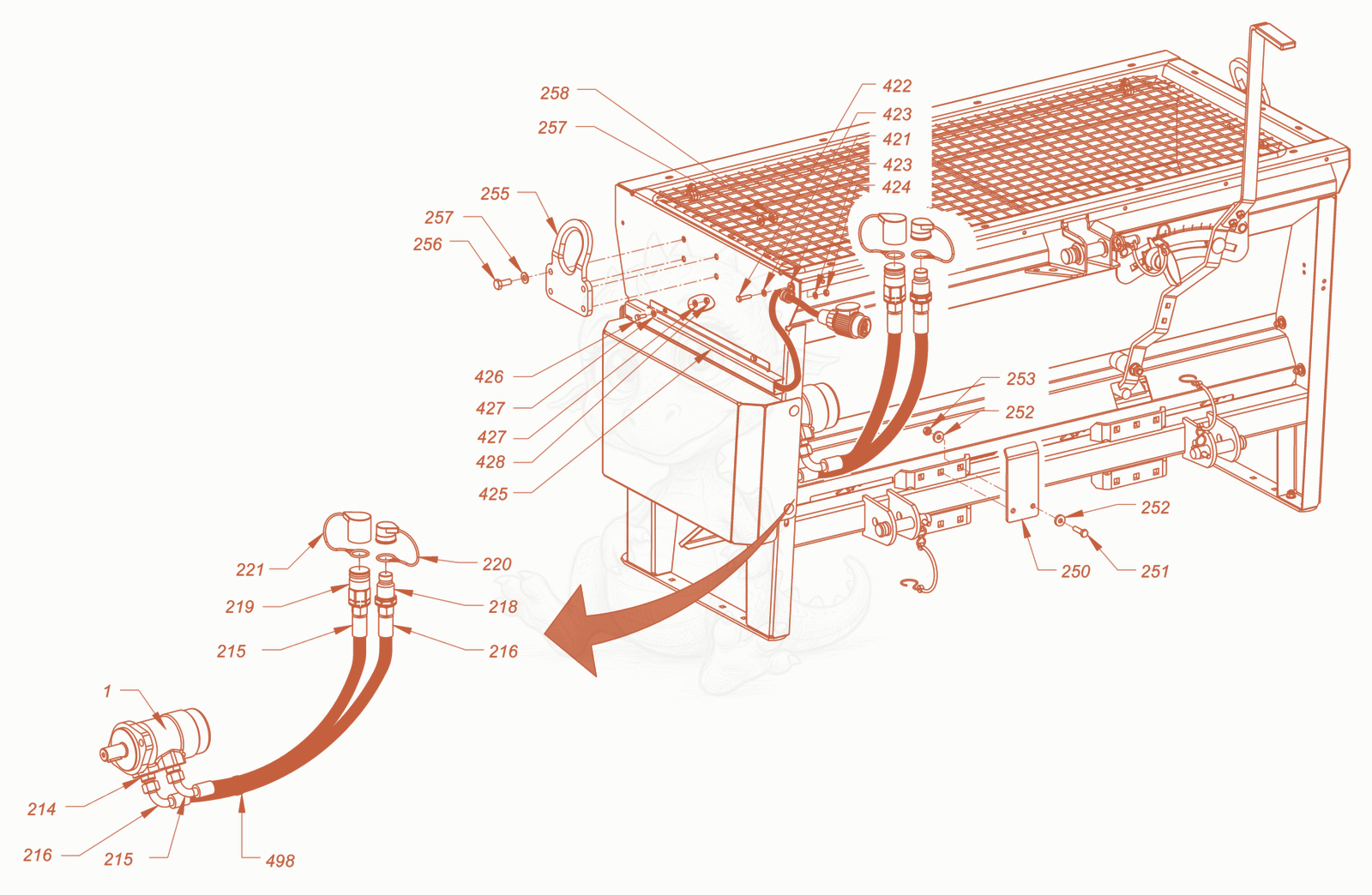

RD24-100C chip spreader Diagram

Exploded parts diagram of the chip spreader of a Wacker Neuson RD24-100C, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100013095Not stocked
    Hydraulic motor×1
  • 2145100013476
    $13.09
    Straight screwed socket - 5100013476×2
  • 2155100011445
    $99.65
    Flexible tubing - 5100011445×1
  • 2165100013018Not stocked
    Flexible tubing×1
  • 2185100011771Not stocked
    Coupling plug×1
  • 2195100011773Not stocked
    Coupling sleeve×1
  • 2205100011774Not stocked
    Protecting cap×1
  • 2215100011775Not stocked
    Protecting cap×1
  • 2505100013072Not stocked
    Bracket×1
  • 2515100013510
    $1.57
    Hexagon screw - 5100013510×2
  • 2525100013094
    $1.57
    Washer - 5100013094×4
  • 2535100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 2555100013076
    $385.10
    Towing loop - 5100013076×2
  • 2565100012617
    $2.84
    Hexagon screw - 5100012617×8
  • 2575100012967
    $1.57
    Locking washer - 5100012967×16
  • 2585100012547
    $1.49
    Hexagon nut - 5100012547×8
  • 4215100011546
    $17.45
    Pipe clip - 5100011546×2
  • 4225100013397
    $1.57
    Hexagon screw - 5100013397×2
  • 4235100012965
    $3.01
    Locking washer - 5100012965×4
  • 4245100012545
    $1.57
    Hexagon nut - 5100012545×1
  • 4255100013021Not stocked
    Silentbloc×1
  • 4265100012600
    $1.57
    Hexagon screw - 5100012600×2
  • 4275100012965
    $3.01
    Locking washer - 5100012965×4
  • 4285100012545
    $1.57
    Hexagon nut - 5100012545×2
  • 4985100013429
    $1.18
    Wire fastener - 5100013429×10
