RD24-100c

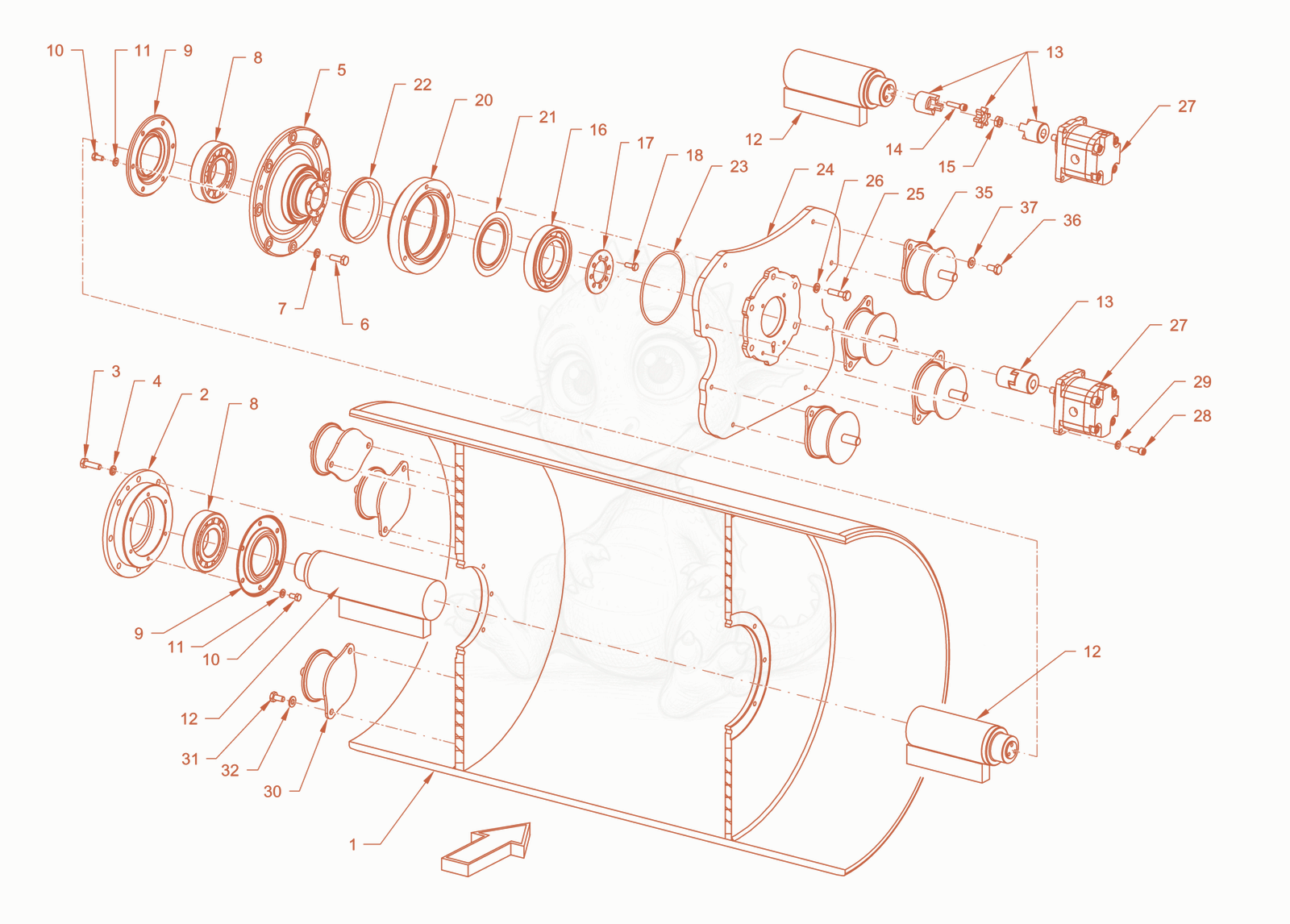

RD24-100C smooth roller drum with vibrator Diagram

15100011992Not stocked
Roller drum×1
25100012002
$489.93
Flange - 5100012002×1
35100012522
$1.49
Hexagon screw - 5100012522×12
45100012967
$1.57
Locking washer - 5100012967×12
55100012315
$935.46
Flange - 5100012315×1
65100012522
$1.49
Hexagon screw - 5100012522×12
75100012967
$1.57
Locking washer - 5100012967×12
85100012226
$328.70
Cylindrical roller bearing - 5100012226×2
95100012003
$45.83
Cover - 5100012003×2
105100012516
$1.57
Hexagon screw - 5100012516×12
115100012966
$1.57
Locking washer - 5100012966×12
125100053014Not stocked
unbalance shaft×1
135100012088
$338.34
Coupling - 5100012088×1
145100013511
$1.57
Cheese-head screw - 5100013511×3
155100011646
$4.72
Hexagon nut - 5100011646×1
165100012423
$199.73
Grooved ball bearing - 5100012423×1
175100012318
$15.15
Cover - 5100012318×1
185100012516
$1.57
Hexagon screw - 5100012516×8
205100012004
$709.71
Flange - 5100012004×1
215100012246
$51.19
Nilos ring - 5100012246×1
225100012247
$14.58
Sealing ring - 5100012247×1
235100011675
$2.79
O-ring seal - 5100011675×1
245100012005
$1,223.64
Driver - 5100012005×1
255100012524
$1.57
Hexagon screw - 5100012524×5
265100012967
$1.57
Locking washer - 5100012967×5
275100013043
$622.71
Gear motor - 5100013043×1
285100012754
$1.57
Cheese-head screw - 5100012754×4
295100012966
$1.57
Locking washer - 5100012966×4
305100011787
$53.72
Rubber metal buffer - 5100011787×6
315100012521
$1.57
Hexagon screw - 5100012521×12
325100012967
$1.57
Locking washer - 5100012967×12
355100011787
$53.72
Rubber metal buffer - 5100011787×4
365100012521
$1.57
Hexagon screw - 5100012521×8
375100012967
$1.57
Locking washer - 5100012967×8
