RD24-100 C Tandem Roller

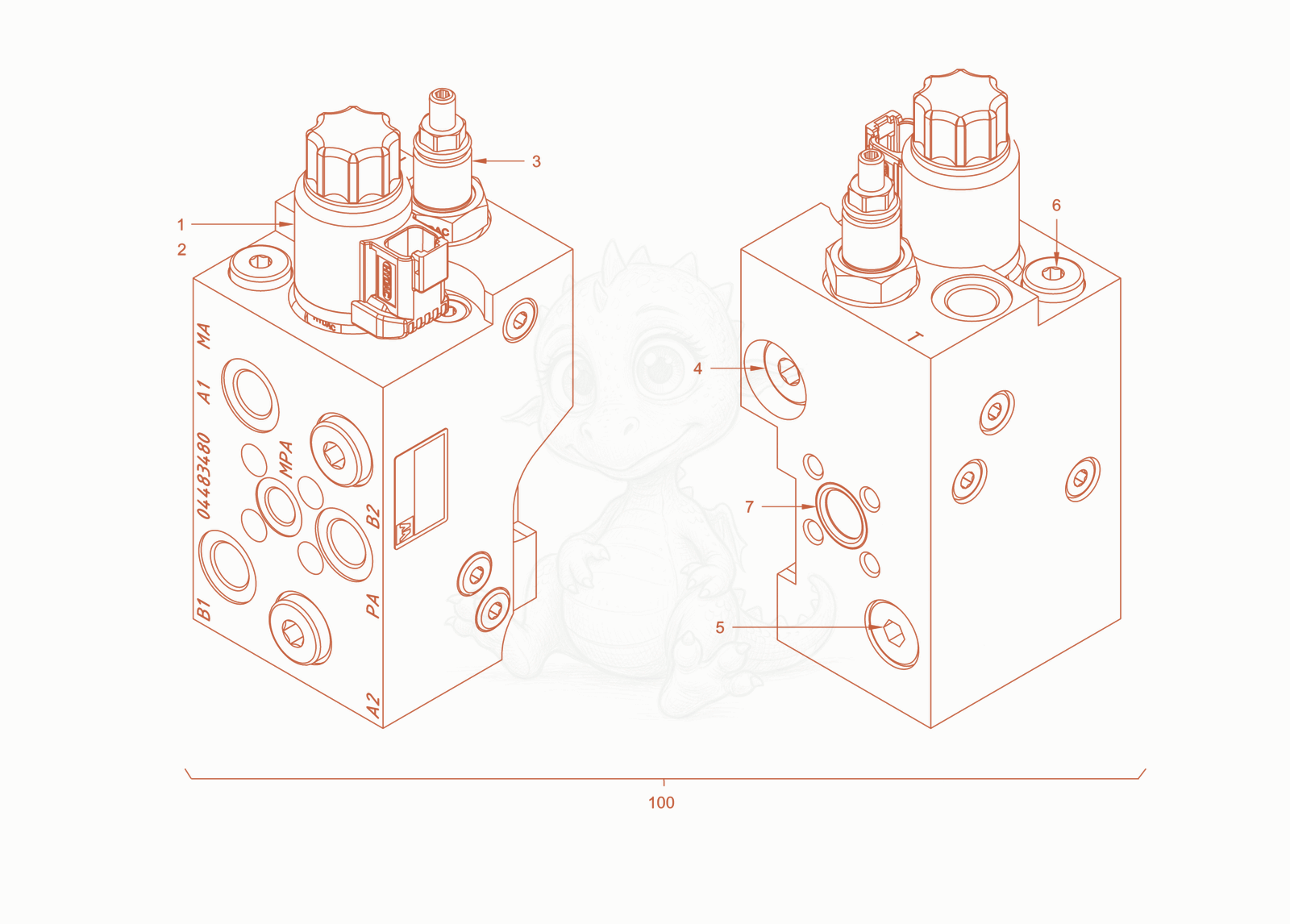

RD24-100CUS valve block Diagram

Exploded parts diagram of the valve block of a Wacker Neuson RD24-100CUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100050682Not stocked
    directional control valve×1
  • 25100052950Not stocked
    solenoid coil×1
  • 35100066928Not stocked
    directional control valve×1
  • 45100052955Not stocked
    locking screw×1
  • 55100066936Not stocked
    directional control valve×1
  • 65100011608
    $6.37
    Screw plug - 5100011608×1
  • 75100052953Not stocked
    o-ring seal×1
  • 1005100063128Not stocked
    Valve block×1
