RD24-100o.3

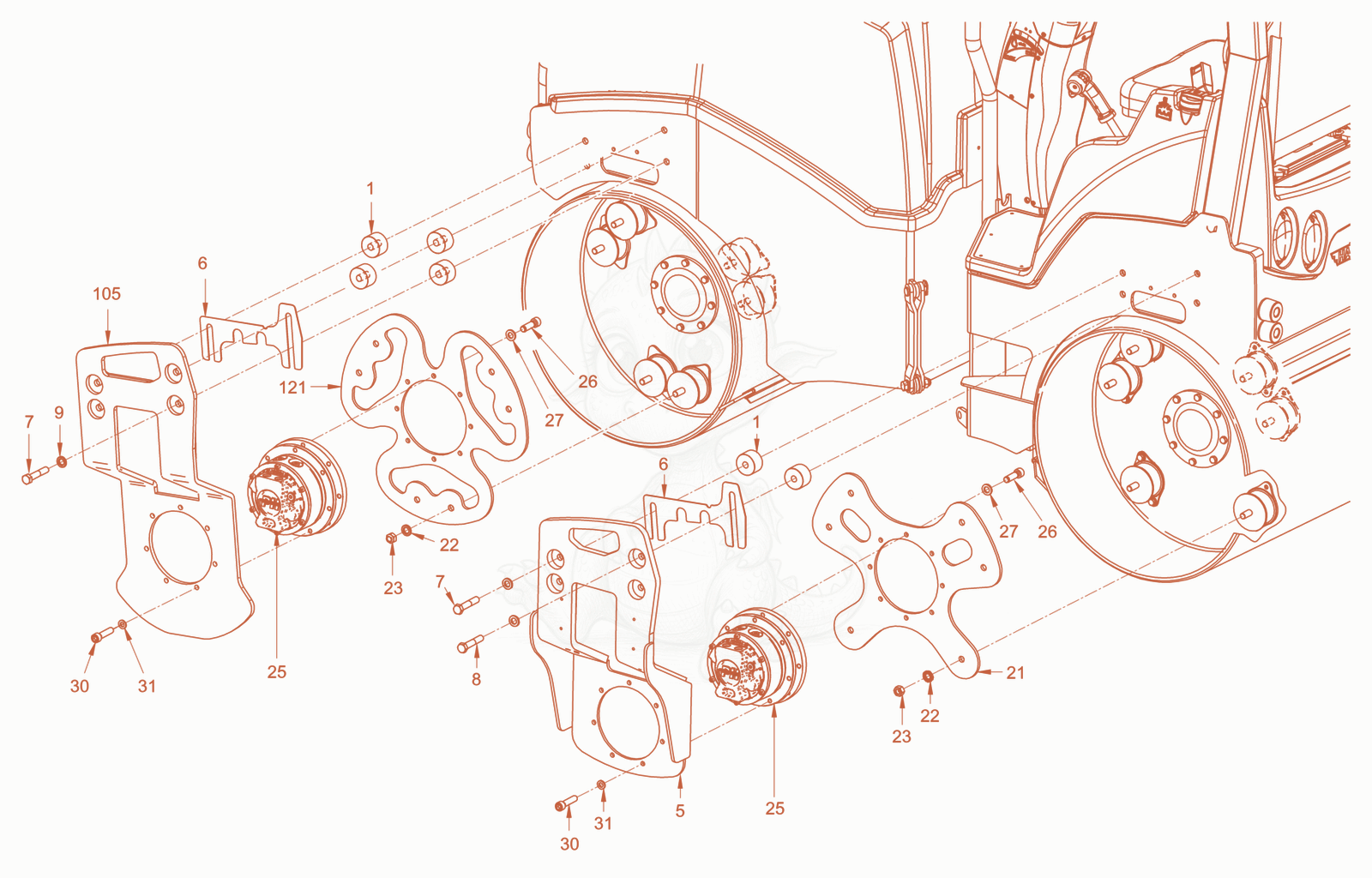

RD24-100O.3 mounting Diagram

Exploded parts diagram of the mounting of a Wacker Neuson RD24-100O.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100012350
    $78.89
    Spacer block - 5100012350×6
  • 55100013211
    $4,593.99
    Bow plate - 5100013211×1
  • 65100012027
    $47.26
    Metal plate - 5100012027×4
  • 75100013232
    $7.99
    Hexagon screw - 5100013232×6
  • 85100012502
    $29.72
    Hexagon screw - 5100012502×2
  • 95100012969
    $3.15
    Locking washer - 5100012969×8
  • 215100053013Not stocked
    driver×1
  • 225100012969
    $3.15
    Locking washer - 5100012969×12
  • 235100012405
    $3.37
    Hexagon nut - 5100012405×12
  • 255100052949Not stocked
    gear hub motor×2
  • 265100048107Not stocked
    cheese-head screw×16
  • 275100012968
    $1.57
    Locking washer - 5100012968×16
  • 305100048107Not stocked
    cheese-head screw×14
  • 315100012968
    $1.57
    Locking washer - 5100012968×14
  • 1055100012026
    $2,259.84
    Bow plate - 5100012026×1
  • 1215100053011
    $736.98
    driver - 5100053011×1
