RD24-100o.3

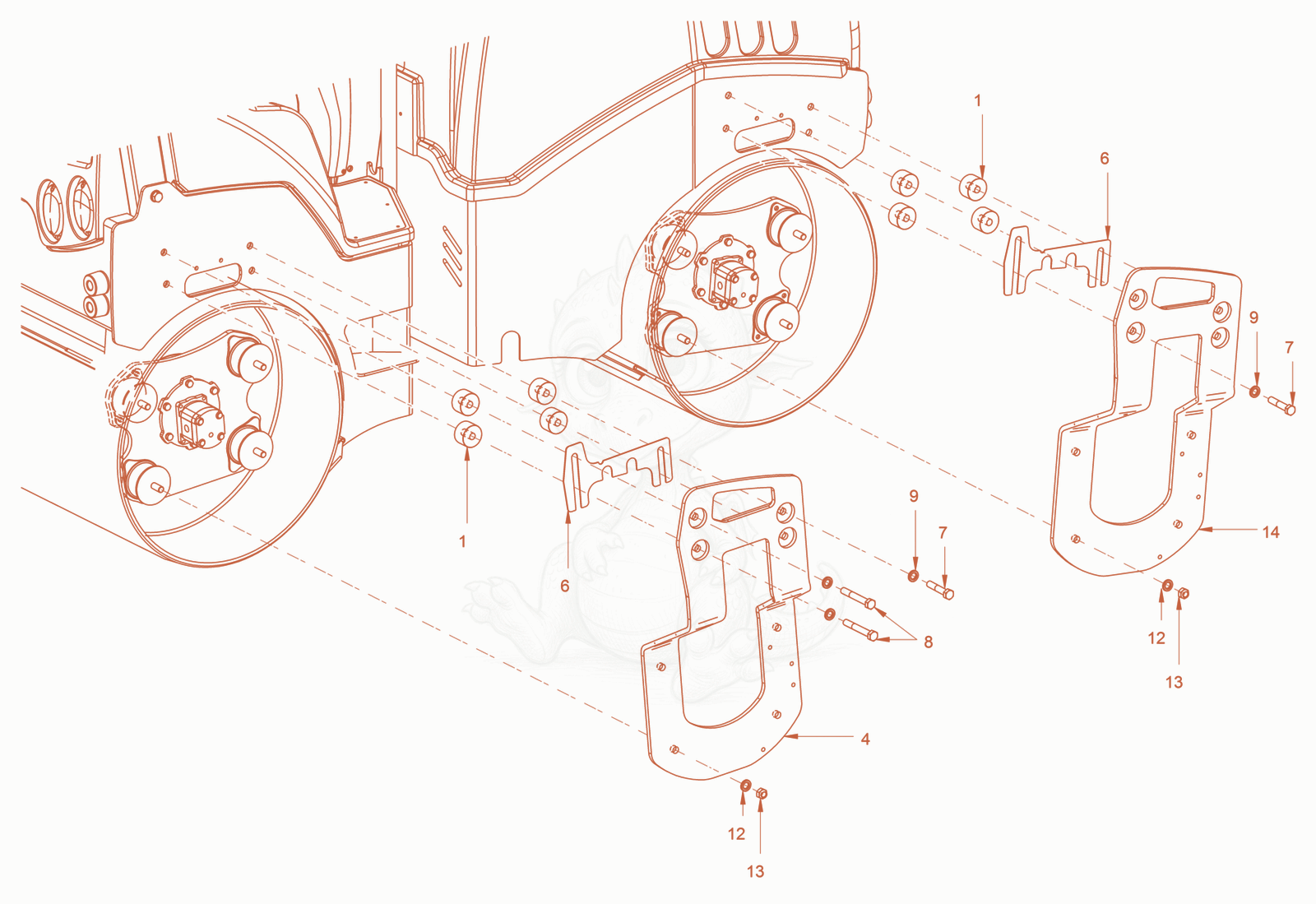

RD24-100O.3 suspension Diagram

Exploded parts diagram of the suspension of a Wacker Neuson RD24-100O.3, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15100012350
$78.89
Spacer block - 5100012350×8
45100012025
$2,958.48
Bow plate - 5100012025×1
65100012027
$47.26
Metal plate - 5100012027×4
75100013232
$7.99
Hexagon screw - 5100013232×6
85100012502
$29.72
Hexagon screw - 5100012502×2
95100012969
$3.15
Locking washer - 5100012969×8
125100012969
$3.15
Locking washer - 5100012969×8
135100012405
$3.37
Hexagon nut - 5100012405×8
145100012025
$2,958.48
Bow plate - 5100012025×1
